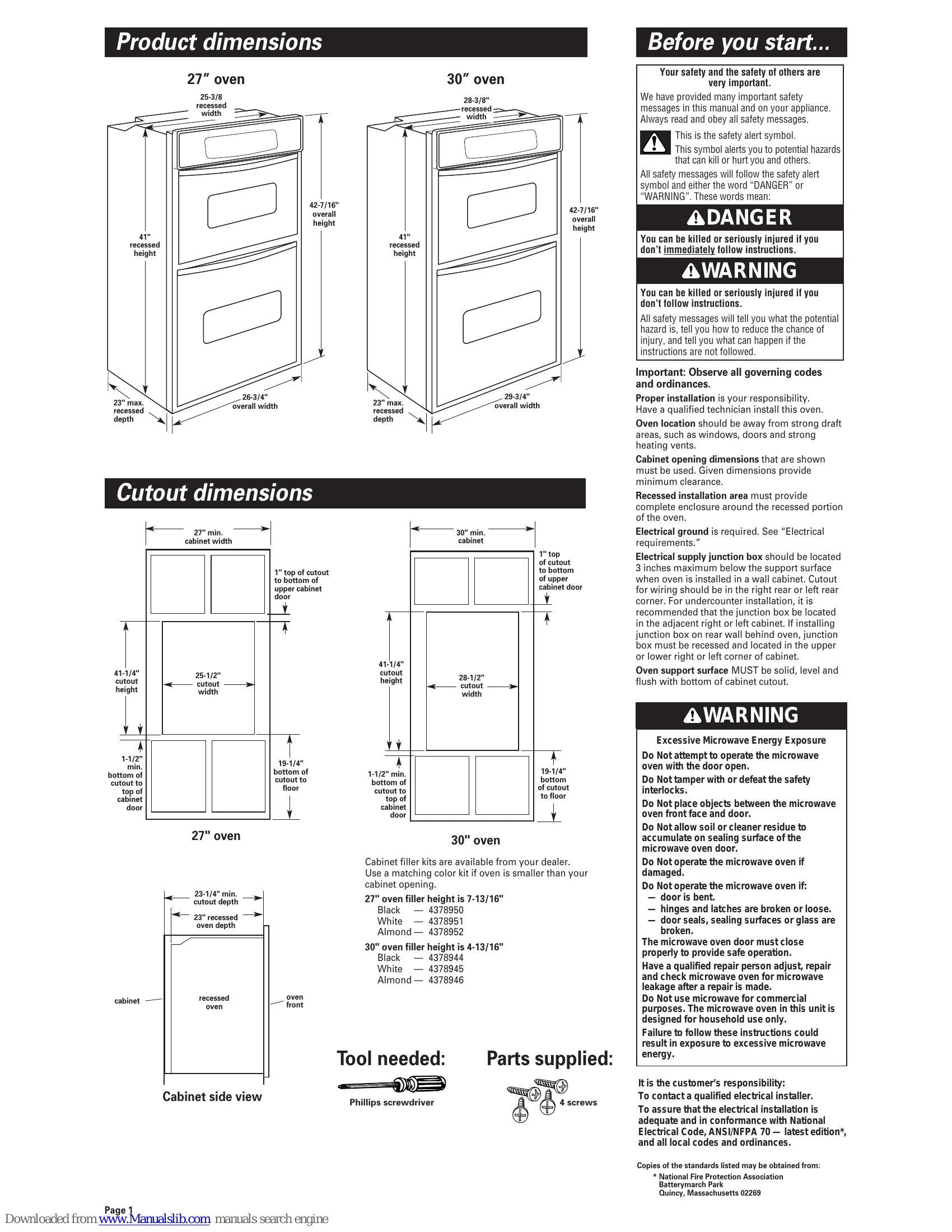

Installation Guide for Architect Series
Uploaded: Nov. 21, 2025, 9:13 p.m.
Warranty Information
Warranty information is not provided in this document.
Oven Operation
Preheating: The oven display will show the target temperature once preheated.
Baking/Broiling: Select the desired mode (BAKE, BROIL, CLEAN), set temperature and time if necessary, and press START. For broiling, ensure the oven door is closed.
Microwave Operation: Fill a microwave-safe container with water. Set cook time and press START/ENTER. The microwave will stop when the door is opened during cooking.
Stopping Operation: Press the CANCEL pad to stop any cooking cycle.
Troubleshooting and error codes
| If oven does not operate: | If you need service: |
|---|---|
| Check that circuit breaker is not tripped or house fuse blown. See Use and Care Guide for troubleshooting list. | Maintain the quality built into your built-in oven by calling an authorized service company. To obtain the name and number of an authorized service company: Contact the dealer from whom you purchased your built-in oven; or Look in the Yellow Pages of your telephone directory under "Appliances - Household - Major - Service and Repair" for an authorized service company; or Call the Consumer Assistance Center. The toll-free number is listed in your Use and Care Guide. When you call, you will need: The built-in oven model number. The built-in oven serial number. Both numbers are listed on the model/serial rating plate, located on the microwave oven frame. |
