Manual for 30" (78.2 CM) TOUCH ACTIVATED ELECTRONIC INDUCTION COOKTOP USER GUIDE

Name: Manual for 30" (78.2 CM) TOUCH ACTIVATED ELECTRONIC INDUCTION COOKTOP USER GUIDE
Brand: KitchenAid
Availability: InStock

Brand: KitchenAid

Category: Electric Cooktop

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:16 p.m.

Warranty Information

Refer to the manual or contact KitchenAid for specific warranty information.

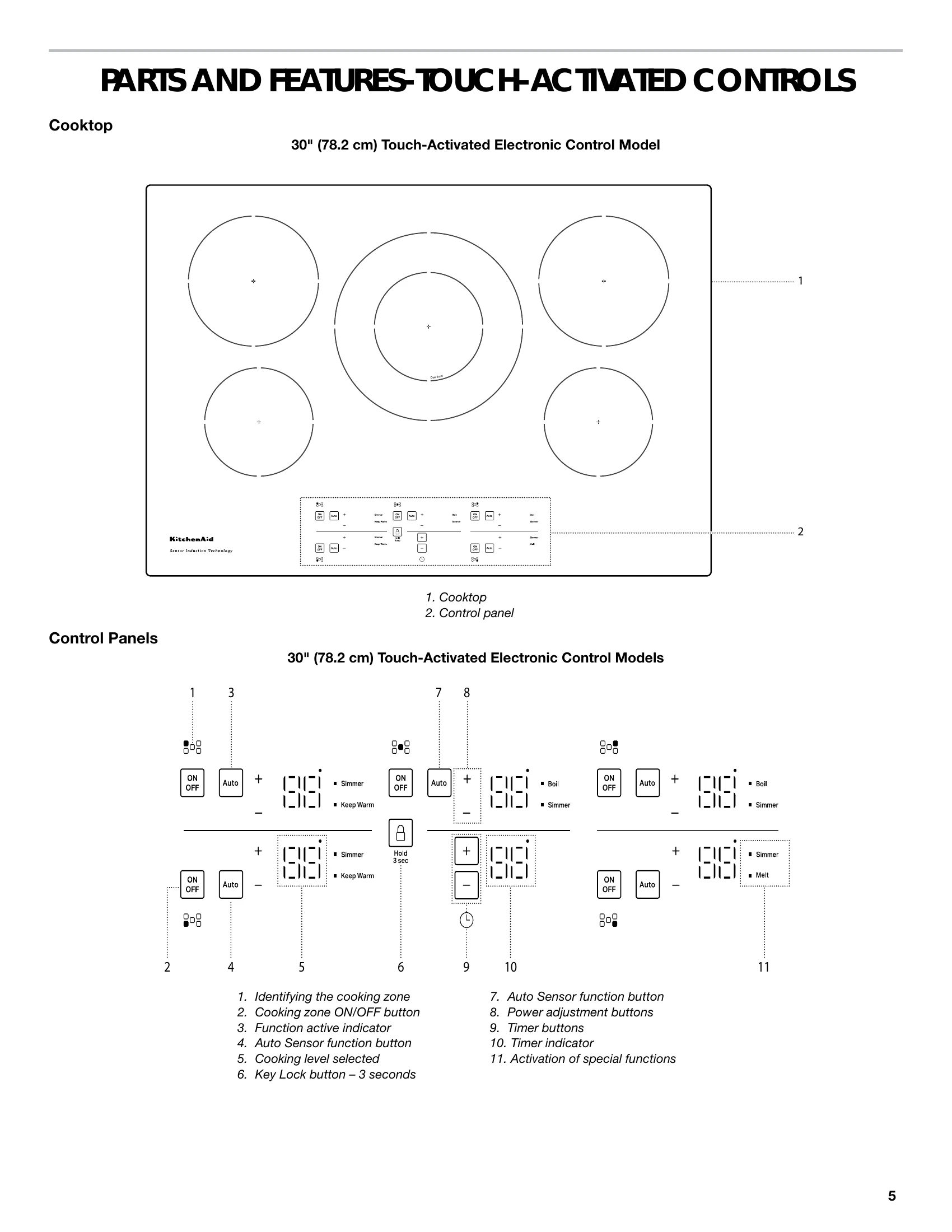

Daily Use: To turn on a cooking zone, press ON/OFF for one second. A dash will appear. Use +/- buttons to adjust power level (1-9). "P" indicates Boost. Lock controls by holding "Key Lock" for 3 seconds. Use Timer by pressing +/- to set time (up to 99 mins), countdown starts automatically. Functions like Auto, Melt, Simmer, Boil, and Keep Warm can be activated via the "Auto" button or dedicated function buttons. Deactivate zones by pressing ON/OFF. Deactivate functions by pressing ON/OFF or "Auto" until a dash appears.

Troubleshooting and error codes

DISPLAY CODE	DESCRIPTION	POSSIBLE CAUSES	SOLUTION
F0E1	Cookware is detected but it is not compatible with requested operation.	The cookware is not well positioned on the cooking zone, or it is not compatible with one or more cooking zones.	Press ON/OFF button twice to remove the F0E1 code and restore the functionality of the cooking zone. Then, try to use the cookware with a different cooking zone, or use different cookware.
F0EA	The control panel switches off because of excessively high temperatures.	The internal temperature of electronic parts is too high.	Wait for the hob to cool down before using it again.
F0E2, F0E4, F0E6, F0E8, FOEC, F1E1, F6E1, F7E5, F7E6	-	Disconnect the hob from the power supply. Wait a few seconds then reconnect the hob to the power supply. If the problem persists, call the service centre and specify the error code that appears on the display.	-
e.g. BOILING:	The hob does not allow a special function to be activated.	The power regulator limits the power levels in accordance with the maximum value set for the hob.	See paragraph "Power management".
e.g. P-5 [Power level lower than level requested]	The hob automatically sets a minimum power level to ensure that the cooking zone can be used.	The power regulator limits the power levels in accordance with the maximum value set for the hob.	See paragraph "Power management".
