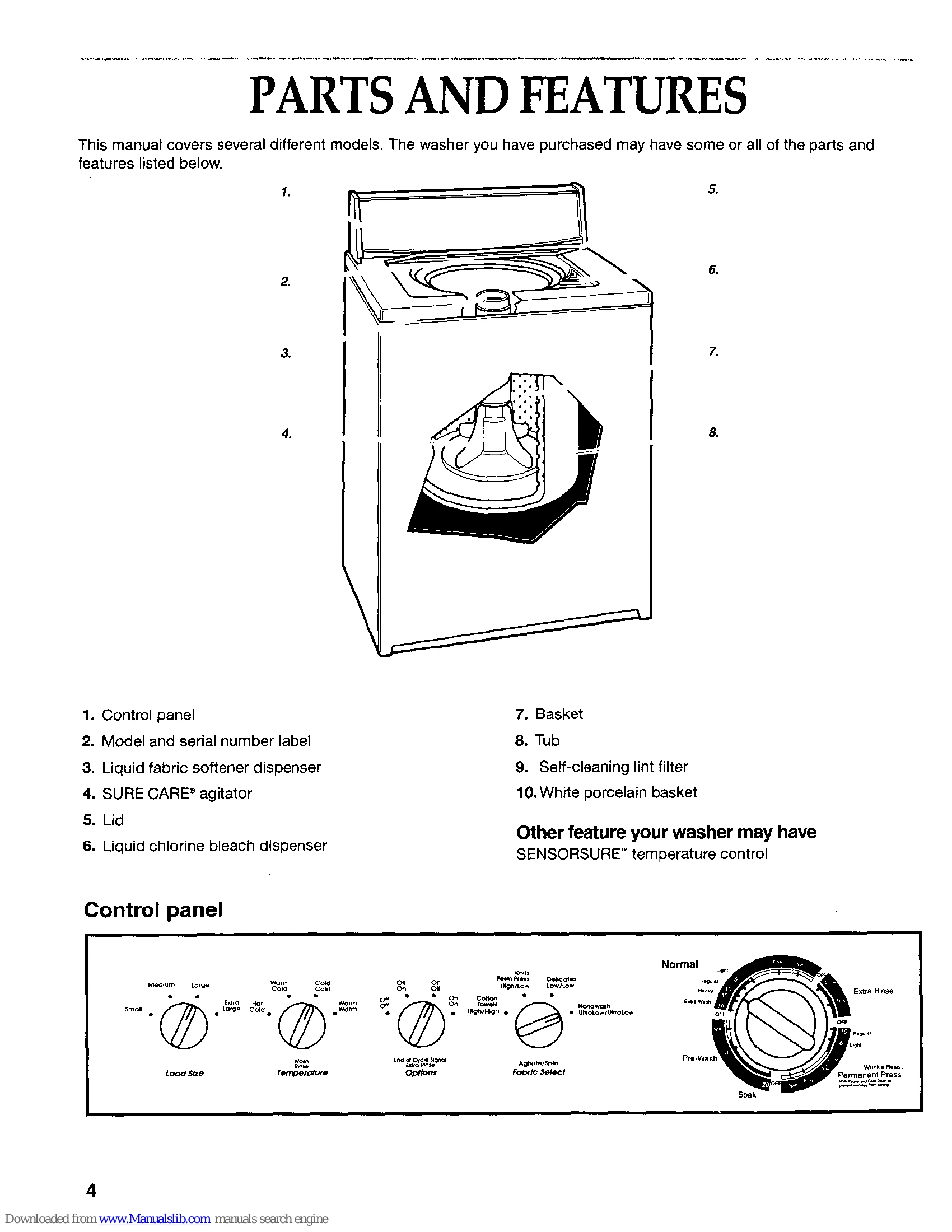

Manual for KAWS700G, KAWS750G, KAWS800G, KAWS850G 3950451C

Manual for KAWS700G, KAWS750G, KAWS800G, KAWS850G 3950451C

Brand: KitchenAid

Category: Washer

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:44 p.m.

Manual Publish Date: 1999-11-01

Warranty Information

This washer has a two-year full warranty covering parts and labor, with limited warranties for specific components.

Operating Your Washer

To start your washer, set the Cycle Control knob to your desired cycle and time, then pull it out. The washer will fill to the selected load size before starting the wash. During agitation, the agitator creates a rollover action for cleaning. The Cycle Control knob advances automatically. Pauses throughout the cycle are normal.

Key Operations:

  • WASH: Includes fill, wash, and drain cycles.
  • RINSE: Includes fill, rinse, and spin cycles.
  • Selecting Cycles: Use the Cycle Control knob for wash cycles like Normal, Extra Wash, Wrinkle Resist/Permanent Press, Delicate, Handwashables, Soak, and Pre-Wash.
  • Load Size and Temperature: Use the LOAD SIZE selector and TEMPERATURE selector to match your load.
  • Optional Features: EXTRA RINSE and END OF CYCLE SIGNAL may be available.

Troubleshooting and error codes

Problem Possible Causes & Solutions
Washer won't fill, rinse or agitate
  • Power cord plugged in?
  • Cycle Control knob aligned and pulled out?
  • Water inlet valve screens clogged?
  • Hot and cold water faucets turned on?
  • Water inlet hose kinked?
  • Water level appears low (normal for this model)?
Washer stops
  • Power cord plugged in?
  • Cycle Control knob aligned and pulled out?
  • Water inlet valve screens clogged?
  • Hot and cold water faucets turned on?
  • Water inlet hose kinked?
  • Power at the plug?
  • Fuse blown or circuit breaker open?
  • Extension cord used (should not be)?
  • Normal pause in Permanent Press or Hand Washables cycle?
  • Washer overloaded?
Washer won't drain or spin
  • Drain hose clogged or too high?
  • Lid open?
  • Excessive sudsing (too much detergent)?
  • Low voltage?
Washer continues to fill or drain, or cycle seems stuck
  • Top of drain hose lower than water level in washer?
  • Drain hose fit too tightly in standpipe or taped (needs air gap)?
Washer makes noise
  • Load balanced and washer level?
  • Yellow shipping strap removed?
  • Gears engaging or agitator clicking (normal noises)?
Washer leaks
  • Fill hoses tight and washers seated?
  • Drain hose clamp installed?
  • Sink or drain clogged?
  • Water deflecting off tub ring or load (center tub)?
  • Washer level?
  • Household plumbing leaks?
Washer basket is crooked
  • Basket pulled forward during loading?
  • Load balanced and washer level?
  • Basket moves while washing (normal)?
Agitator operation
  • Top of agitator loose or moves in one direction (normal)?
Dispensers clogged or bleach leaking
  • Manufacturer's directions followed for adding detergent/softener?
  • Fabric softener diluted?
  • Powdered/color-safe bleach in liquid bleach dispenser (use basket directly)?
Load too wet
  • Correct cycle for load and spin speed used?
  • Cold rinse used (leaves loads wetter)?
Residue or lint on load
  • Load properly sorted (lint givers/takers)?
  • Washer overloaded?
  • Paper/tissue left in pockets?
  • Enough detergent used?
  • Water colder than 70°F (21°C)?
Stains on load
  • Manufacturer's directions followed for detergent/softener?
  • Iron (rust) in water?
  • Load properly sorted (colors/whites)?
  • Washer unloaded promptly?
Load is wrinkled
  • Washer unloaded promptly?
  • Correct cycle used (Permanent Press, low spin)?
  • Washer overloaded?
  • Wash water warm enough?
  • Hot and cold water hoses reversed?
Load is tangled or twisted
  • Washer overloaded?
  • Items wrapped around agitator?
Gray whites, dingy colors
  • Load properly sorted?
  • Wash temperature too low?
  • Enough detergent or hard water issues?
  • Hot and cold water hoses reversed?
Garment damage
  • Sharp items removed from pockets?
  • Strings/sashes tied?
  • Items mended before washing?
  • Washer overloaded?
  • Chlorine bleach added properly (not directly on load)?
  • Manufacturer's care label instructions followed?
