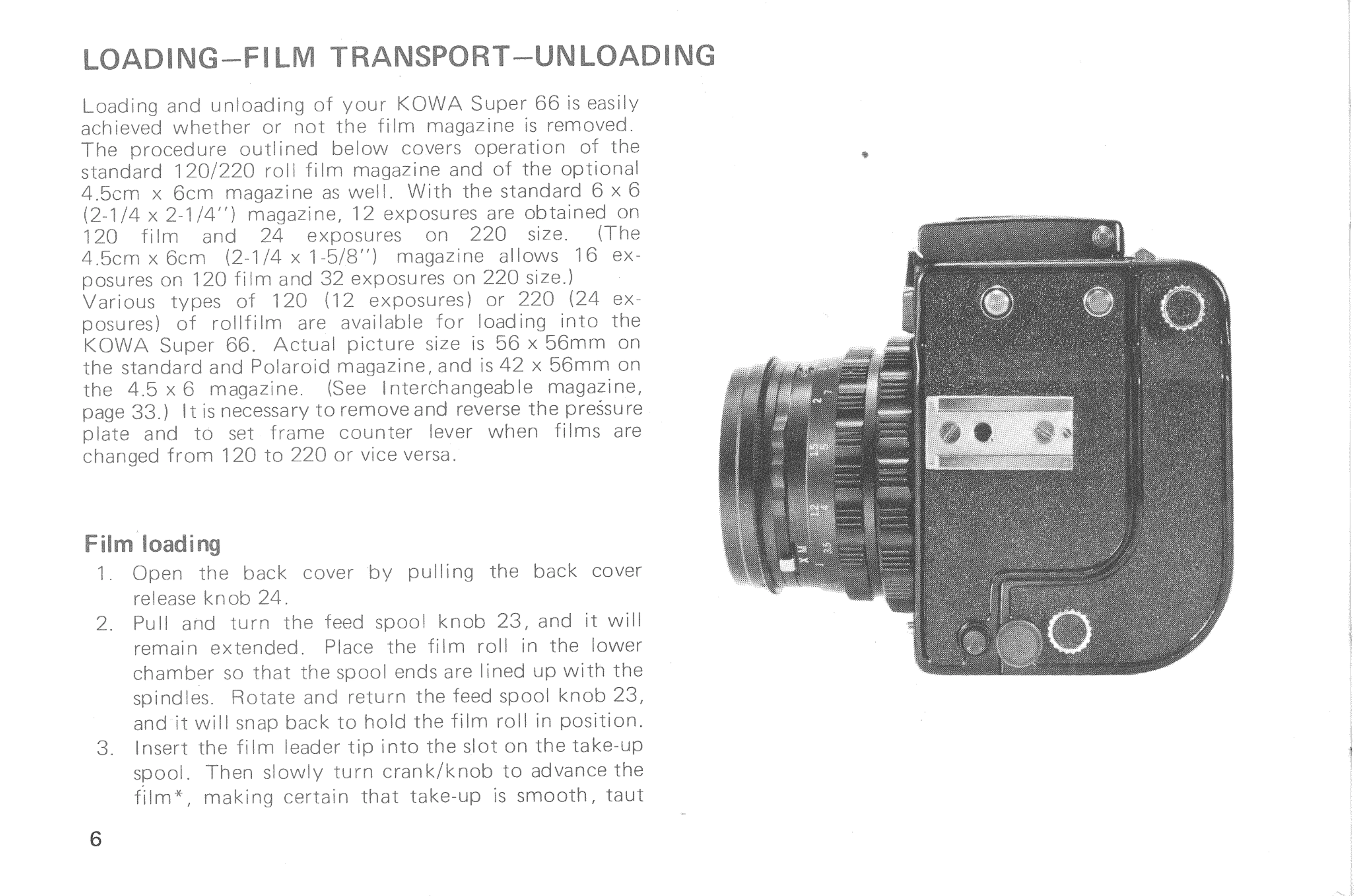

Film Loading:

  1. Open back cover (knob 24).
  2. Pull and turn feed spool knob (23), place film roll, align with spindles, and return knob to secure.
  3. Insert film leader into take-up spool slot. Turn crank/knob to advance film until start markings align with index points.
  4. Ensure pressure plate and frame counter are set correctly.
  5. Close back cover and advance film with crank/knob (approx. 6 turns) until resistance is felt. Frame counter should show "1".
  6. Insert film box end into holders.

Film Transport:

  • One full turn of the crank/knob advances film one frame, advances frame counter, cocks shutter, and returns mirror.
  • Double exposure prevention is incorporated; multi-exposure is possible.

Unloading:

  • After the last exposure, wind remaining film onto the take-up spool.
  • Remove film and seal it. Move empty spool to take-up position.
