Operation

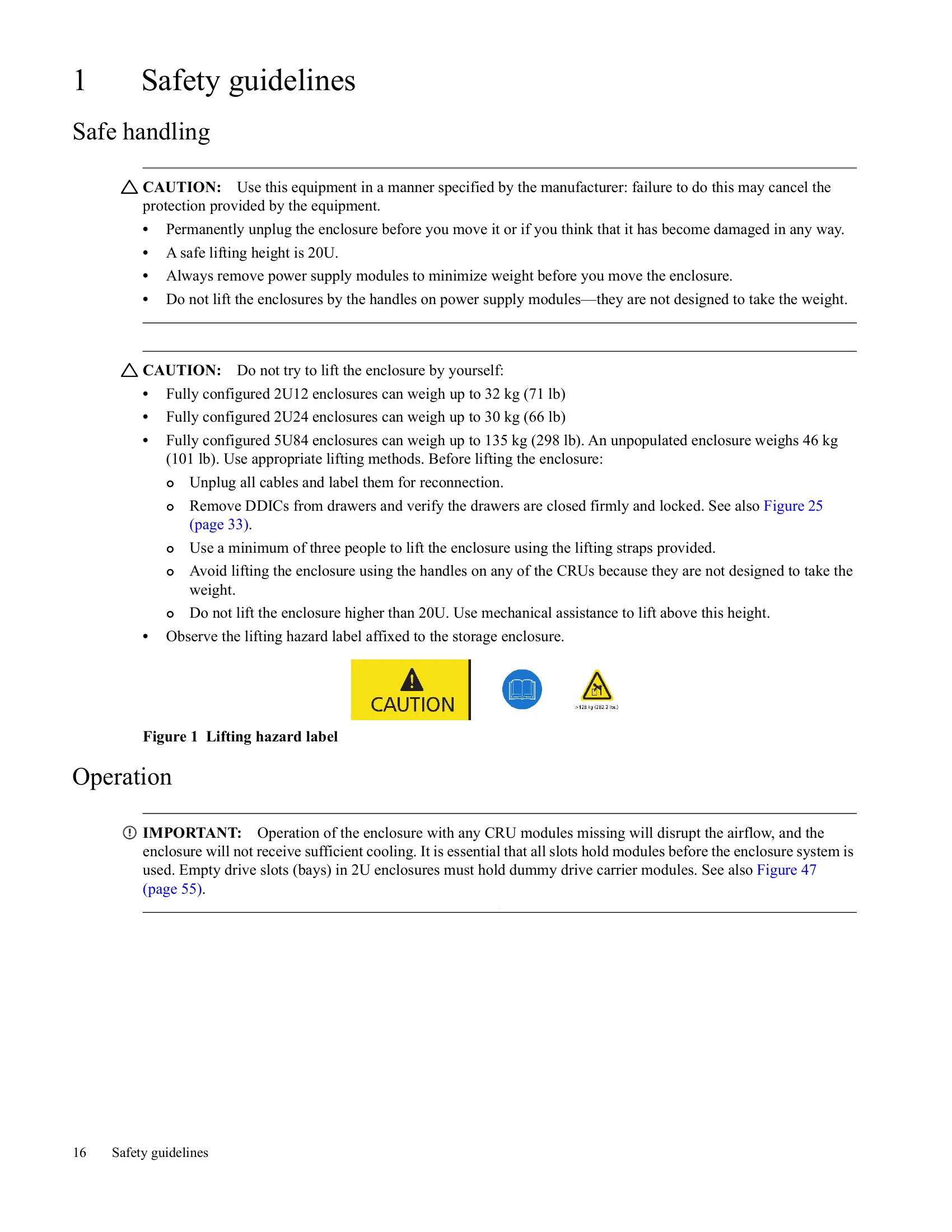

IMPORTANT: Operation of the enclosure with any CRU modules missing will disrupt the airflow, and the enclosure will not receive sufficient cooling. It is essential that all slots hold modules before the enclosure system is used. Empty drive slots (bays) in 2U enclosures must hold dummy drive carrier modules. See also Figure 47 (page 55).

Troubleshooting and error codes

Convention Element
Colored text Cross-reference links
Black, underlined text Email addresses
Colored, underlined text Website addresses
Bold text
  • Keys that are pressed
  • Text entered into a GUI element, such as a box
  • GUI elements that are clicked or selected, such as menu and list items, buttons, and check boxes
Italic text Text emphasis
Monospace text
  • File and directory names
  • System output
  • Code
  • Commands, their arguments, and argument values
  • Code variables
  • Command parameters
Monospace, italic text Emphasis of file and directory names, system output, code, and text entered at the command line
Monospace, bold text

CAUTION: Indicates that failure to follow directions could result in damage to equipment or data.

IMPORTANT: Provides clarifying information or specific instructions.

NOTE: Provides additional information.

TIP: Provides helpful hints and shortcuts.
