Manual for LCV5300-BN

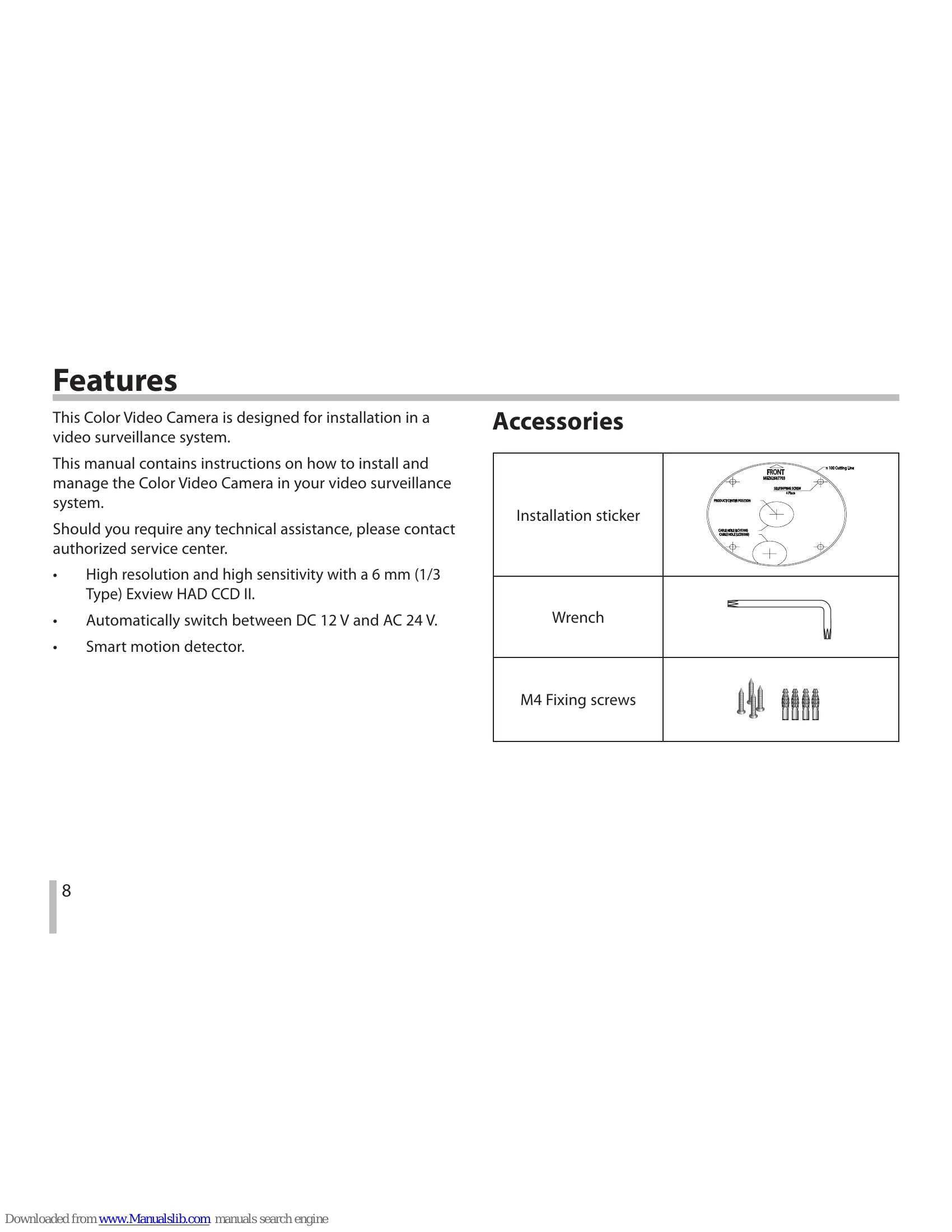

This manual provides instructions for installing and managing the LG Color Video Camera (LCV5300-BN/LCV5300-BP). Key features include high resolution and sensitivity, automatic switching between DC 12V and AC 24V power, and a smart motion detector. The manual details the camera's parts, connections, installation steps, and image adjustment procedures. It also covers menu operations for various settings such as exposure, white balance, day/night mode, motion detection, privacy masking, digital zoom, digital effects, sharpness, color, sync, user title, and system settings including factory reset.

1. Mount the camera using the provided bracket and template.
2. Pass the connection cable through the ceiling.
3. Install the mounting bracket and connect cables.
4. Assemble the camera body, housing, and dome cover.
5. Tighten screws with the supplied wrench.

1. Connect a portable monitor to the video jack.
2. Loosen screws to remove dome and lens covers.
3. Adjust pan, tilt, and rotate positions.
4. Unlock, move, and lock the zoom lever for zoom adjustment.
5. Unlock, move, and lock the focus lever for focus adjustment.
6. Use the on-screen MENU with the provided buttons to set items.
7. Attach the lens cover and dome cover.

• Use UP/DOWN buttons to navigate menus and select items.
• Use LEFT/RIGHT buttons to adjust values or select modes.
• Use SET button to confirm selections or enter submenus.
