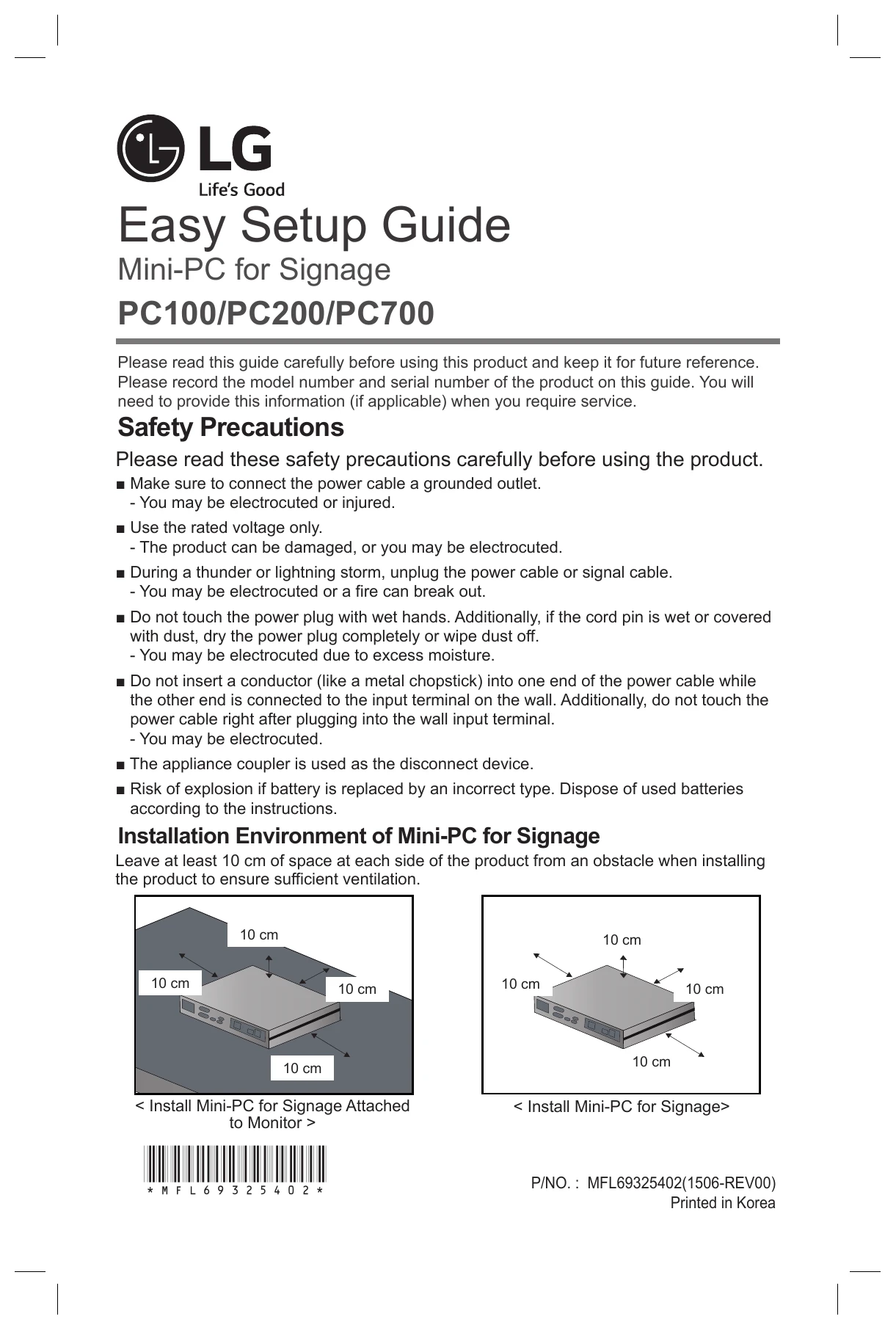

Installation Guide for PC100/PC200/PC700
Uploaded: Nov. 21, 2025, 8:05 p.m.
Warranty Information
LG Electronics is not liable for accidents related to the use of non-standard screws or over-tightening.
- Safety Precautions: Ensure grounded outlets, use rated voltage, unplug during storms, avoid touching wet plugs, do not insert conductors into power cables, and understand the appliance coupler is the disconnect device. Be aware of explosion risk if batteries are replaced with incorrect types.
- Installation Environment: Maintain at least 10 cm of space on all sides for ventilation.
- PC100 Monitor Integration: Attach handles and rails to the PC100 using provided screws. Secure the Box Guide to the monitor and then attach the PC100 to the Box Guide.
- In/Out Cable Connection (D-sub, HDMI, DP): Connect power cables to monitor and PC100. Connect video cables (D-sub, HDMI, DP) between the PC100 and monitor. Connect RS-232C for control and LINE-OUT for audio if needed. Connect LAN for network access.
- PC200 Monitor Integration: Remove screw & metal cover, attach the PC200 to rail slots, and secure with screws.
- PC700 Monitor Integration: Specific steps for **WS50, **LT55A Models, **WX50MF Model, and 84WS70MS Model involving placing the PC700 on the table, mounting it into compartments, and securing with screws.
- PC700 In/Out Cable Connection: Connect power, RGB, LINE-OUT, RS-232C, and LAN cables between the PC700 and monitor. Note that RGB, DP, LINE-OUT, and LAN cables may need to be purchased separately.
