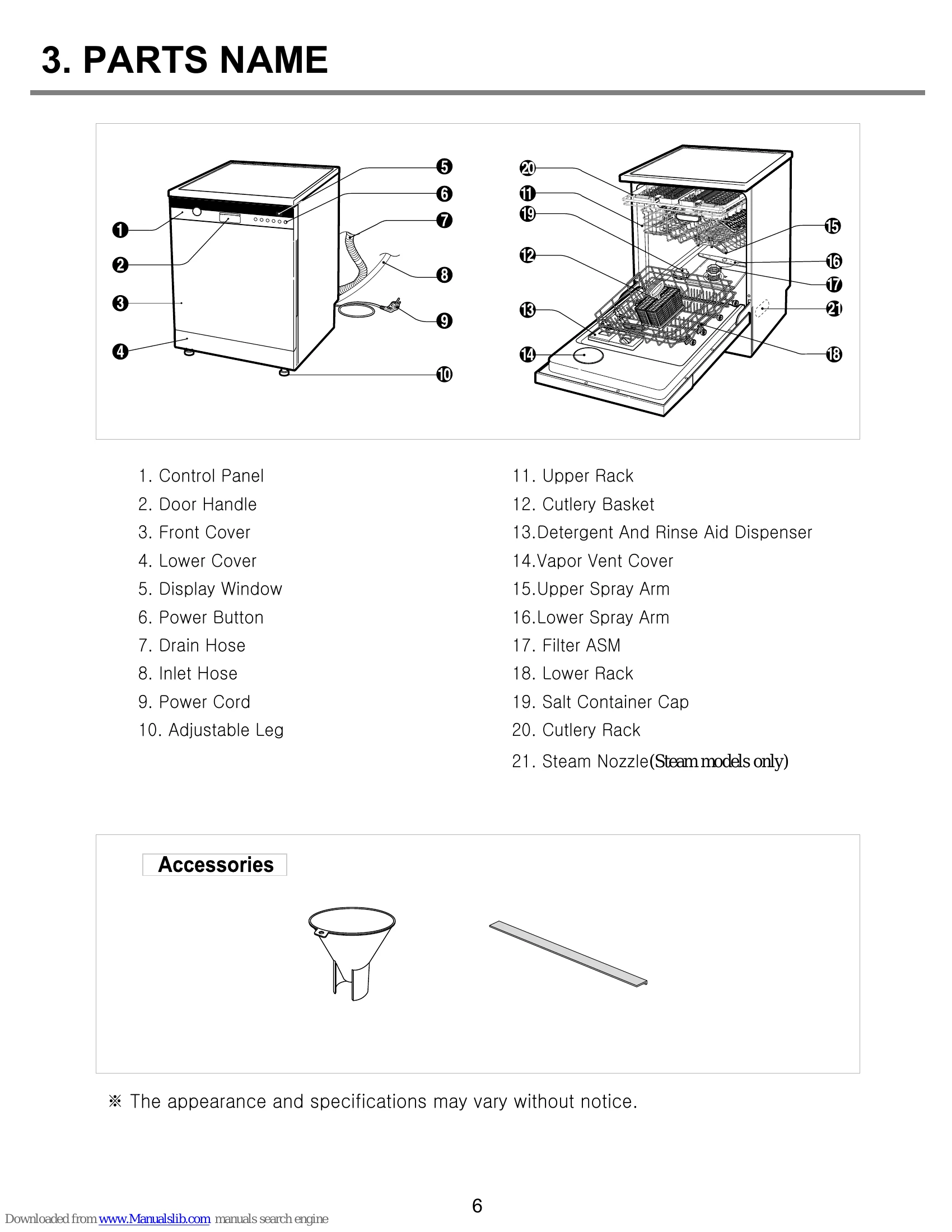

Parts/Service for LD1455W(L,M,T,B,C)FCS2
Uploaded: Nov. 21, 2025, 7:55 p.m.
Warranty Information
No warranty information is available in this service manual.
Quick Guide to Dishwasher Operation
1. Power On: Press the 'Power' button to turn the appliance on.
2. Select Program: Press the 'Program' button to cycle through available wash cycles (e.g., Quick & Dry, Quick, Eco, Auto, Care, Steam Care, Dual Spray, Steam Power). The selected program will be displayed.
3. Additional Options:
- Rinse: Press 'Rinse' to select Extra Hot, Rinse+, or Extra Hot & Rinse+.
- Child Lock: Press and hold 'Child Lock' for 3 seconds to activate/deactivate.
- Spray Intensity: Press 'Spray' to adjust water intensity (Soft, Medium, Strong) for specific programs.
- Half Load: Press 'Half Load' to select upper or lower rack only for energy saving.
- Delay Start: Press 'Delay Start' to set a delayed start time (1-19 hours).
4. Start: Once settings are confirmed, the dishwasher will automatically start or begin the delayed start sequence.
5. Beep On/Off: Press 'Spray' and 'Delay Start' simultaneously to toggle audible beeps.
6. Power Off: The unit automatically switches off after completion. Press 'Power' twice to turn off manually during operation.
Troubleshooting and error codes
| Error Code | Possible Cause | Solution |
|---|---|---|
| OE | Not draining | Check drain hose, filter, pump impeller. |
| FE | Overfilling | Check inlet valve, water level sensor. |
| IE | Not filling | Check inlet hose, water pressure, inlet valve. |
| EI | Inlet valve faulty | Replace inlet valve. |
| HE | Heating error | Check heater, thermistor, main PCB. |
| LE | Leak detected | Check for leaks in the tub or hoses. |
| tE | Temperature error | Check thermistor, heating element, main PCB. |
