Parts/Service for DLE3600*
Uploaded: Nov. 21, 2025, 9:25 p.m.
Manual Publish Date: 2020-05-01
Warranty Information
This manual does not explicitly state a warranty period, but it is intended for service and training purposes.
- Specifications: Provides details on model numbers, dimensions, power supply, dryer capacity (Normal and Steam cycles), and weight for both gas and electric models.
- Features and Benefits: Highlights features like Sensor Dry, ThinQ connectivity, and various cycle options.

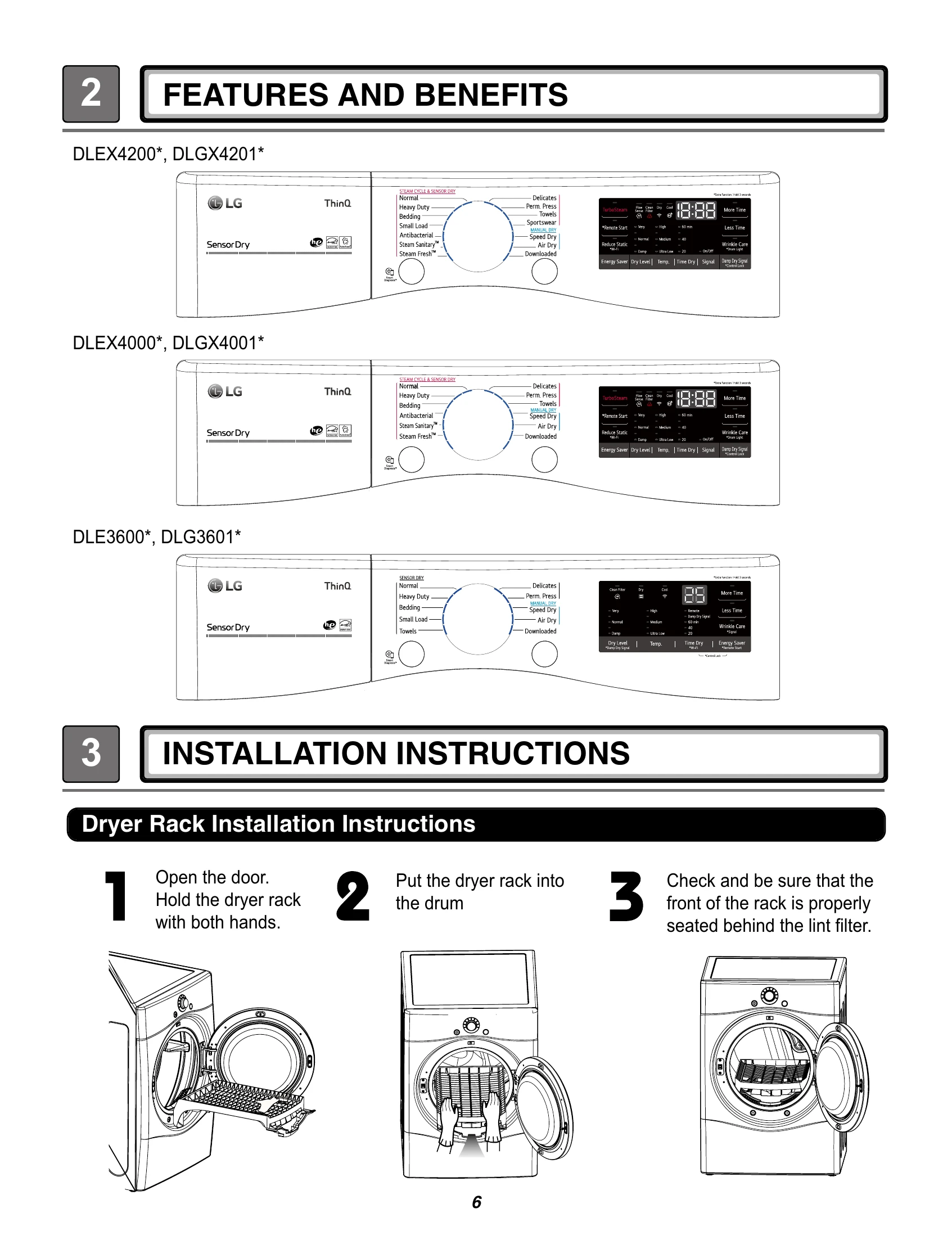

- Installation Instructions: Covers dryer rack installation, stacking kit installation (requiring two people), and pedestal installation. Includes detailed steps for electrical connections (4-wire and 3-wire) and gas supply connection.
- Dryer Cycle Process: Details the default settings for various Sensor Dry and Manual Dry cycles, including temperature, dry level, display time, drying conditions (electro-sensor control, temperature control), cooling, and wrinkle care.
- Component Testing Information: Provides procedures for testing various components such as thermal cut-offs, thermostats, LED lamps, door switches, heaters, motors, gas valves, igniters, and flame detectors, including expected results and remarks.
- Motor Diagram and Schematic: Illustrates the motor's wiring and centrifugal switch operation in stop and run modes.
- Wiring Diagram: Presents detailed wiring diagrams for both electric and gas dryers, showing connections for electronic controls, motors, heaters, and other components.
- Dryer Exhaust Change: Outlines the procedure for changing the dryer's exhaust vent.
- Disassembly Instructions: Includes steps for disassembling the filter assembly, blower housing, back cover, air duct, and rollers.
- Exploded View: Provides detailed exploded views of different assemblies, including the control panel, cabinet and door, and drum and motor for both electric and gas types.
Troubleshooting and error codes
| Component | Test Procedure | Check result | Remark |
|---|---|---|---|
| 1. Thermal cut off | Measure resistance of terminal to terminal | ① Resistance value ≒ ∞ ② Continuity (250°F ↓ ) < 1Ω |
• Heater case-Safety • Electric type |
| 2. Hi limit Thermostat (Auto reset) | Measure resistance of terminal to terminal | ① Resistance value ≒ ∞ ② Resistance value < 5Ω |
• Heater case - Hi limit • Electric type |
| 3. Outlet Thermostat (Cut off) | Measure resistance of terminal to terminal | ① Resistance value ≒ ∞ ② Resistance value < 5Ω |
• Blower housing - Safety |
| 4. LED Lamp | Schematic: 12V IN, LED ASM, DI, R1, LED1, LED2, 68R/J(1W) | If the lamp is turned on by connecting is normal. | It is not measured by multimeter because Vth is 3.2V (except for DLE3600*, DLG3601*) |
| 5. Door switch | Measure resistance of the following terminal 1) Door open 2) Door closed |
1) Terminal: COM - NC (1-3) ① Resistance value < 1Ω ② Resistance value ≒ ∞ 2) Terminal: COM - NO (1-2) ① Resistance value ≒ ∞ ② Resistance value < 1Ω |
|
| 6. Idler switch | Measure resistance of the following terminal: COM - NC | 1.Lever open ① Resistance value < 1Ω 2. Lever push (close) ② Resistance value ≒ ∞ |
|
| 7. Heater | Measure resistance of the following terminal ① Terminal: 1 (COM) - 2 ② Terminal: 1 (COM) - 3 ③ Terminal: 2 - 3 |
① Resistance value: 10Ω ② Resistance value: 10Ω ③ Resistance value: 20Ω |
• Electric type |
| 8. Thermistor | Measure resistance of terminal to terminal Temperature condition: 58°F ~ 104°F (10~40°C) |
Resistance value: 10Ω | • Heater case Hi limit • Electric type |
| 9. Motor | See Page 15 | ||
| 10. Gas valve | Measure resistance of the following terminal ① Valve 1 terminal ② Valve 2 terminal |
① Resistance value 1.5k~2.5ΚΩ ② Resistance value 1.5k~2.5ΚΩ |
• Gas type |
| 11. Igniter 5318EL3001 | Measure resistance from terminal to terminal. | Resistance value 50~800 Ω (for 5318EL3001) | • Gas type |
| 12. Flame Detect | Measure resistance of terminal to terminal | ① Resistance value ≒ ∞ ② Resistance value < 1Ω |
• Gas type |
| 13. Outlet Thermostat (Auto reset) | Measure resistance of terminal to terminal | ① Resistance value ≒ ∞ ② Continuity < 1Ω |
• Gas type • Gas funnel |
| 14. Outlet Thermostat (Manual reset) | Measure resistance of terminal to terminal | ① Resistance value ≒ ∞ ② Continuity < 1Ω |
• Gas type • Gas funnel |
| 15. Inlet. valve | Measure resistance of the Following terminal • Left picture -.plate | DC 12V Limit current: 550mA Coil resist: 240±10% | Electric type (except for DLE3600*, DLG3601*) |
