Manual for W2043S

Manual for W2043S

Brand: LG logo LG

Category: Monitor

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 9:11 p.m.

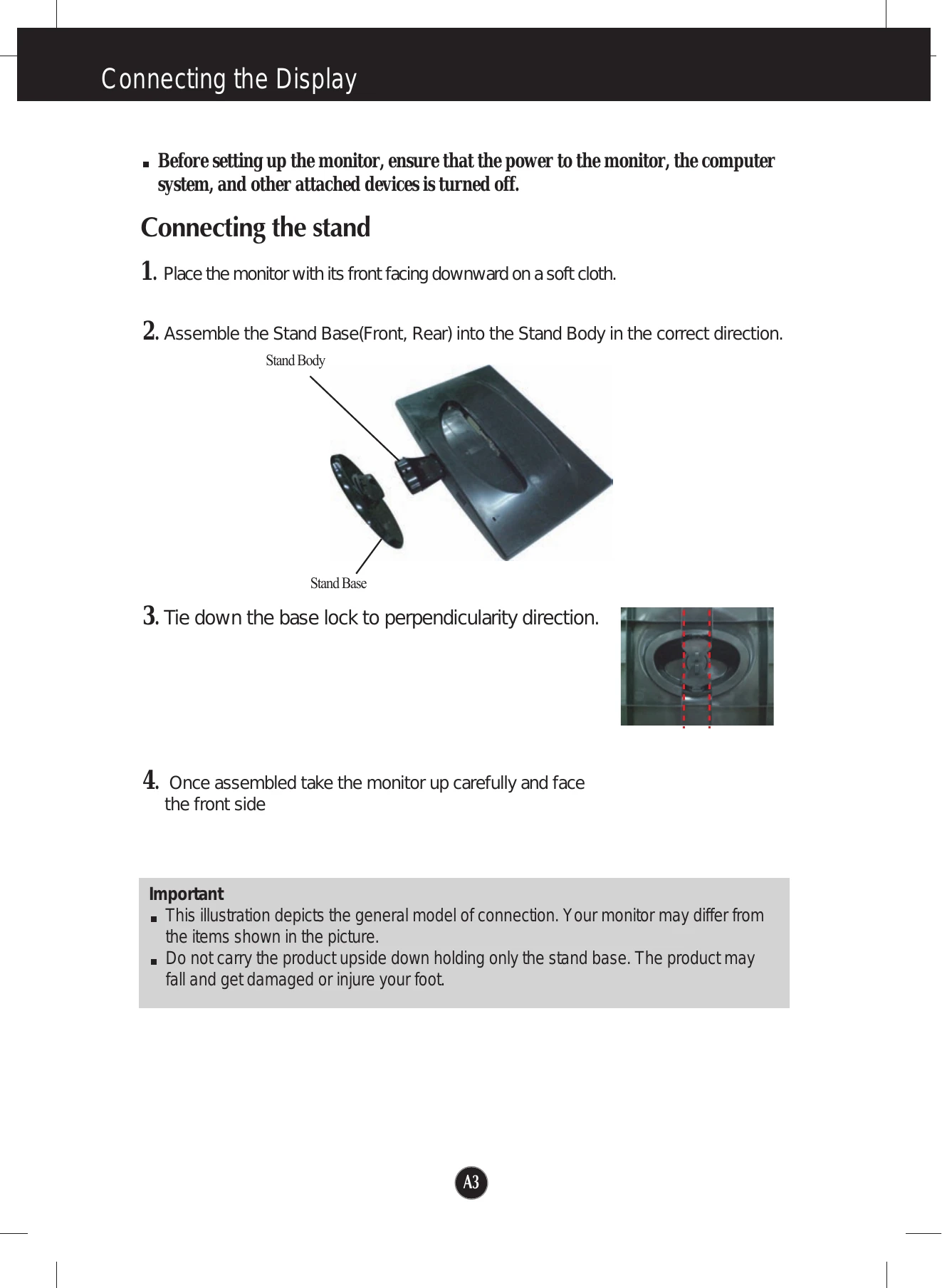

  • Connecting the stand: Place the monitor face down on a soft cloth. Assemble the stand base into the stand body. Tie down the base lock. Carefully lift the monitor.
  • Positioning your display: Adjust the tilt range from -5° to 15° for maximum comfort. Maintain an ergonomic viewing position by not exceeding a 5-degree forward tilt.
  • Using the Computer: Turn off the computer and monitor. Connect the D-sub cable (PC or Mac). Plug in the power cord. Press the power button. The 'Self Image Setting Function' will execute automatically.
  • Control Panel Functions: Use the FUN, MENU, Navigation (▲▼), and AUTO/SET buttons to control various display settings and functions. The Power Button turns the display on/off.
  • On Screen Display (OSD) Control Adjustment: Press the MENU button to access the OSD. Use the navigation buttons to select and adjust settings like Picture, Color, Tracking, Setup, and Flatron F-Engine.

Troubleshooting and error codes

No image appears
Is the power cord of the display connected? • Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on? • Press the Power button.
Is the power indicator amber? • If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.
• Try to turn on the PC.
Do you see an "OUT OF RANGE" message on the screen? • This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "CHECK SIGNAL CABLE" message on the screen? • This message appears when the signal cable between your PC and your display is not connected. Check the signal cable and try again.
Do you see a "OSD LOCKED" message on the screen?
Do you see "OSD LOCKED" when you push MENU button? • You can secure the current control settings, so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message "OSD UNLOCKED" will appear.
Display image is incorrect
Display Position is incorrect. • Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display.
On the screen background, vertical bars or stripes are visible. • Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the vertical bars or stripes using the CLOCK icon in the on screen display.
Any horizontal noise appearing in any image or characters are not clearly portrayed. • Press the AUTO/SET button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, decrease the horizontal bars using the PHASE icon in the on screen display.
• Check Control Panel --> Display --> Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).
The screen color is mono or abnormal. • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.
• Make sure the video card is properly inserted in the slot.
• Set the color setting higher than 24 bits (true color) at Control Panel - Settings.
The screen blinks. • Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.
Have you installed the display driver?
Have you installed the display driver? • Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? • Make sure to check if the video card supports Plug&Play function.
