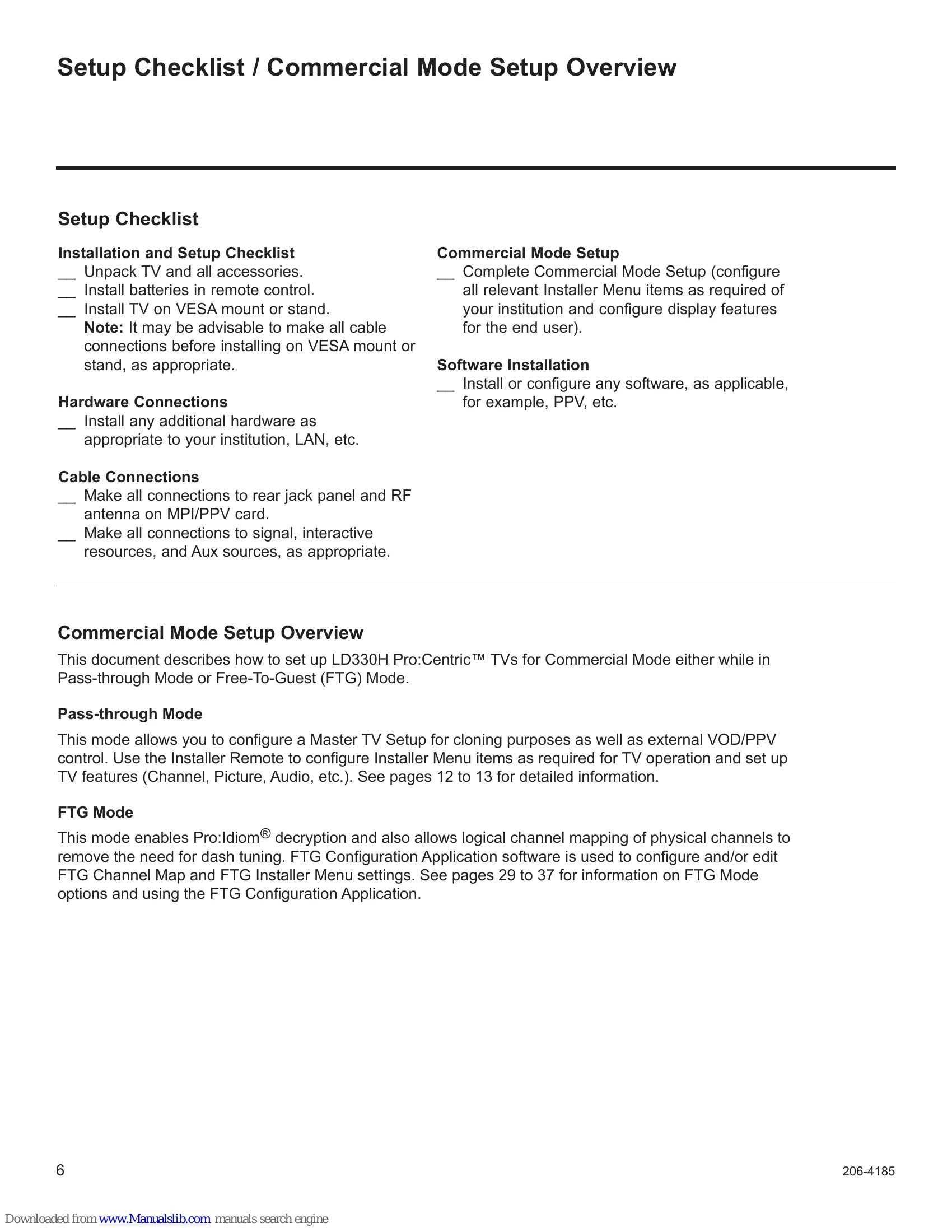

Setup Checklist

  • Unpack TV and accessories.
  • Install batteries in remote.
  • Install TV on mount or stand.
  • Connect cables to rear jack panel and RF antenna.
  • Connect to signal, interactive resources, and Aux sources.

Commercial Mode Setup

  • Configure Installer Menu items and display features.
  • Install or configure any applicable software.

Pass-through Mode

  • Configure Master TV Setup for cloning.
  • Set up TV features (Channel, Picture, Audio, etc.) via Installer Remote.

FTG Mode

  • Enables Pro:Idiom® decryption.
  • Allows logical channel mapping.
  • Configure/edit FTG Channel Map and FTG Installer Menu settings using FTG Configuration Application software.

Troubleshooting and error codes

Symptom Possible Cause(s) Possible Solution(s)
Cannot direct enter channel number. (TV in Stand-alone Mode) Installer Menu item 028 CH. OVERIDE is set to 0, i.e., disabled (recommended setting). If Installer Menu item 028 CH. OVERIDE is set to 0, only channels that are active in the TV's channel lineup can be selected. Set CH. OVERIDE to 1 to allow access for direct keypad entry to all channels.
(TV in FTG Mode) The channel entered is not part of the FTG Channel Map. Channel access is restricted to channels included in the FTG Channel Map. If necessary, make changes to the FTG Channel Map using the FTG Configuration Application.
No power. (See troubleshooting flow chart on following page.) (See troubleshooting flow chart on following page.)
No picture. Display panel is turned off. • Turn TV ON.
• Power failure?
Antenna/cable not connected. Connect antenna/cable signal to TV
Connections incorrect. Check connections on TV
MPI not connected. If applicable, connect MPI cable to MPI device.
Encrypted program. Try another channel.
Wrong tuning band. Adjust Installer Menu settings.
Installer Menu setup. Wrong Installer Menu settings. Adjust Installer Menu settings as required.
Remote doesn't work. Remote not in TV Mode. Use MODE key to select "TV"; puts remote into TV Mode.
Not aimed at IR remote sensor. Point remote at IR receiver on TV.
Remote too far from IR sensor. Move remote closer to IR receiver on TV or darken room.
MPI not connected. If applicable, connect MPI cable to MPI device.
IR path to TV's receiver obstructed. Remove obstructions.
Weak batteries. Replace batteries.
Wrong battery polarity. Check that "+" and "-" match in battery compartment.
Too much light in room. Dim room light.
Wrong Installer Remote. Requires compatible Installer Remote. Contact your LG dealer.
Normal picture, poor or no sound. Audio muted. Press MUTE or use Volume Up key to increase sound level.
Broadcast problem. Try a different channel.
