Warranty Information
Makita offers a one-year warranty against defects in workmanship and materials from the original purchase date.

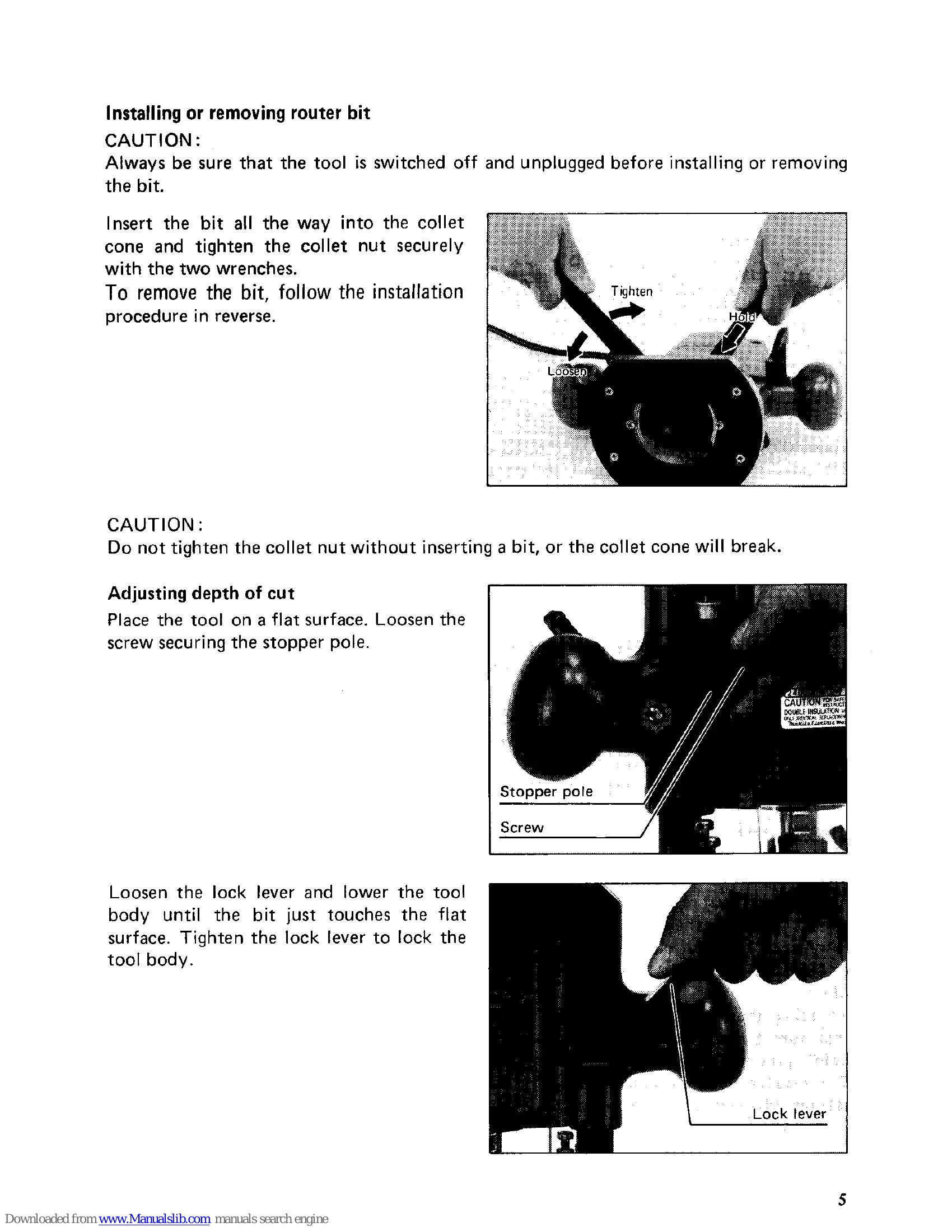

Starting the Tool: Pull the trigger to start. Release to stop. Always ensure the switch returns to the "OFF" position when released. Before plugging in, check switch functionality.
Operation: Place the tool base on the workpiece. Turn on and wait for full speed. Lower the tool body, keeping the base flush, and move forward smoothly. For edge cutting, workpiece should be to the left of the bit in the feed direction. A sample cut on scrap lumber is recommended to check cut quality and dimensions.
Straight Guide: Used for straight cuts. Insert guide bars, adjust distance, and tighten wing bolts. Move the tool with the guide flush to the workpiece side. If the workpiece side is not straight or the distance is too great, clamp a straight board as a guide.
Templet Guide: For use with templet patterns. Loosen screws on the tool base, insert templet guide, and tighten screws. Secure templet to workpiece and slide the templet guide along its side.
Troubleshooting and error codes
| ITEM NO. | NO. USED | DESCRIPTION |
|---|---|---|
| 1 | 2 | Screw M5x20 |
| 2 | 1 | Flat Washer 5 |
| 3 | 1 | Pressure Plate |
| 4 | 1 | Hex. Nut M8 |
| 5 | 1 | Stopper Pole |
| 6 | 1 | Depth Pointer |
| 7 | 1 | Housing Set (With Item 15) |
| 8 | 1 | Cord |
| 9 | 1 | Cord Guard |
| 10 | 1 | Strain Relief |
| 11 | 2 | Pan Head Screw M4x18 (With Washer) |
| 12 | 1 | Switch |
| 13 | 2 | Carbon Brush |
| 14 | 2 | Brush Holder |
| 15 | 1 | Housing Set (With Item 7) |
| 16 | 1 | Flat Washer 8 |
| 17 | 1 | Lever 45 |
| 18 | 1 | Retaining Ring R-15 |
| 19 | 1 | Flat Washer 10 |
| 20 | 1 | Pin 10 |
| 21 | 1 | Compression Spring 10 |
| 22 | 1 | Hex. Bolt M5x28 |
| 23 | 1 | Hex. Nut M5 |
| 24 | 1 | Hex. Bolt M5x16 |
| 25 | 1 | Hex. Nut M5 |
| 26 | 1 | STOPPER ASSEMBLY (With Item 22, 26 & 29 - 31) |
| 27 | 1 | Steel Ball 7.1 |
| 28 | 1 | Compression Spring 5 |
| 29 | 1 | Flat Head Screw M6 |
| 30 | 1 | Hex. Bolt M5x20 |
| 31 | 1 | Hex. Nut M5 |
| 32 | 2 | Self Lock 15 |
| 33 | 1 | Base |
| 34 | 4 | Countersunk Head Screw M4x8 |
| 35 | 2 | Pan Head Screw M5x10 (With Washer) |
| 36 | 1 | Base Plate |
| 37 | 2 | Wing Bolt M5x15 |
| 38 | 1 | Compression Spring 10 |
| 39 | 1 | Pin 10 |
| 40 | 7 | Pan Head Screw M5x25 (With Washer) |
| 41 | 1 | Collet Nut |
| 42 | 1 | Collet Cone |
| 43 | 1 | Ball Bearing 6003DDW |
| 44 | 1 | Fan 72 |
| 45 | 1 | ARMATURE ASSEMBLY (With Item 43, 45 & 47) |
| 46 | 1 | FIELD ASSEMBLY |
| 47 | 1 | Ball Bearing 608LLB |
| 50 | 1 | Chip Deflector |
| 51 | 1 | Name Plate |
