Brand: Makita
Category: Power Tool
Document Type: Manual
Language: EN
Manual for RF1101
Uploaded: Nov. 21, 2025, 6:36 p.m.
Warranty Information
Makita offers a one-year limited warranty against defects in workmanship and materials.
To start: Move the switch lever to the I (ON) position. Pull the switch trigger. For continuous operation, pull the switch trigger and push the lock button.
To stop: Move the switch lever to the O (OFF) position. Release the switch trigger. To stop from locked position, pull switch trigger fully, then release.

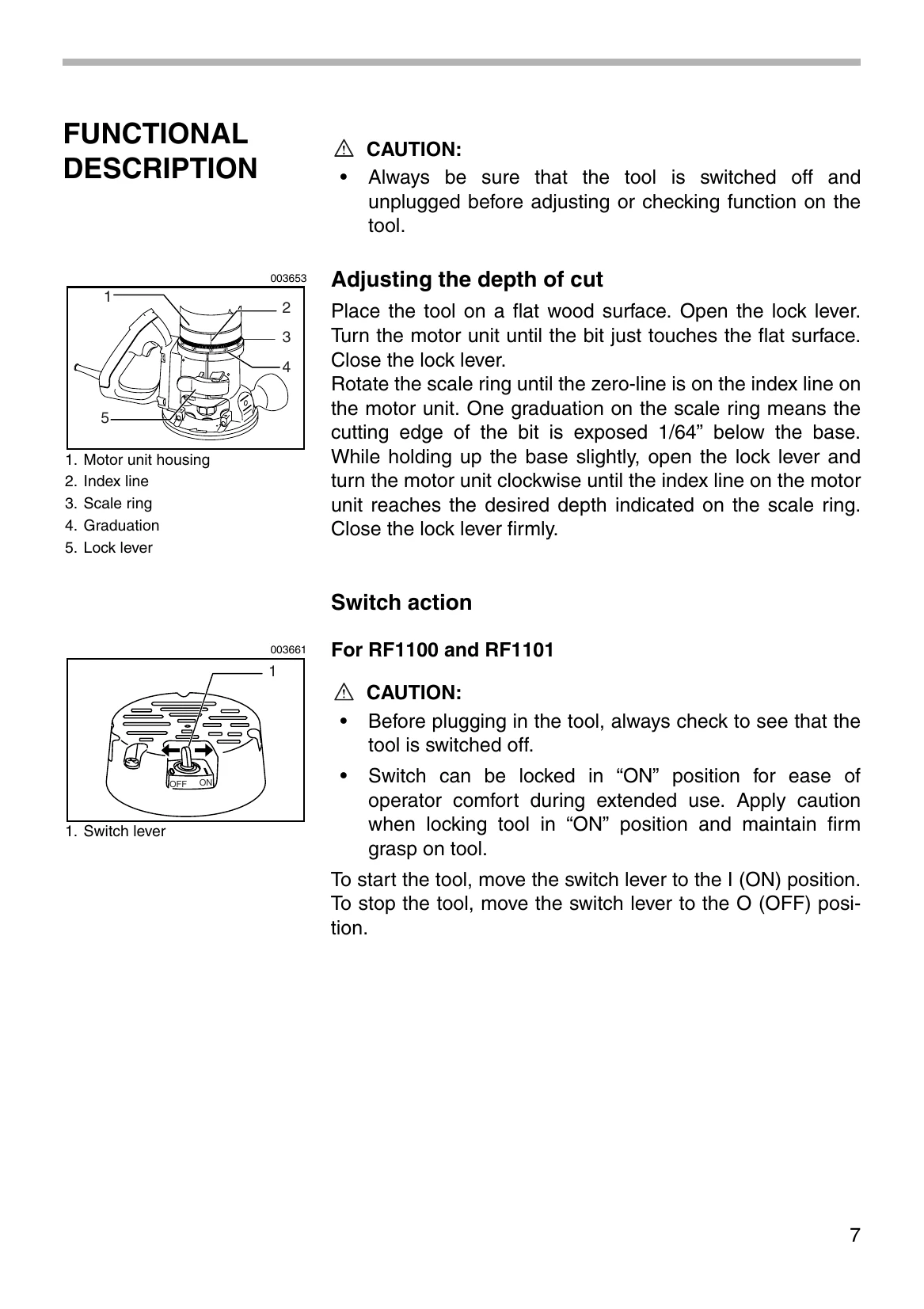

Depth Adjustment: Place tool on flat surface. Unlock lever. Turn motor unit until bit touches surface. Close lock lever. Rotate scale ring to zero-line. Unlock lever, turn motor unit clockwise to desired depth. Close lock lever.
To stop: Move the switch lever to the O (OFF) position. Release the switch trigger. To stop from locked position, pull switch trigger fully, then release.
Depth Adjustment: Place tool on flat surface. Unlock lever. Turn motor unit until bit touches surface. Close lock lever. Rotate scale ring to zero-line. Unlock lever, turn motor unit clockwise to desired depth. Close lock lever.
Troubleshooting and error codes
| Problem | Possible Cause | Remedy |
|---|---|---|
| Tool does not start | Plug is not connected. | Connect the plug to the outlet. |
| Switch is not turned ON. | Move the switch lever to the ON position. | |
| Motor speed is low. | The voltage of the power source is low. | Use a voltage-stabilized power source. |
| Extension cord is too long or too thin. | Use a shorter or heavier gauge extension cord. | |
| The tool vibrates or wobbles. | Bit is not properly installed. | Reinstall the bit securely. |
| Bit is damaged. | Replace the bit. |
