Brand: Miele
Category: Cooktop
Document Type: Manual
Language: EN

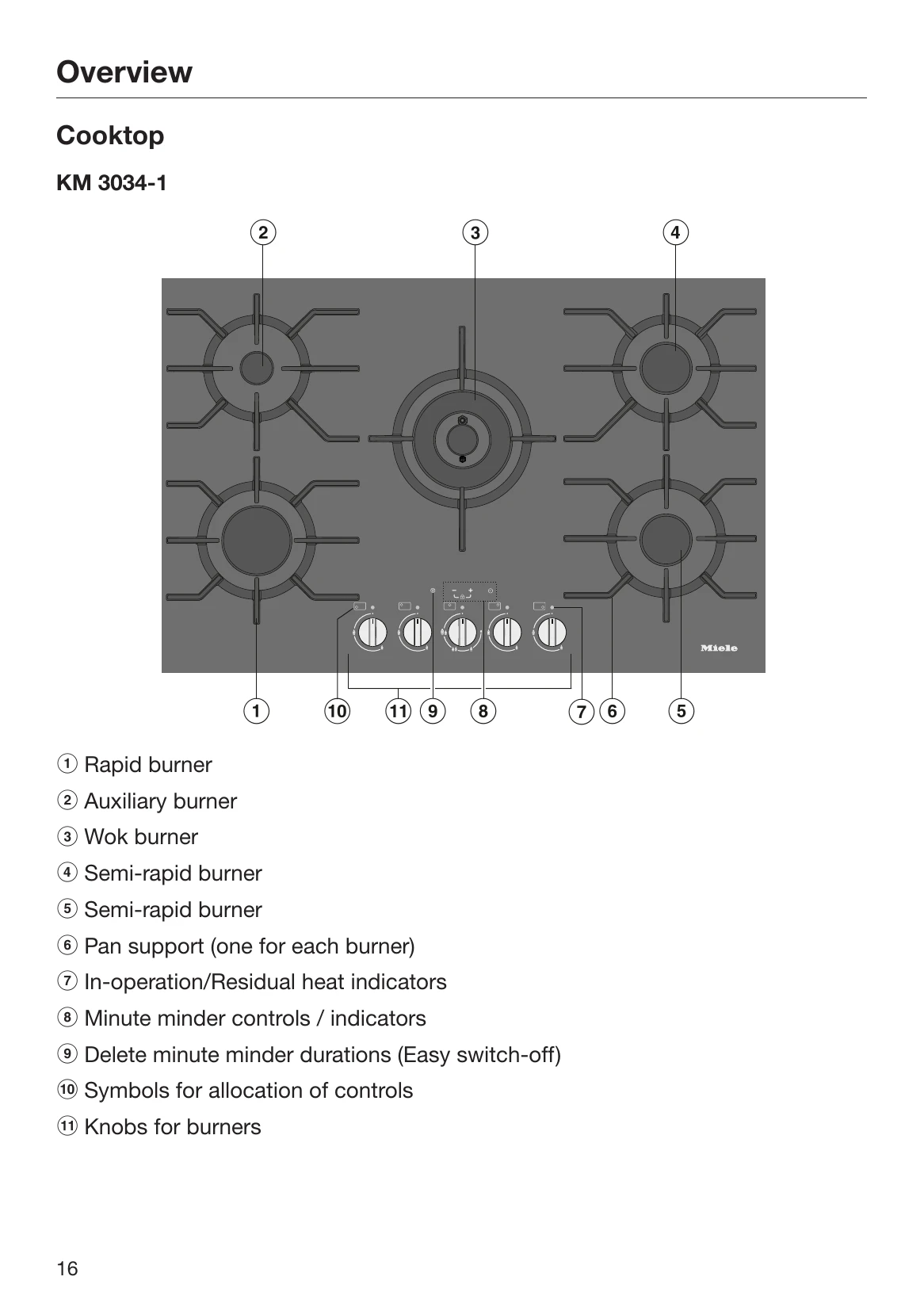

Manual for KM 3034-1
Uploaded: Nov. 21, 2025, 8:17 p.m.
Warranty Information
Miele guarantees functional spare parts for 10-15 years after discontinuation.
Operation
Rapid ignition system: Quick and efficient burner ignition.
Switching on: To switch on a burner, push down the control knob and turn it to the desired setting. The ignitor will spark.
Adjusting the flame: Turn the control knob to adjust the flame intensity. The flame symbol indicates the setting.
Switching off: Turn the control knob to the "off" position (symbol •). The gas supply will be shut off.
In-operation/Residual heat indicators: These indicators show if a burner is on or if the surface is still hot.
Minute minder
Minute minder duration: Set the duration for the minute minder.
Setting the minute minder for a burner: Select the desired burner and set the duration.
System lock, minute minder: Activate the system lock to prevent accidental changes to settings.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | Gas supply is turned off. | Turn on the gas supply. |
| Ignitor is dirty or damp. | Clean the ignitor. | |
| Burner cap or burner head is not correctly positioned. | Reassemble the burner cap and head correctly. | |
| Gas flow is blocked. | Contact Miele Service. | |
| Flame goes out during cooking | Flame failure device is not working. | Contact Miele Service. |
| Uneven flame | Burner is dirty. | Clean the burner. |
| Incorrect gas pressure. | Have the gas pressure checked by a qualified fitter. | |
| Yellow flame | Gas supply is incorrect for the appliance setting. | Convert the appliance to the correct gas type (see "Conversion to another type of gas"). |
| Control knob cannot be turned | System lock is activated. | Deactivate the system lock. |
| Minute minder display shows an error code | Refer to the error code list in the manual. | Contact Miele Service if the problem persists. |
