Brand: Miele
Category: Oven
Document Type: Manual
Language: EN
Manual for H 4120, H 4220, H 4130, H 4230, H 4140, H 4240, H 4150, H 4250, H 4160, H 4260
Uploaded: Nov. 21, 2025, 7:11 p.m.
Warranty Information
None

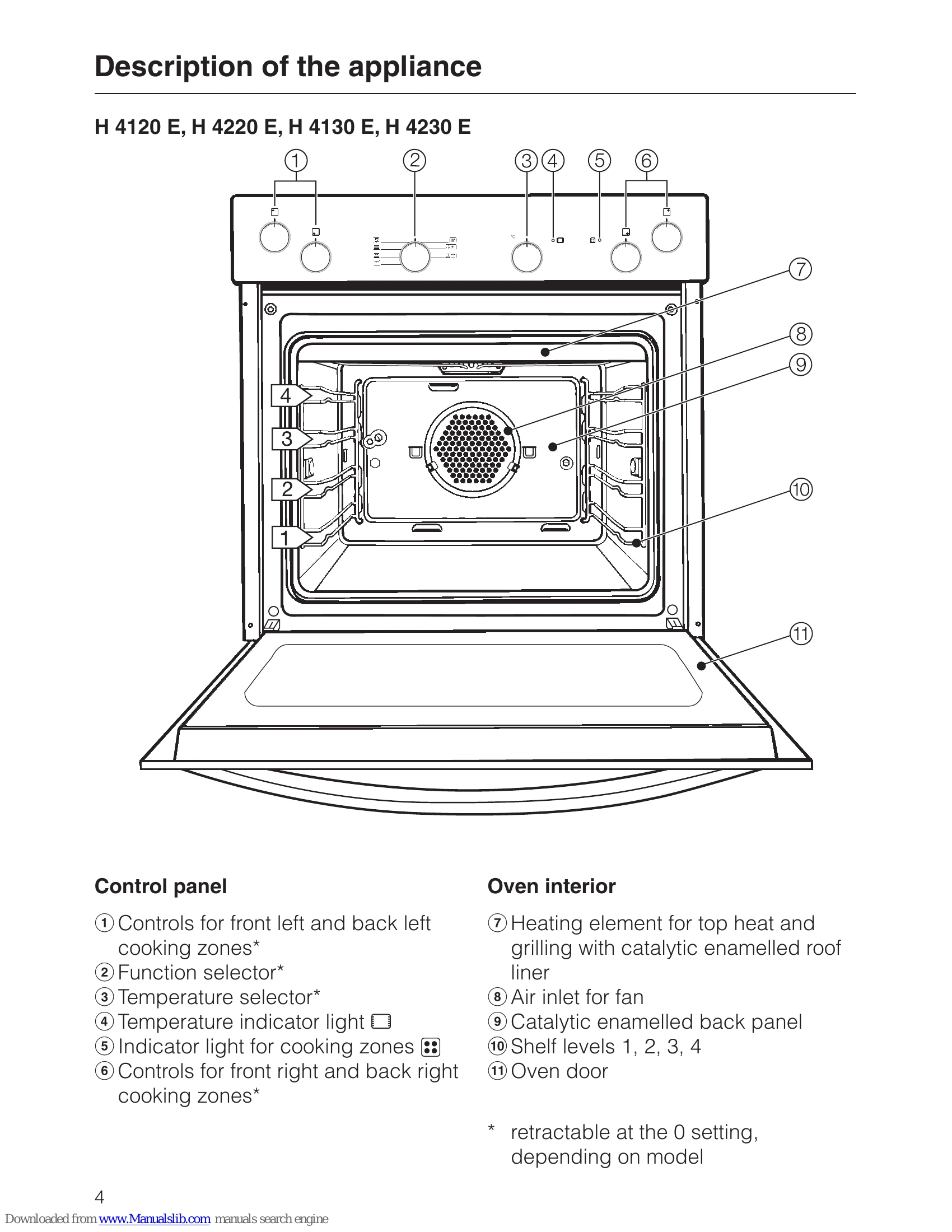

Oven Controls:
Operated via function and temperature selectors. Models with clock/timer have additional features like clock display, minute minder, and automatic timer functions.
Cooling System:
A fan engages when the oven is on and continues to run after switching off to prevent humidity.
PerfectClean Surfaces:
Oven interior, runners, baking tray, grill pan, and rack are treated for easy cleaning and anti-stick properties.
Catalytic Enamelled Surfaces:
Back panel, roof liner, and side liners coated to burn off oil and fat during high-temperature cooking.
Retractable Controls:
Controls can be retracted at the '0' position; press to release or retract.
Oven Interior Lighting:
Located in the oven roof or right-hand side panel, depending on the model.
Catalyser:
Models H 4160 and H 4260 have a catalyser to filter fat and reduce cooking smells.
Energy Efficiency:
Rated energy efficiency class A.
Accessories:
Includes baking tray, grill pan, rack. Optional accessories available.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Cakes or biscuits are unevenly browned |
|
Check temperature, roasting filter, shelf level, and baking tin type. |
| Spots like rust appear on catalytic surfaces | Spices from roasting deposited on oven walls. | Remove fresh residues with a mild solution of hot water and washing-up liquid using a soft brush. |
| Power cut; "12:00" and triangle flashing in clock/timer display | All pre-set times deleted. | Re-enter the time of day and any other pre-set data. |
| "0:00" appears in clock/timer display after buzzer is switched off | Buzzer switched off. | Time of day will reappear shortly. |
