Brand: Miele
Category: Oven
Document Type: Manual
Language: EN

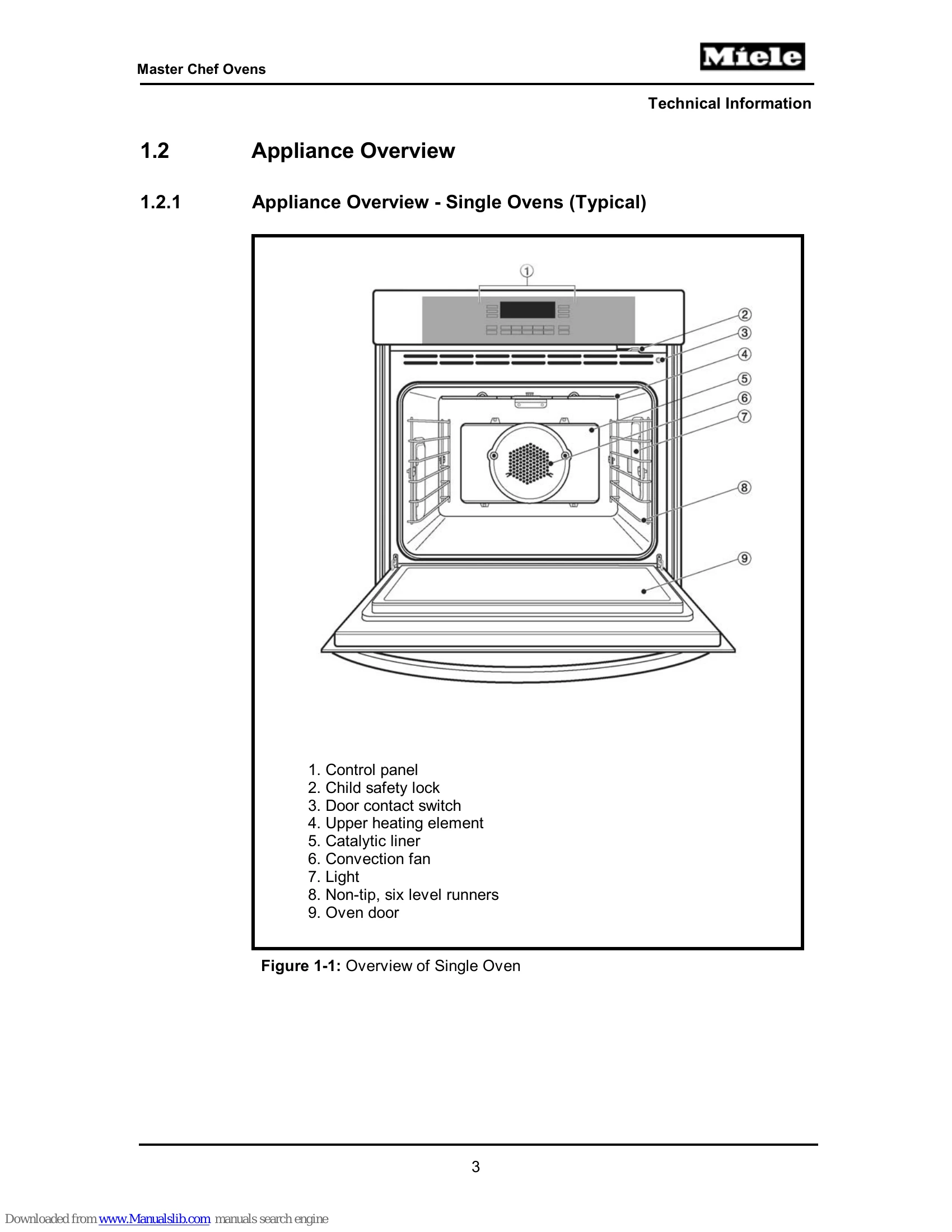

Manual for Master Chef (30") Ovens
Uploaded: Nov. 21, 2025, 6:46 p.m.
Manual Publish Date: 2004-01-01
Warranty Information
None
Basic Operation:
Power On/Off: Use the ON/OFF touch control.
Selecting Functions: Use touch controls to select oven status or menu options.
Entering Data: Use the keypad for times and temperatures.
Timer: Set independent cooking timers.
Clearing Entries: Use the CLEAR control to delete or reset.
Double Ovens: Separate ON/OFF controls for upper and lower ovens.
Troubleshooting and error codes
| Fault Code | Description |
| F 05 | Oven Temperature Sensor - Short Circuit |
| F 06 | Oven Temperature Sensor - Open Circuit |
| F 07 | Catalyst Temperature Sensor - Short Circuit |
| F 09 | Catalyst Temperature Sensor - Open Circuit |
| F 23 | Pre-Heat Self Clean Fault (460° was not reached in the allotted time) |
| F 32 | Door Lock not locking during Self Clean mode. (Fault is stored after 20 seconds if the door lock position switch has not changed state) |
| F 33 | Door Lock not unlocking after Self Clean mode. (Fault is stored after 20 seconds if the door lock position switch has not changed state) |
| F 43 | Programming Fault - model number not programmed correctly |
| F 44 | Programming fault - model number not programmed correctly |
| F 54 | Roast Probe - short circuit |
| F 55 | The oven did not automatically turn off after a specified time of operation (dependant on the oven function being used) Check Safety cut-outs |
| F 60 | The temperature of the electronic is too high. Check for possible air flow restriction. |
