Manual for W 1612

Manual for W 1612

Brand: Miele

Category: Washing Machine

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 9:19 p.m.

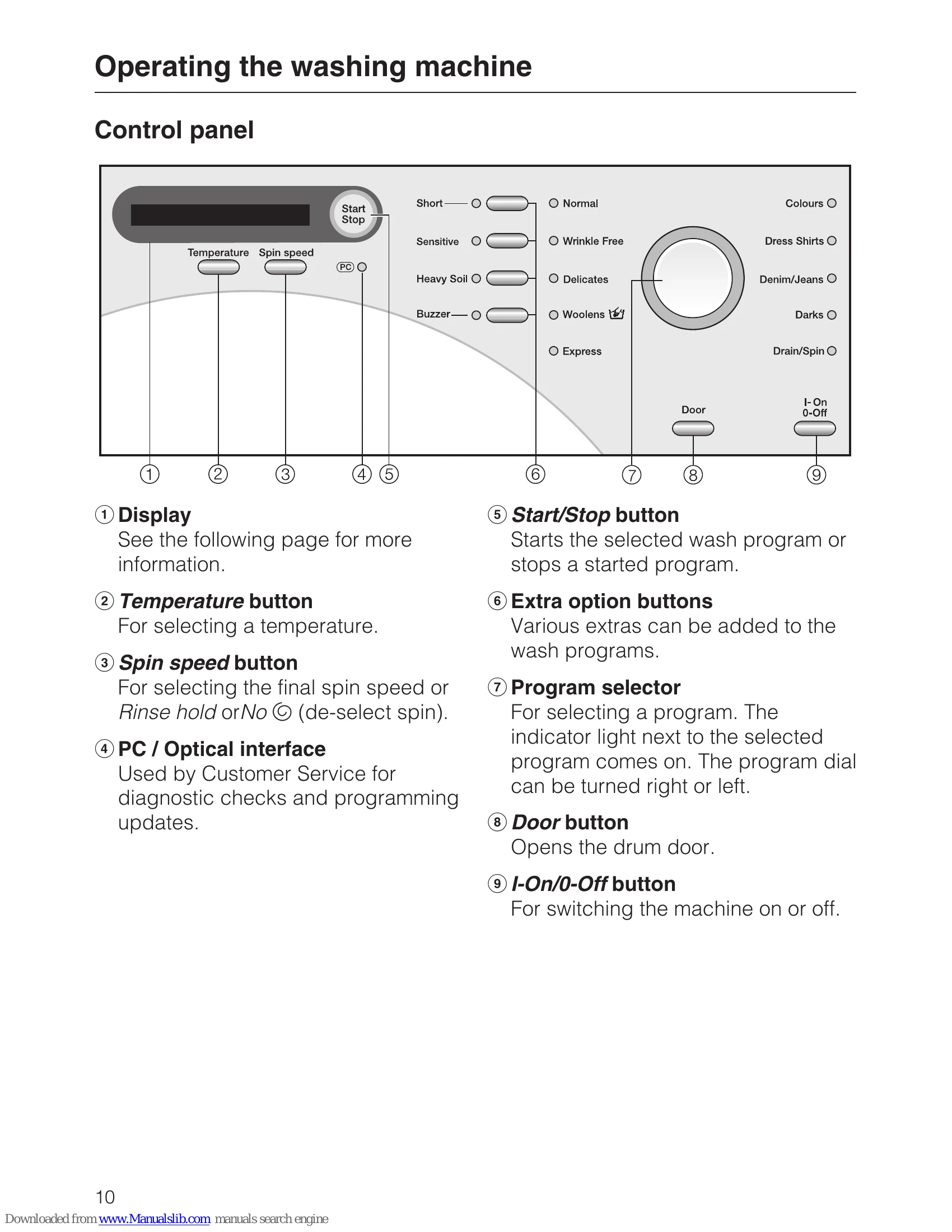

Control Panel Overview:

  • Display: Shows program status, duration, and selected functions.
  • Temperature Button: Selects wash temperature.
  • Spin Speed Button: Adjusts final spin speed or selects Rinse Hold/No spin.
  • PC/Optical Interface: For service diagnostics and updates.
  • Start/Stop Button: Starts or pauses the selected program.
  • Extra Option Buttons: Adds features like Short, Sensitive, Heavy Soil, Buzzer.
  • Program Selector: Chooses the wash program.
  • Door Button: Opens the washing machine door.
  • I-On/0-Off Button: Powers the machine on or off.

Basic Washing Steps:

  1. Prepare laundry: Empty pockets, pre-treat stains, sort by color and care.
  2. Turn on the washer.
  3. Load laundry loosely into the drum, ensuring no items are trapped.
  4. Select the desired wash program using the program selector.
  5. Adjust temperature and spin speed if needed.
  6. Select any desired extra options.
  7. Add the correct amount of detergent.
  8. Start the program.
  9. Remove laundry promptly when the program finishes.

Troubleshooting and error codes

Troubleshooting: What to do if...

Problem Possible Cause Solution
No wash program will start The machine is not switched on. Press the I-On/0-Off button.
The program has not been selected. Turn the program selector to the desired program.
The Start/Stop button has not been pressed. Press the Start/Stop button.
The loading door is not closed properly. Close the loading door. Check if anything is caught in the door seal.
Childproof lock is active. Deactivate the childproof lock.
Fault messages in the display Refer to the display message for specific error codes and solutions (e.g., F01, F05, F11, F12, F20). Refer to the detailed troubleshooting section in the manual for specific fault codes.
General problems Water not entering. Check water tap is open, inlet hose is not kinked, water pressure is sufficient.
Washing does not start. Check if program is selected and Start/Stop pressed, door is closed.
Water not draining. Check drain hose for kinks or blockages, ensure drain pump filter is clean.
Unsatisfactory wash results Incorrect detergent dosage. Adjust detergent amount according to soiling and load size.
Program or temperature too low. Select a more intensive program or higher temperature.
Overloading the machine. Reduce the laundry load.
The loading door cannot be opened with the Door button Program still running or in "Rinse hold". Wait for the program to finish or select "Drain/Spin" then "No spin".
Childproof lock is active. Deactivate the childproof lock.
Opening the loading door (blocked drain outlet and/or power outage) Drain outlet blocked or power failure. Follow the specific instructions in the manual for emergency door opening.
