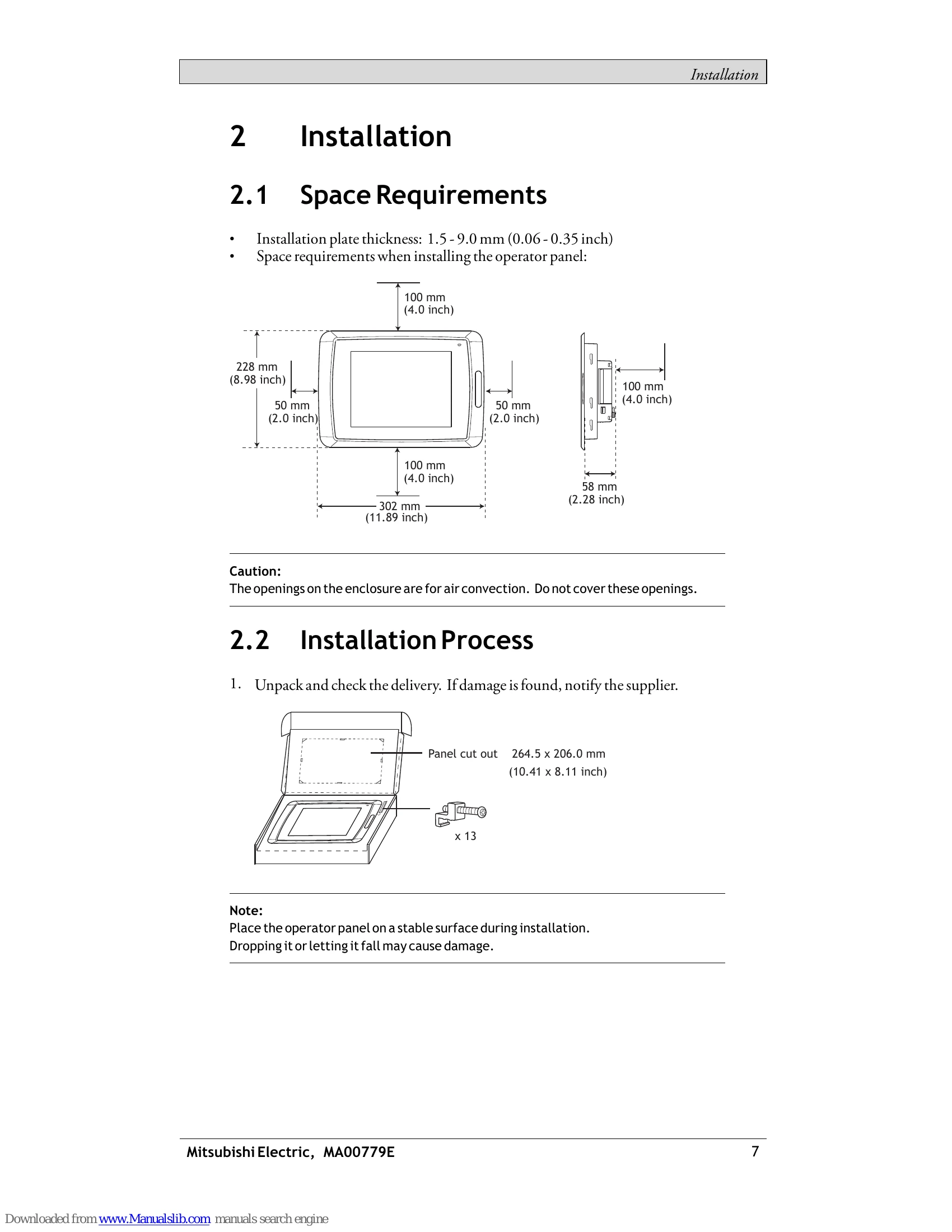

Installation Guide for E1101
Uploaded: Nov. 21, 2025, 6:13 p.m.
Manual Publish Date: 2014-12-01
Warranty Information
Minimum lifetime of the real-time clock battery is 3 years.
E1100 Operator Panel Operation
The E1100 operator panel is designed for human-machine communication, featuring built-in functions for text display, control, dynamic indication, time channels, alarms, and recipe handling. It operates in an object-oriented manner for ease of understanding and use. Projects are configured on a PC using the configuration tool and then transferred to the panel. Various automation equipment, such as PLCs, servos, and drives, can be connected, referred to as "the controller" in this manual.Troubleshooting and error codes
| Symptom | Cause | Solution |
|---|---|---|
| Communication errors | Incorrect wiring | Check wiring according to diagrams in this manual and refer to controller manuals. Ensure correct connection of the shield at one end only or via a capacitor. |
| Communication errors | Grounding issues | Ensure proper grounding of the operator panel, device cabinet, and any connecting equipment. Use a grounding wire or braid of adequate size and short length. |
| Communication errors | Noise interference | Use shielded cables and ferrite cores. Separate high-voltage cables from signal and supply cables. Avoid combining 24V DC outputs with communication cabling in the same trunk. |
| Display issues (e.g., condensation) | Temperature difference | Allow the operator panel to reach ambient temperature before startup. Ensure it is dry before connecting to power if condensation forms. |
| Equipment failure | Incorrect power supply | Ensure the voltage and polarity of the power source are correct. Use a Class 2 power supply for UL/cUL installations. |
| Reduced lifespan or damage | Improper installation environment | Install in a stable plane surface, away from direct sunlight, strong magnetic fields, and sudden temperature changes. Maintain appropriate ambient temperatures. |
