Brand: MITSUBISHI ELECTRIC
Category: Other
Document Type: Manual
Language: EN
Manual for JT-SB116JH2-S-NA
Uploaded: Nov. 21, 2025, 8:39 p.m.
Warranty Information
No explicit warranty information is provided in this manual.

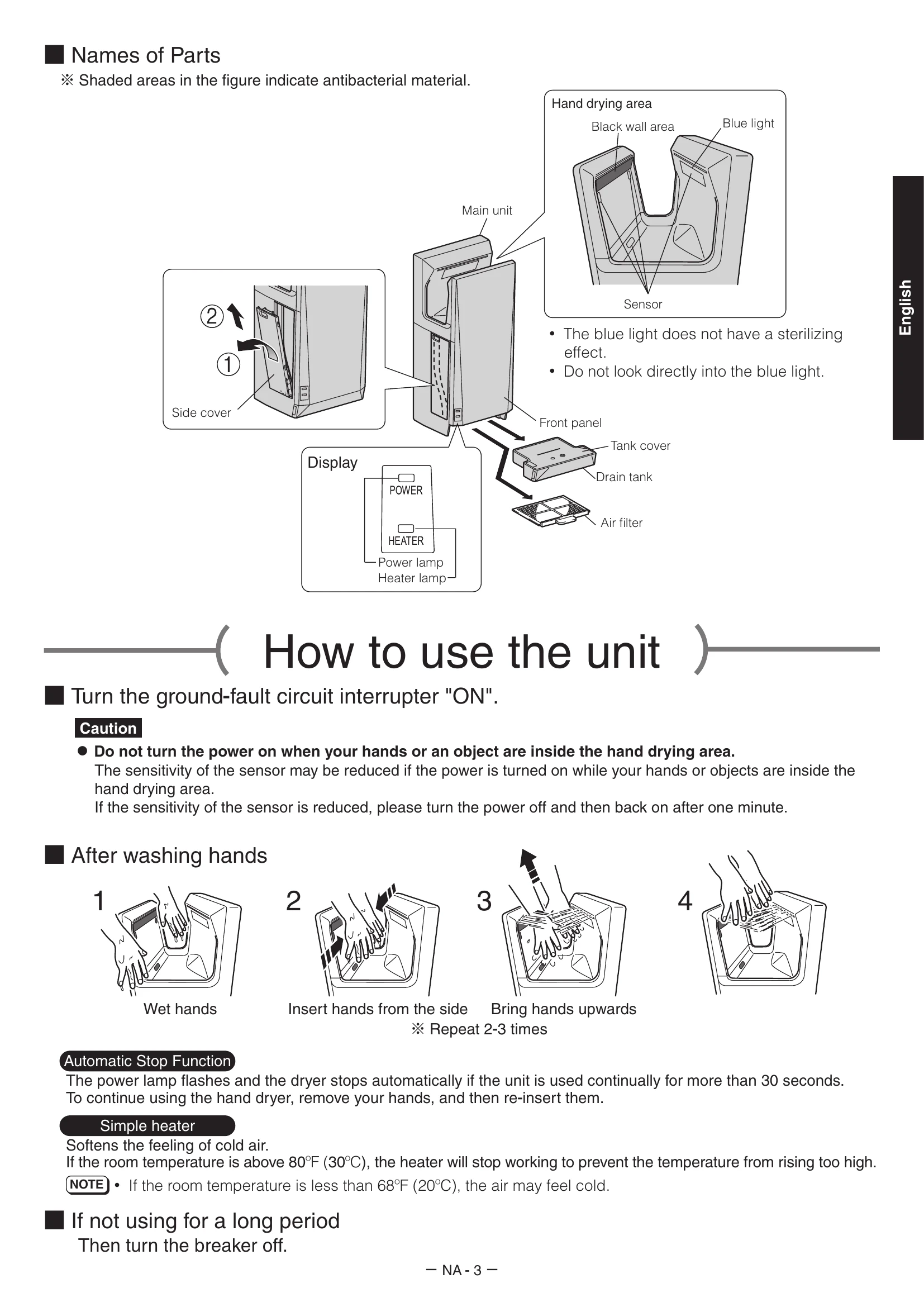

How to Use the Jet Towel Hand Dryer
- Turn the ground-fault circuit interrupter "ON".
- After washing hands, insert hands into the hand drying area, moving them upwards. Repeat 2-3 times. Automatic Stop Function: The dryer stops automatically after 30 seconds of continuous use. Remove and re-insert hands to continue. Simple Heater: Softens cold air. Stops working if room temperature exceeds 80°F (30°C) to prevent overheating.
- If not using for a long period, turn the breaker off.
Troubleshooting and error codes
| Problem | Check | Fix |
|---|---|---|
| No air blows even if hands are inserted | Are any lamps in the display on? Has a blackout occurred? | Turn the ground fault circuit interrupter on. |
| Are you putting your hands in all the way? | Place your hands all the way inside the hand drying area. | |
| Was the ground-fault circuit interrupter turned on while your hands or an object was inside the hand drying area? Is the sensor blocked by dirt or dust? Is the black wall area in the hand drying area white with dirt? | Turn the ground-fault circuit interrupter "OFF", and when the display lamps all go out, remove any foreign substances or dirt. Then turn the ground-fault circuit interrupter "ON". | |
| Stops operating during hand drying | Has the dryer been used continually for more than 30 seconds? | If the hand dryer is used continually for more than 30 seconds, the power lamp flashes, and the dryer automatically stops. To continue using the hand dryer, remove your hands, and then re-insert them. |
| Air is cold Air does not warm up | The heater lamp is off. Air conditioning is not working. Is the room temperature too high? | Contact the dealer about any changes to the settings. Costs are as agreed with the dealer. The air may not feel warm if the room temperature is less than 68°F (20°C). If the room temperature is above 86°F (30°C), the heater will stop working to prevent the temperature from rising too high. |
| The lamp does not light up even when the ground-fault circuit interrupter on. | Has a blackout occurred? The ground fault circuit interrupter is "OFF". | Turn the ground-fault circuit interrupter on. |
| The display section lamp flashes | This may flash if there is a malfunction in the power supply. | Turn the breaker off, check that all of the lamps on the display section are off, and then wait for 1 minute before turning the breaker back on. |
| Crack-like shapes can be seen around the nozzle | There is no unevenness, even when touched by hand. (No feeling of cracking) | This pattern occurs when the product is molded (manufactured). It does not affect product performance, and is not a malfunction. |
| The operating sound is too loud (Air blow is too strong) | Contact your dealer for any changes to settings or adjustments etc. Costs are as agreed with the dealer. | |
| I want to reduce power consumption (want to turn off the heater) | Cautions: Do not attempt to modify or disassemble this unit yourself. |
