Manual for JT-SB216JSH2-W-NE
Uploaded: Nov. 21, 2025, 8:25 p.m.
Manual Publish Date: 2015-11-01

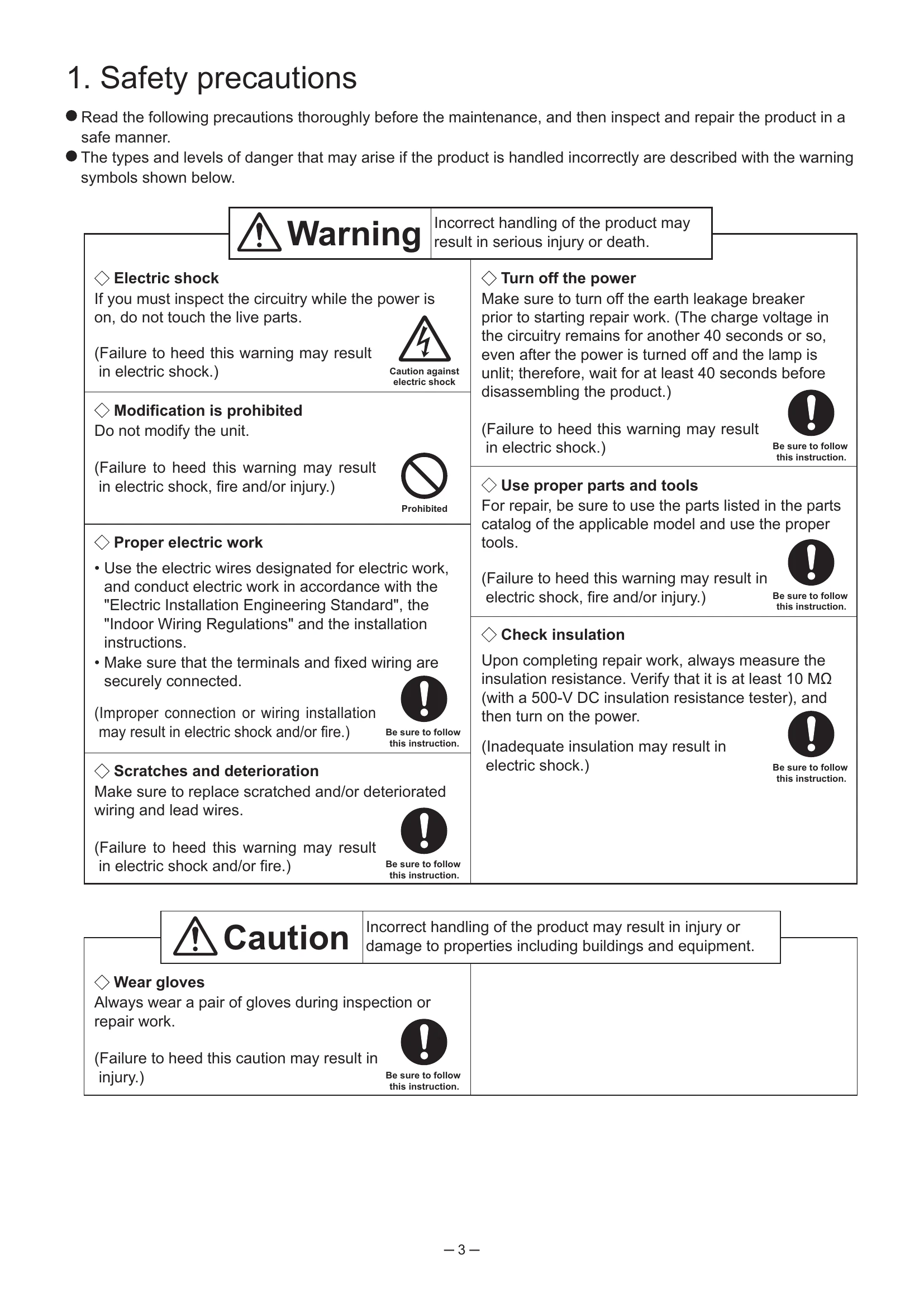

Turning the Power ON/OFF
When the power is turned ON, the power lamp, heater lamp (if applicable), and blue indicators turn on after 1.5 seconds, signaling readiness for operation. The dryer will not operate before this initial sequence. Ensure no hands are in the drying area during this phase for correct sensor sensitivity setup.
If the power is turned OFF, the power lamp and blue indicators turn off, and operation stops. The circuitry requires approximately 40 seconds to discharge retained voltage before maintenance can be performed.
Hand Detection and Operation
Infrared sensors (light emitting and receiving) detect the presence of hands. The dryer starts when the lower or middle sensors detect hands. Operation continues as long as hands are detected, for a maximum of 30 seconds. If no hands are detected for 1.5 to 3 seconds, the motor stops. Re-inserting hands after the 30-second limit will resume operation.
Heater Control (Applicable Models)
The heater turns ON simultaneously with the blower motor. It will not turn ON if the heater switch is OFF or if the ambient temperature detected by the thermostat is 32°C or higher.
Troubleshooting and error codes
| Error Mode Display | Checkpoint | Check Method and Remedy |
|---|---|---|
| (Lamps do not light.) | Power supply voltage | Check that approx. 220 to 240 V AC is supplied at both ends of the power cord connections on the terminal block. If 220 to 240 V AC is not supplied, check the following points. ① Check that the earth leakage breaker is turned ON. ② Check that the power cord is connected securely to the terminal block. |
| Power supply voltage on the power circuit board (JT-30P8H) | Check that approx. 220 to 240 V AC is supplied between TAB1 and TAB2 (orange) on the power circuit board (JT-30P8H). •If 220 to 240 V AC is not supplied, check the following points. Power supply voltage on the filter circuit board (JT-30F8) |
|
| Check that approx. 220 to 240 V AC is supplied to the following points in the order of ① and ②. ① Between TAB20 and TAB21 (red) If approx. 220 to 240 V AC is not supplied, check the power supply voltage of the earth leakage breaker. ② Between TAB22 and TAB23 (orange) If approx. 220 to 240 V AC is not supplied, replace the filter circuit board (JT-30F8). |
||
| •When 220 to 240 V AC is supplied, check the following points. Connector disconnection for the display circuit board (JT-30S5) |
Check if the connector CN19 on the display circuit board (JT-30S5R) or CN18 on the control circuit board (JT-30M8A/JT-30M8/JT-30M9A) is disconnected. | |
| (Tamper-proof timer) | O or ☆ | Dirty sensor window |
| Remaining foreign object | ||
| Connector disconnection for the sensors | ||
| Power | Heater/Check | ☆ |
| Malfunction of the control circuit board (JT-30M8A/JT-30M8/JT-30M9A) | ||
| Motor malfunction | ||
| Blower (assem- bly) malfunction | ||
| Motor overload | ||
| Blown thermal fuse of the motor | ||
| Malfunction of the power circuit board (JT-30P8H) | ||
| Abnormal power supply voltage | ||
| Malfunction of the power circuit board (JT-30P8H) | ||
| Power | Heater/Check | ☆ |
| Connector disconnection | ||
| Malfunction of the control circuit board (JT-30M8A/JT-30M8/JT-30M9A) | ||
| Power | Heater/Check | ● |
| Malfunction of the control circuit board (JT-30M8A/JT-30M8/JT-30M9A) |
