Installation Guide for JT-SB216JSH2-W-NE
Uploaded: Nov. 21, 2025, 7:51 p.m.
Warranty Information
No warranty information is explicitly stated in this installation manual.
Safety Precautions: Read and follow all warnings and cautions. Ensure proper electrical wiring by a certified professional, use correct voltage, and install a ground-fault circuit interrupter. Securely mount the appliance.
Pre-installation Checks: Verify installation environment (avoid extreme temperatures, dust, corrosive gases, direct water contact). Check appliance, accessories, and required tools. Confirm heater and air speed settings with the customer.

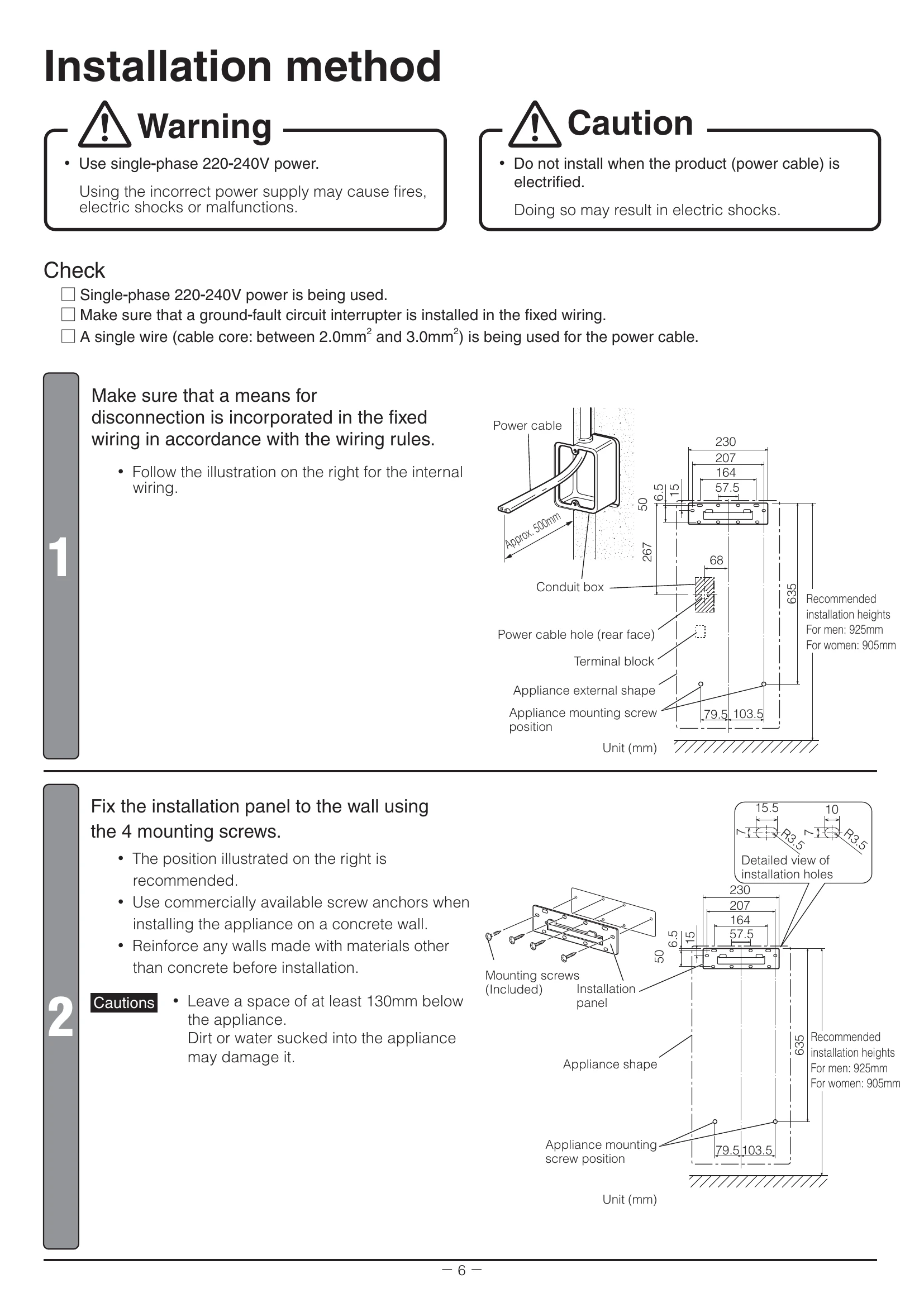

Installation Method: Install the unit by fixing the installation panel, wiring it to the terminal block, and then attaching the main unit. Ensure proper power cable handling and secure mounting. Adjust settings as needed and reattach the front panel and drain tank.
Test Run: Verify power supply voltage, turn on the ground-fault circuit interrupter, and check for air blowing and warm air (if applicable). Ensure the appliance is securely mounted.
Troubleshooting and error codes
| Detected content | Cause |
|---|---|
| Tamper-proof timer | Insertion of foreign objects, continuous operation |
| Motor lock error | Overvoltage impress, undervoltage impress, control circuit |
| Motor overspeed error, step-out error | Air filter, blower, power circuit |
| Overcurrent detected | Blower (short circuit), power circuit (overcurrent) |
| Motor current detection error | Power circuit, disconnected motor |
| Motor signal error | Power circuit, disconnected motor |
| Microcomputer error | Control circuit |
| Fuse fusion | Current fuse, thermal fuse in motor |
