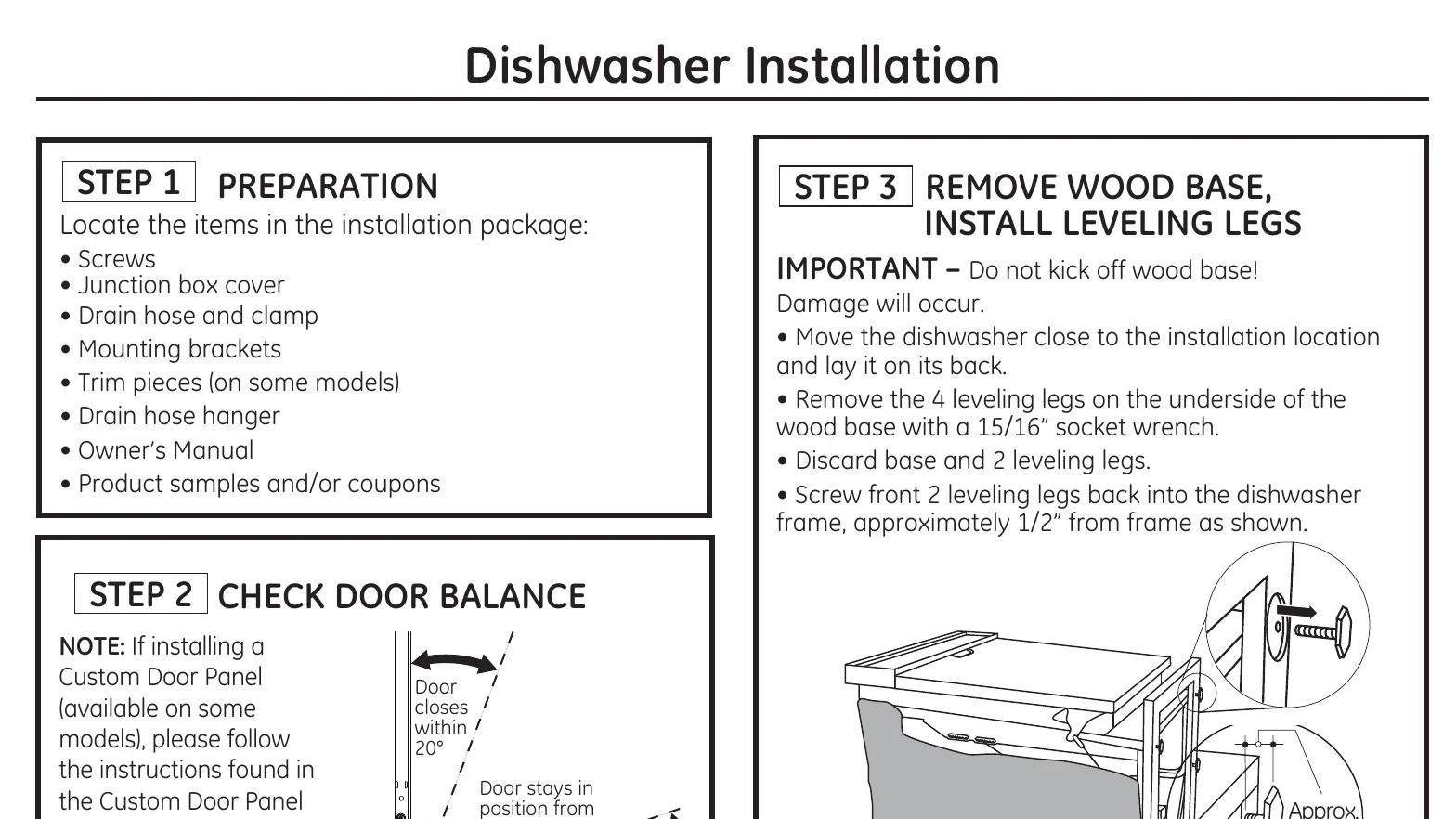

Step 1: Preparation Locate all installation items.

Step 2: Check Door Balance Ensure the door opens and closes smoothly. Adjust springs if needed.

Step 3: Remove Wood Base, Install Leveling Legs Prepare the dishwasher for sliding into its final position.

Step 4: Remove Toekick Temporarily remove the toekick for installation access.

Step 5: Position Sound Barrier Place sound barrier to prevent interference during installation.

Step 6: Remove Floor Protect Disconnect leak sensor and remove floor protect.

Step 7: Install 90° Elbow Thread elbow onto water valve.

Step 8: Install Drain Hose to Drain Loop Connect drain hose to drain loop.

Step 9: Position Water Line and House Wiring Route lines to avoid interference.

Step 10: Install Drain Hose, Through Cabinet Insert drain hose through cabinet opening.

Step 11: Slide Dishwasher Three-Fourths of the Way Into Cabinet Carefully slide the unit into the opening.

Step 12: Install Trim Pieces Attach top and side trim pieces.

Step 13: Install Mounting Brackets Secure brackets to the tub frame or sides.

Step 14: Push Dishwasher Into Final Position Slide the unit fully into the opening, ensuring proper alignment.

Step 15: Level Dishwasher Ensure the unit is level for optimal operation.

Step 16: Position Dishwasher, Secure to Countertop or Cabinet Fasten the dishwasher securely.

Step 17: Connect Water Supply Connect the water supply line.

Step 18: Connect Drain Line Connect the drain hose to the appropriate outlet.

Step 19: Connect Power Supply Secure house wiring to the junction box.

Step 20: Pretest Checklist Review all installation steps for completeness.

Step 21: Dishwasher Wet Test Run a test cycle to check for leaks and proper operation.

Step 22: Replace Floor Protect Reinstall the floor protect pan and secure it.

Step 23: Position Insulation, Pre-Toekick, and Sound Barrier Install insulation and related components.

Step 24: Replace Toekick Attach the toekick.

Step 25: Literature Leave all literature with the consumer.

Installation Guide for 31-31530
