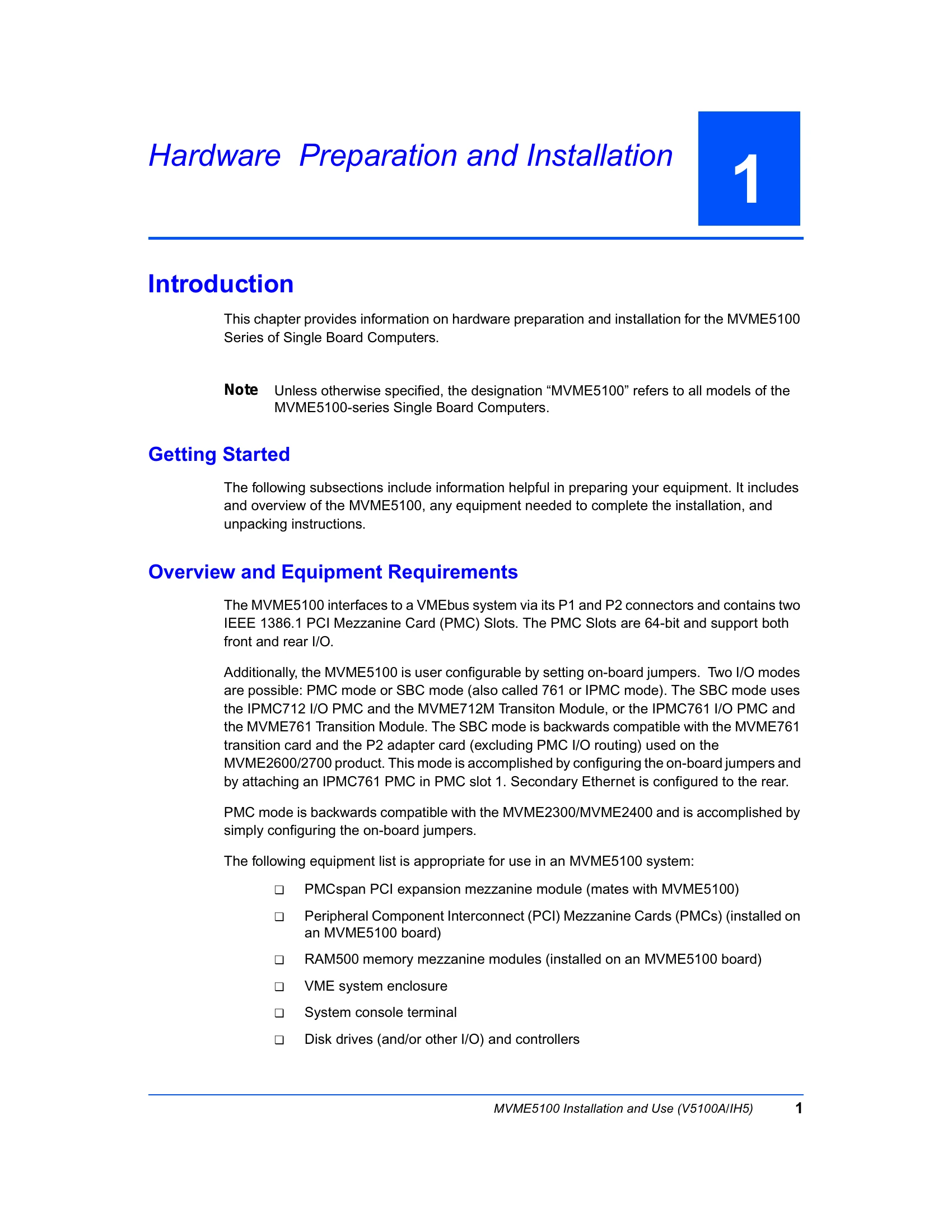

Installation Guide for MVME5100
Uploaded: Nov. 21, 2025, 6:18 p.m.
Manual Publish Date: 2006-04-01
Warranty Information
None
The MVME5100 Single Board Computer Installation and Use manual provides information for installing and configuring the MVME5100. It covers hardware preparation, installation, and operation. Key sections include hardware configuration, jumper settings, PMC/SBC mode selection, system powerup, switches and indicators, and connectors. The manual details the PPCBug firmware, functional descriptions, RAM500 memory expansion, pin assignments, and programming the MVME5100, including memory maps and considerations. It also includes specifications, troubleshooting, and thermal analysis.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Board does not initialize. | Power connector not seated properly. | Reseat the power connector. |
| Board does not initialize. | Incorrect jumper settings. | Verify jumper settings. |
| Board does not initialize. | Faulty power supply. | Check power supply. |
| System does not boot. | Incorrect boot device configuration. | Verify boot device settings. |
| System does not boot. | Corrupted firmware. | Reload firmware. |
| System does not boot. | RAM failure. | Test RAM. |
