Parts/Service for Moto G LTE (2nd Generation)
Uploaded: Nov. 21, 2025, 6:29 p.m.
Manual Publish Date: 2015-01-20
Warranty Information
Refer to the Battery Safety Guidelines for warranty-related information.

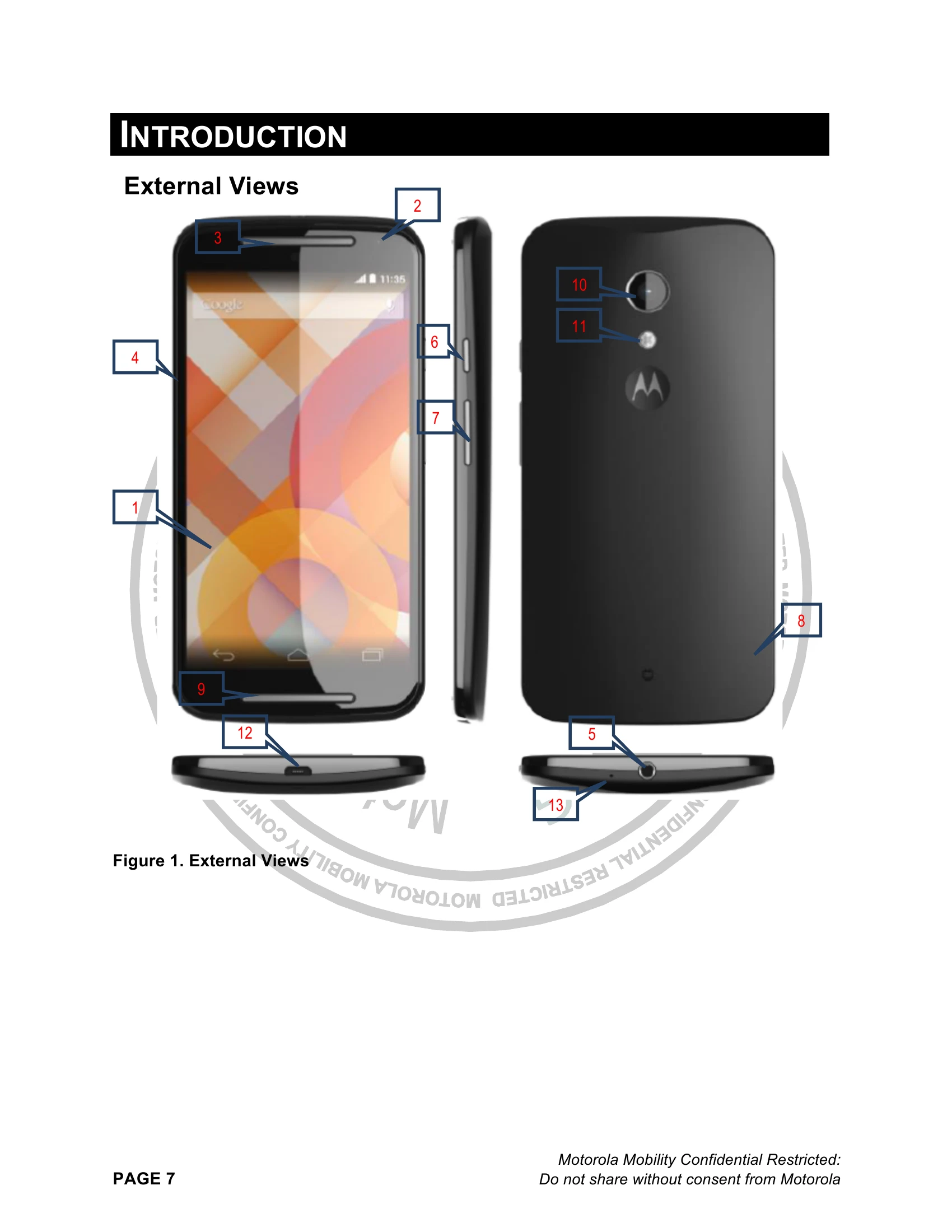

This manual covers the disassembly and assembly procedures for the Motorola Moto G LTE (2nd Generation). It includes safety information, external views with part identification, PSCD gap measurements, exploded views, and detailed step-by-step instructions for disassembling and reassembling various components such as the battery door, rear housing, PCB, and more. The manual emphasizes safety precautions, especially regarding battery handling and electrostatic discharge.
Troubleshooting and error codes
| No | Item | Gap Spec |
|---|---|---|
| 1 | The gap around the cover glass to the front housing | MAX: 0.3mm |
| 2-1 | The step between front housing and cover glass at top and bottom side | Cover glass recess Min: 0.05mm |
| 2-2 | The step between front housing and cover glass at center of left/right side | cover glass recess Min:0mm |
| 3-1 | The step between front housing and speaker trim | Cover glass recess Min: 0.05mm |
| 3-2 | The step between front housing and speaker trim | Cover glass recess Min: 0.05mm |
| 4-1 | The gap around front housing and speaker trim | MAX: 0.75mm |
| 4-2 | The gap around front housing and speaker trim | MAX: 0.75mm |
| 5 | The gap around the rear cover and camera trim | MAX: 0.3mm |
| 6 | The step between the rear cover and camera trim | MAX:0.2mm |
| 7 | The gap around the camera | MAX: 0.2mm |
| 8 | Concentricity between imager center eye to camera lens artwork | MAX: 0.35mm |
| 9 | The gap around rear cover and flash lens | MAX: 0.3mm |
| 10 | The step between rear cover and flash lens | MAX: 0.2mm |
| 11 | The step between front housing and rear cover | MAX: 0.25mm |
| 12 | The gap between the front housing and volume key | MAX:0.3mm |
| 13 | The gap between the front housing and the power key | MAX:0.3mm |
| 14 | The gap between the rear cover and volume key | MAX:0.3mm |
| 15 | The gap between the rear cover and the power key | MAX:0.3mm |
| 16 | The gap between the front housing and the rear cover | MAX: 0.35mm |
| 17 | The gap between the micro USB and rear cover | MAX: 0.25mm |
| 18 | The gap between the front housing and the HSJ trim | MAX:0.4mm |
| 19 | The gap between the rear cover and the HSJ trim | MAX:0.3mm |
| 20 | Concentricity between imager center eye to lens artwork | MAX: 0.3mm |
| 21 | Parallelism of screen and lens artwork in X | |X1-X2|≤0.2mm |
| 22 | Parallelism of screen and lens artwork in Y | |Y1-Y2|≤0.2mm |
