Warranty Information

Refer to the Safety and Regulatory Information document for warranty details.

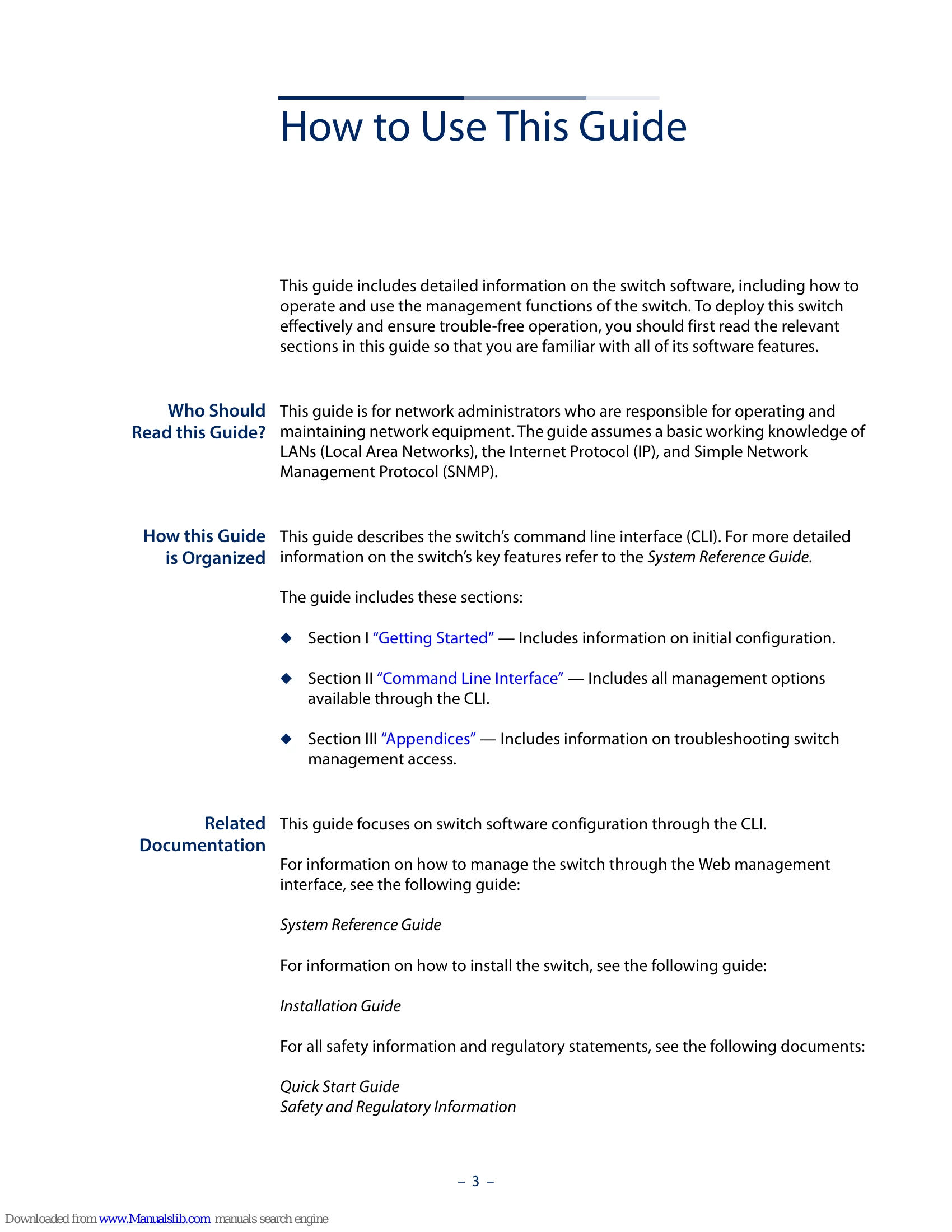

How to Use This Guide

This guide provides detailed information on the switch software, including how to operate and use its management functions. To effectively deploy the switch and ensure trouble-free operation, it is recommended to read the relevant sections first to become familiar with all software features.

Who Should Read this Guide?

This guide is intended for network administrators responsible for operating and maintaining network equipment. It assumes a basic working knowledge of LANs, IP, and SNMP.

How this Guide is Organized

The guide covers the switch's command line interface (CLI) and is organized into three sections:

  • Section I: "Getting Started": Covers initial configuration.
  • Section II: "Command Line Interface": Details all management options available through the CLI.
  • Section III: "Appendices": Provides information on troubleshooting switch management access.

Related Documentation

For information on managing the switch via the Web management interface, refer to the System Reference Guide. For installation instructions, consult the Installation Guide. Safety and regulatory information can be found in the Quick Start Guide and Safety and Regulatory Information.

Troubleshooting and error codes

IssuePossible CauseSolution
Switch does not power on. Power cord is not properly connected. Ensure the power cord is securely connected to the switch and the power outlet.
Cannot access the CLI. Console cable is not connected properly or terminal settings are incorrect. Verify console cable connections. Ensure terminal settings (e.g., baud rate, data bits, parity, stop bits) match the switch's default settings.
No network connectivity. Incorrect IP address or subnet mask configured. Verify IP address, subnet mask, and default gateway configuration. Check cable connections and link status.
PoE devices are not receiving power. PoE budget exceeded or port is not configured for PoE. Check the total power consumption of connected PoE devices against the switch's PoE budget. Ensure the specific port is enabled for PoE.
