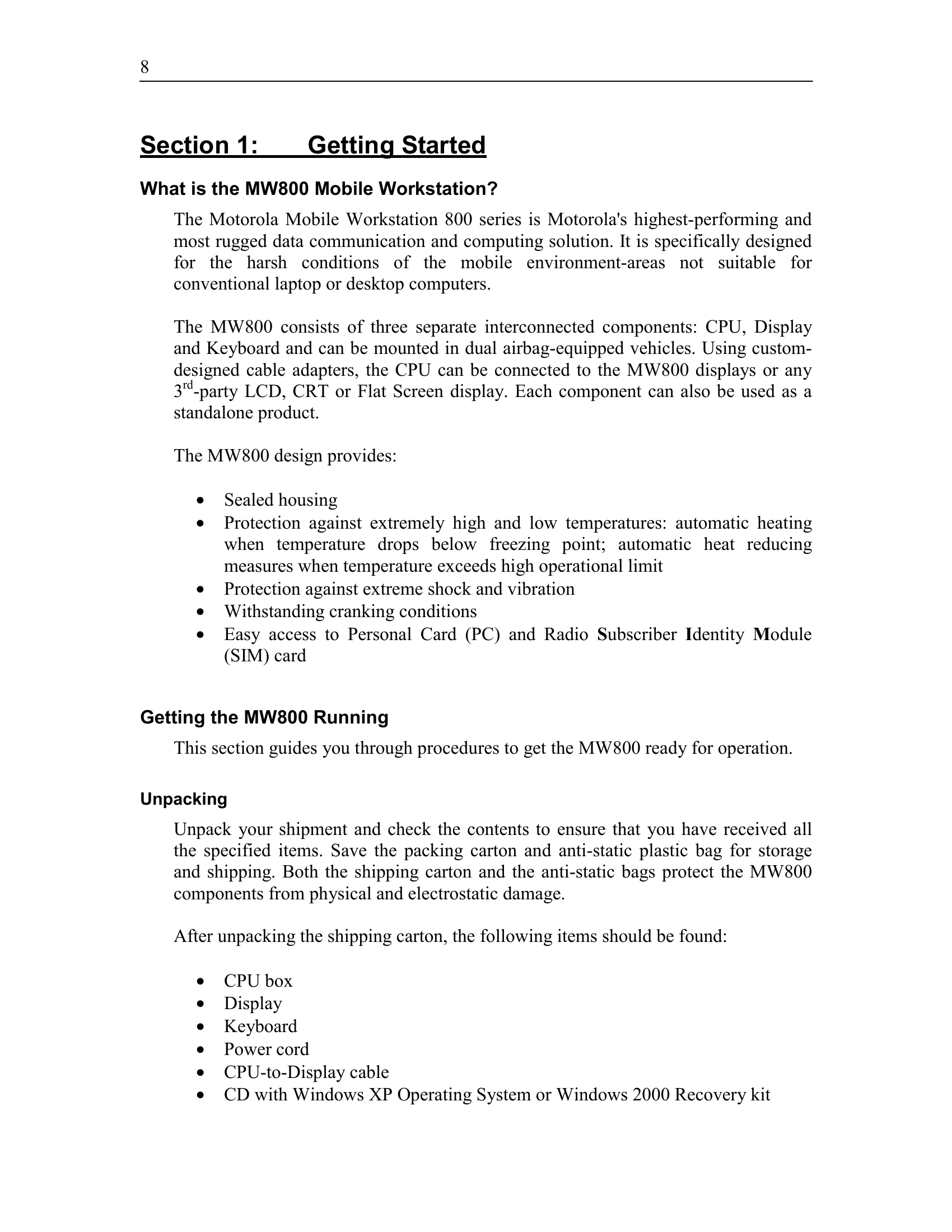

Manual for MW800
Uploaded: Nov. 21, 2025, 6:08 p.m.
Warranty Information
Motorola warrants the product against material defects for one year from shipment.
- Powering On: Turn the main power switch to ON on the CPU box back panel, then press the power button on the CPU box or display. Wait for the operating system to start.
- Powering Off: Use the Windows operating system Shut Down dialog box. Do not turn off the main power switch while the OS is running.
- Basic Operations: Includes normal operation, handling extreme temperatures and discharged batteries, and normal/extreme shutdown procedures.
- System Components: Familiarize yourself with the CPU box, display, and keyboard components.
- Installation: Refer to the separate Installation Manual for detailed instructions.
Troubleshooting and error codes
| Message | Do the following |
|---|---|
| Vehicle Battery is Low. The system will shutdown in 3 minutes. | The car battery voltage is below of the low operational limit. Please save your work before shutting down |
| MW800 CPU temperature is high. The system will shutdown in 3 minutes. | The internal temperature is higher than the valid limit. Please save your work before shutting down. Never turn on the device until it cools down to normal operating temperature. |
| Warning condition is over MW800 CPU temperature is low. The system will shutdown in 3 minutes. | The internal temperature is below of the valid limit. Please save your work before shutting down. Never turn on the device until it heats up to normal operating temperature. |
| PC Card error was detected. Please remove the PC Card device and then press OK. | Card Bus over-current is discovered. Please remove the PC Card device and than press OK |
| MW800 hard drive heater may be malfunctioned. | Heater over-current is discovered. Please, contact your system administrator. |
| Over current is detected in device connected to Firewire port. | The MW800 cannot work with this Firewire device. Please, disconnect the device. |
