Installation Guide for E464
Uploaded: Nov. 21, 2025, 7:49 p.m.
Warranty Information
Refer to the product documentation or NEC support for specific warranty details.

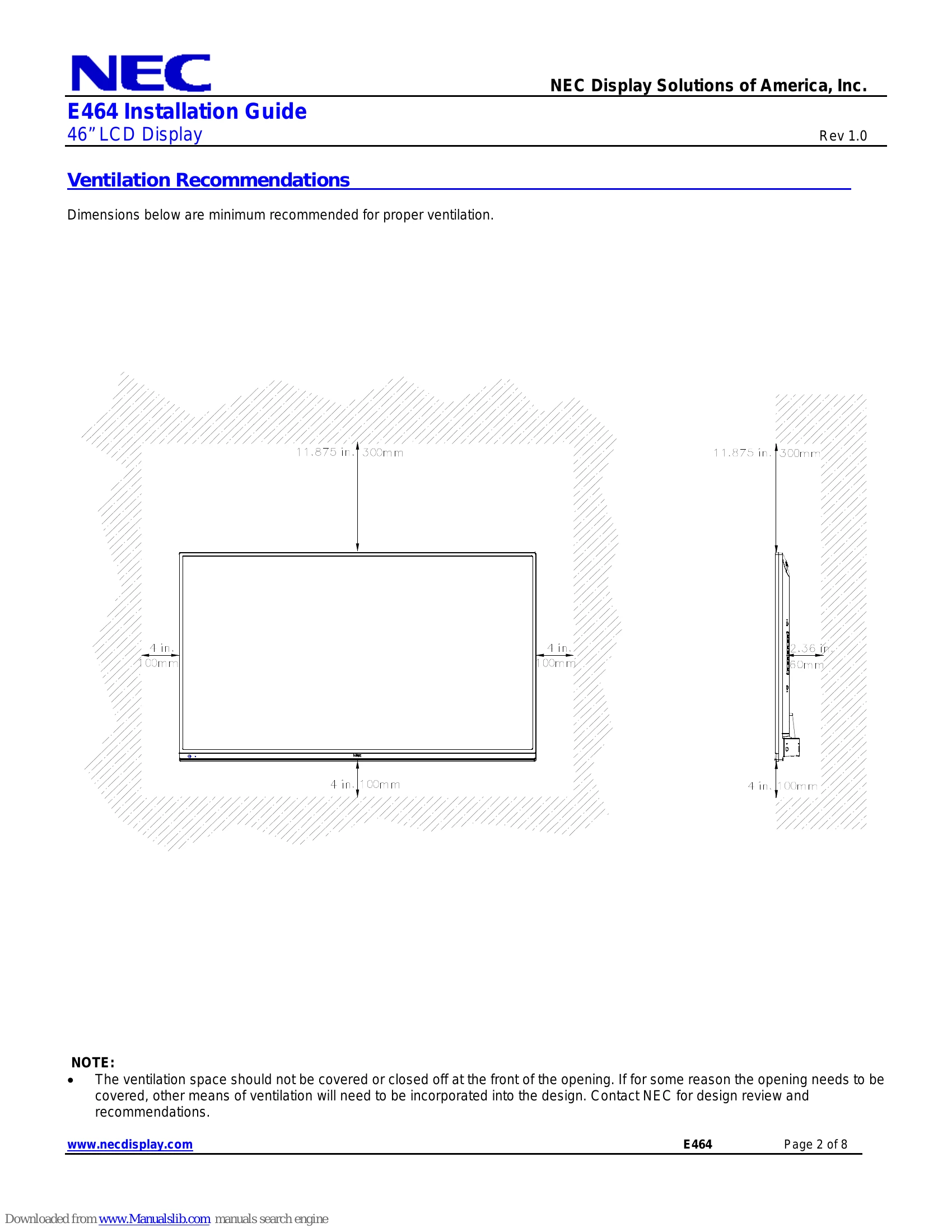

This document provides essential information for the installation of the NEC E464 46" LCD Display. It covers product details, ventilation requirements, physical dimensions (with and without stand), wall mount dimensions, input panel locations, and control codes. Important notes on installation safety, orientation, and measurement variations are also included.
Troubleshooting and error codes
| Function | Code Data |
|---|---|
| POWER ON | 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D |
| POWER OFF | 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D |
| INPUT SWITCH VGA (15pin HD) | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D |
| INPUT SWITCH HDMI1 | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 31 03 72 0D |
| INPUT SWITCH HDMI2 | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 32 03 71 0D |
| INPUT SWITCH HDMI3 | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 31 33 03 70 0D |
| INPUT SWITCH Video (Composite) | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D |
| INPUT SWITCH TV | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 41 03 03 0D |
| INPUT SWITCH Video (Component) | 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D |
| AUDIO MUTE ON | 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D |
| AUDIO MUTE OFF | 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D |
| KEY LOCK All Buttons | 01 30 41 30 45 30 41 02 30 30 46 42 30 30 30 32 03 72 0D |
| KEY LOCK Control Buttons Only | 01 30 41 30 45 30 41 02 30 30 46 42 30 30 30 31 03 71 0D |
| KEY LOCK Unlock | 01 30 41 30 45 30 41 02 30 30 46 42 30 30 30 30 03 70 0D |
| VGA AUTO SETUP Up | 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D |
| TV CHANNEL Down | 01 30 41 30 45 30 41 02 30 30 38 42 30 30 30 31 03 0F 0D |
| TV CHANNEL Up | 01 30 41 30 45 30 41 02 30 30 38 42 30 30 30 32 03 0C 0D |
| Analog Closed Caption Off | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 31 03 78 0D |
| CC1 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 32 03 7B 0D |
| CC2 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 33 03 7A 0D |
| CC3 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 34 03 7D 0D |
| CC4 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 35 03 7C 0D |
| TT1 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 36 03 7F 0D |
| TT2 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 37 03 7E 0D |
| TT3 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 38 03 71 0D |
| TT4 | 01 30 41 30 45 30 41 02 31 30 38 34 30 30 30 39 03 70 0D |
| Digital Closed Caption Off | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 31 03 04 0D |
| Srv1 | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 32 03 07 0D |
| Srv2 | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 33 03 06 0D |
| Srv3 | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 34 03 01 0D |
| Srv4 | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 35 03 00 0D |
| Srv5 | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 36 03 03 0D |
| Srv6 | 01 30 41 30 45 30 41 02 31 30 41 31 30 30 30 37 03 02 0D |
