Warranty Information

Refer to the "Limited Warranty" section for details on warranty information.

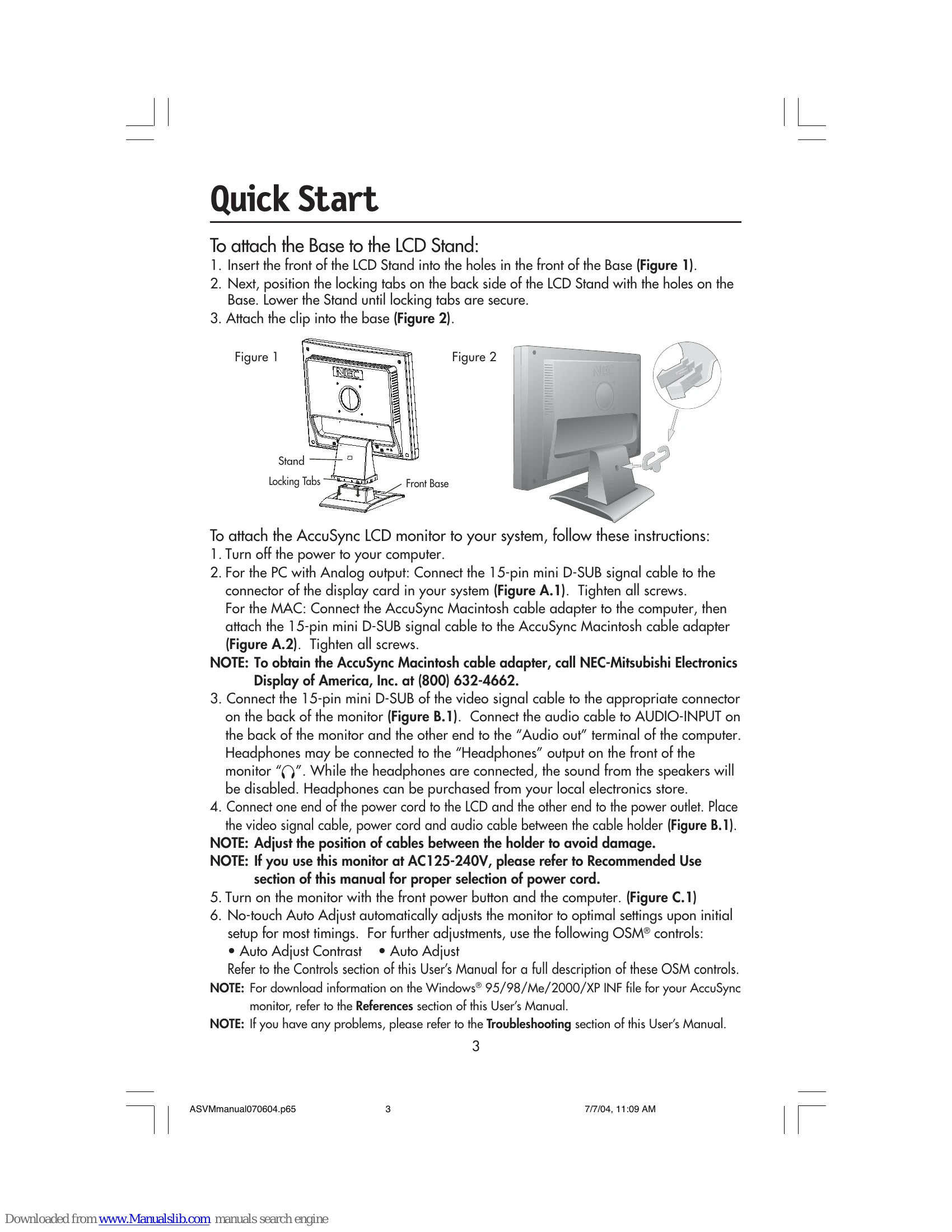

Quick Start:
  1. Attach the Base to the LCD Stand.
  2. Connect the AccuSync LCD monitor to your system: turn off computer power, connect the video signal cable, and power cord.
  3. Turn on the monitor and computer. Use 'Auto Adjust' for optimal settings.
Controls:
  • Use the OSM (On-Screen Manager) buttons (SELECT, +, -, AUTO/RESET) to navigate menus and adjust settings like Brightness, Contrast, Volume, etc.
  • 'Auto Adjust' automatically optimizes image position, H. Size, and Fine settings.
  • Various menus (Main, Sub, Tool) allow detailed adjustments.
Recommended Use:
  • Ensure proper placement and adjustment to reduce fatigue.
  • Position the monitor at eye level, between 16-28 inches away.
  • Minimize glare by angling the monitor away from light sources.
  • Clean with a lint-free cloth.
  • Avoid fixed patterns for extended periods to prevent image persistence.

Troubleshooting and error codes

Problem Possible Cause Solution
No picture Signal cable not connected properly.
Display card not seated.
Power switches off.
Unsupported mode.
Compatibility issues.		 Connect signal cable.
Reseat display card.
Turn on power switches.
Select supported mode.
Check compatibility and settings.
Power Button does not respond Monitor not reset. Unplug power cord to reset.
Image Persistence Constant images displayed for too long. Turn off monitor for the duration the image was displayed. Use screen saver.
Image is unstable, unfocused or swimming Signal cable not fully attached.
Incorrect FINE control setting.
Compatibility issues.
Incorrect video mode.		 Attach signal cable.
Adjust FINE control.
Check compatibility and timings.
Change to non-interlace mode, 60Hz.
LED on monitor is not lit Power switch off or power cord disconnected. Turn on power switch and connect power cord.
Display image is not sized properly Incorrect H.SIZE.
Unsupported mode.		 Adjust H.SIZE.
Select supported mode.
No Video Computer in power-saving mode. Wake computer by touching keyboard or mouse.
No Sound Speaker cable not connected.
Mute activated.
Volume is at minimum.		 Connect speaker cable.
Deactivate mute.
Increase volume.
