Manual for N8406-022A

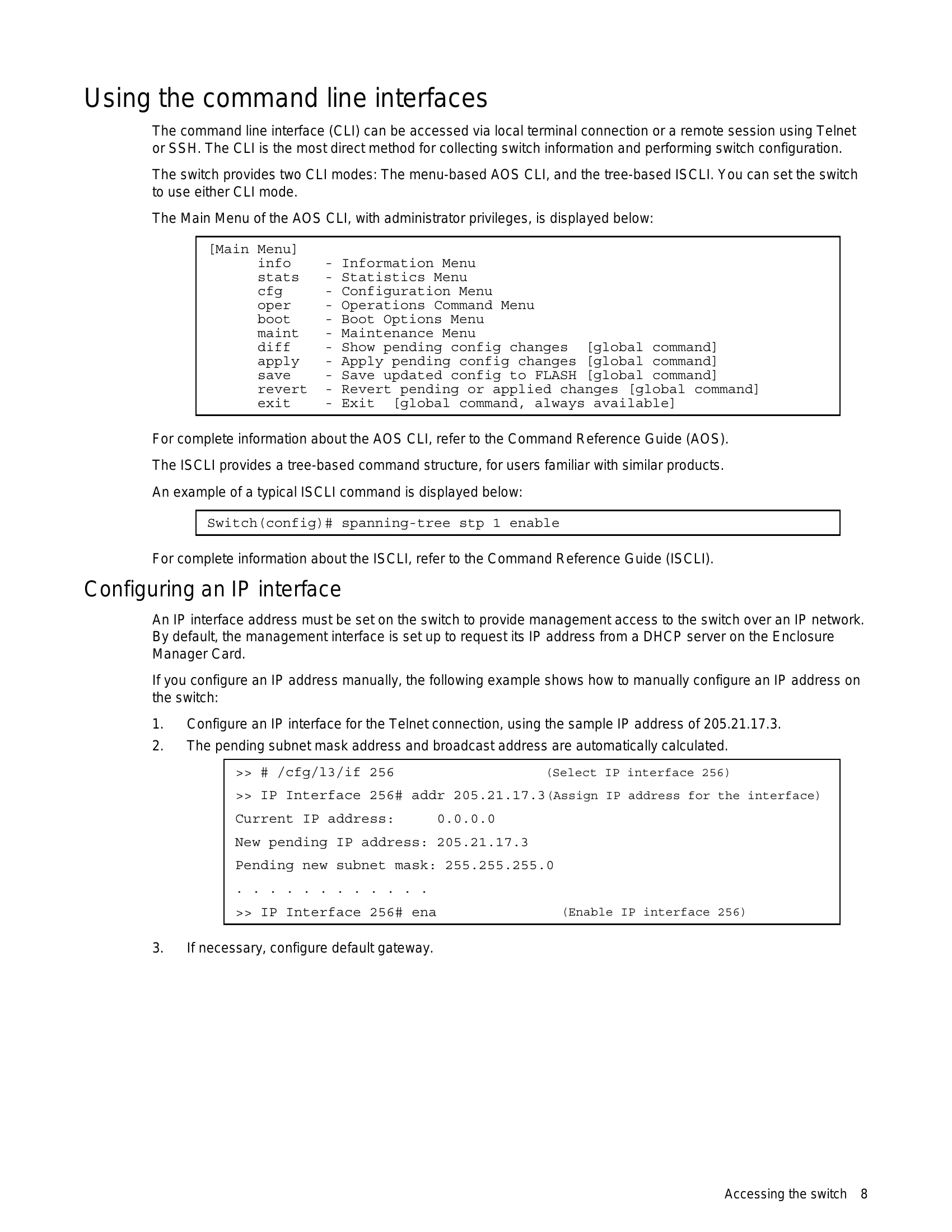

Accessing the switch

This guide describes how to use and configure the switch on the Layer 2 switch mode. It covers accessing the switch via IP network, ports and trunking, VLANs, Spanning Tree Protocol, IGMP Snooping, Remote Monitoring, High Availability features like Uplink Failure Detection, and troubleshooting tools.

Management Network

Details on connecting to the switch via console port, Telnet, and Secure Shell. Configuration of IP interfaces and default gateways is explained.

Using the Browser-based Interface

Provides access to common configuration, management, and operation features through a web browser, organized into Configuration, System, Switch ports, Layer 2, RMON, Layer 3, Uplink Failure Detection, Statistics, and Dashboard menus.

Using Simple Network Management Protocol

Supports SNMP v1.0 and v3.0 for network management. Configuration of community strings, SNMP users, and trap hosts is described.

Secure access to the switch

Covers limiting access by IP address range and securing management through RADIUS and TACACS+ authentication, including how they work and how to configure them.

Troubleshooting tools

Includes Port Mirroring, console and Syslog messages, Ping, Trace route, statistics, and customer support tools like Offline Diagnostics and Software Panics.
