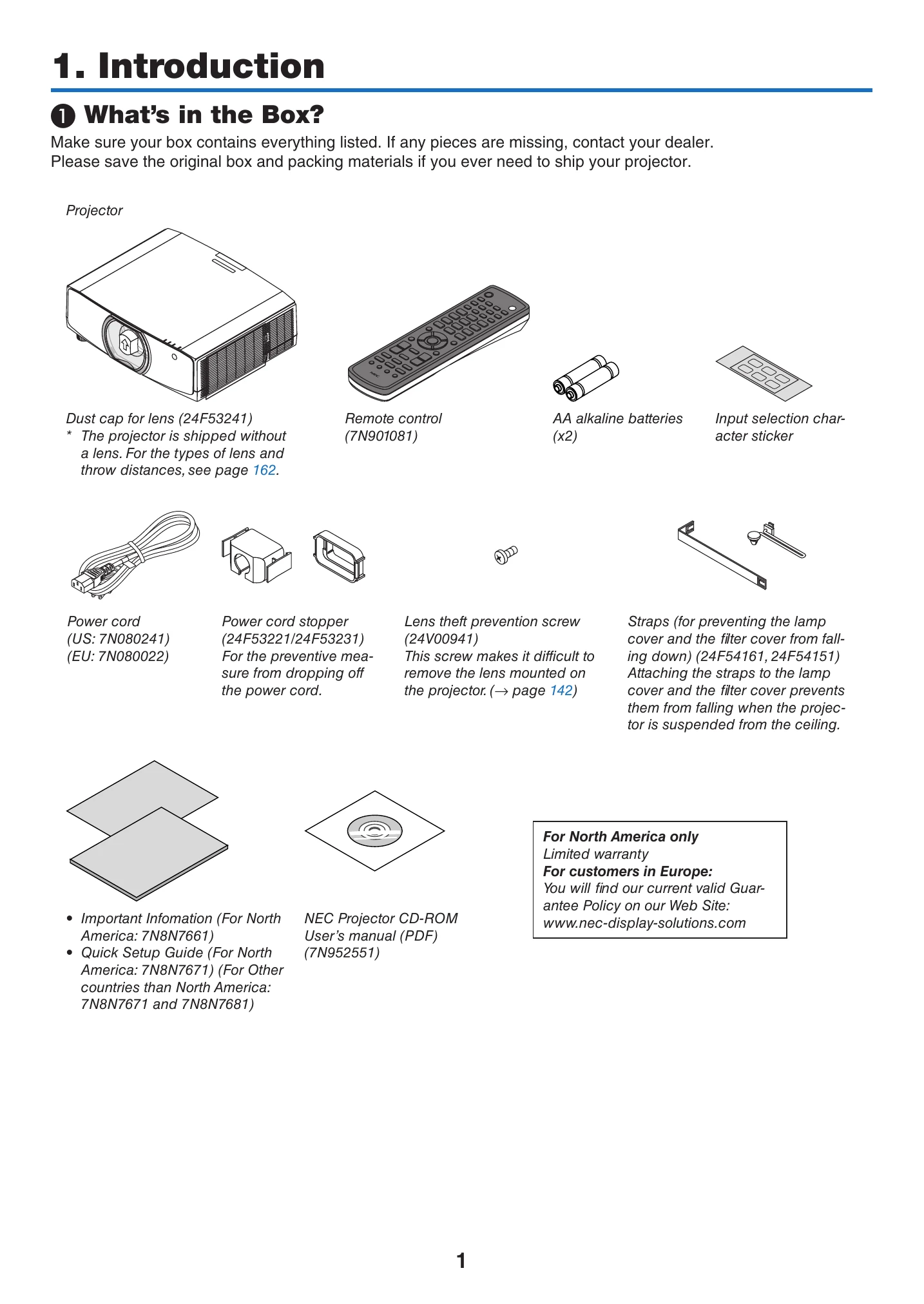

Manual for PA803U/PA723U/PA653U/PA853W/PA703W/PA903X

Manual for PA803U/PA723U/PA653U/PA853W/PA703W/PA903X

Brand: NEC

Category: Other

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:36 p.m.

Manual Publish Date: 2016

Warranty Information

Register your projector to activate limited parts and labor warranty and InstaCare service.

Basic Operation

  1. Projecting an Image: Connect the computer and power cord, then turn on the projector.
  2. Adjusting the Image: Use lens shift, focus, zoom, and tilt foot to position and size the image. Optimize computer signal using Auto Adjust.
  3. Selecting Source: Choose the computer or video source from the input options.
  4. Convenient Features: Utilize functions like turning off image/sound, shifting menu position, freezing pictures, changing eco mode, and correcting keystone distortion.
  5. Multi-Screen Projection: Project multiple images simultaneously or across multiple projectors using PIP/Picture by Picture, TILING, or EDGE BLENDING.
  6. Using On-Screen Menu: Navigate menus to adjust various settings including input, picture, image options, video, 3D settings, and lens memory.
  7. Connecting to Equipment: Connect lenses, computers, video equipment, and network devices.

Maintenance

Regularly clean filters, lens, and cabinet. Replace the lamp and filters as needed according to usage hours.

Troubleshooting

Refer to the troubleshooting section for common problems and solutions related to power, image display, color, sound, remote control, and indicators.

Troubleshooting and error codes

Problem Check These Items
Does not turn on or shut down • Check power cord and button. Ensure lamp cover is installed. Check for temperature errors. Lamp may fail to light. Set [FAN MODE] to [HIGH ALTITUDE] for high altitudes. Fans may run after lamp is turned off. Ensure timers are off.
Will turn off • Ensure [OFF TIMER], [AUTO POWER OFF] or [PROGRAM TIMER] is off. Check appropriate input selection. Ensure cables are connected properly.
No picture • Use menus to adjust brightness/contrast. Ensure lens cover is open. Reset settings. Enter security keyword if enabled. For HDMI/DisplayPort issues, reinstall drivers. Check HDBaseT compatibility. Connect projector before powering PC.
Picture suddenly becomes dark • Check for Forced ECO mode due to high temperature. Select appropriate [WALL COLOR]. Adjust [HUE].
Color tone or hue is unusual • Check for appropriate color in [WALL COLOR]. Adjust [HUE].
Image isn't square to the screen • Reposition projector. Perform [KEYSTONE] correction.
Picture is blurred • Adjust focus. Ensure distance is within lens adjustment range. Check for condensation on the lens.
Flicker appears on screen • Set [FAN MODE] appropriately for altitude. Check computer resolution and frequency. Adjust computer image manually.
Image is scrolling vertically, horizontally or both • Check computer resolution and frequency. Adjust computer image manually.
Remote control does not work • Install new batteries. Ensure no obstacles. Stay within range.
Indicator is lit or blinking • See the POWER/STATUS/LAMP Indicator.
Cross color in RGB mode • Press AUTO ADJ. Adjust manually with [CLOCK]/[PHASE].
