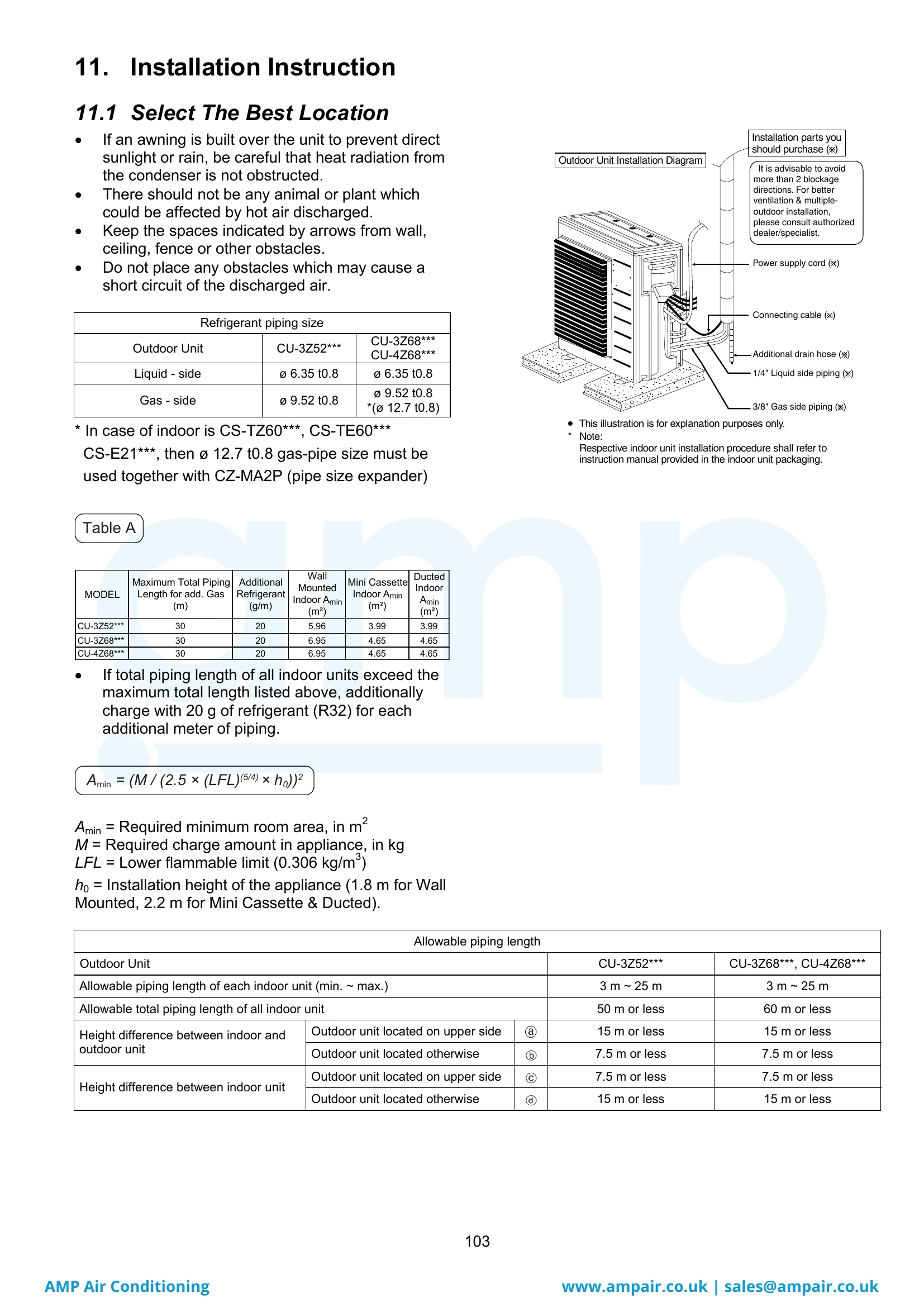

Manual for CU-3Z52TBE
Uploaded: Nov. 21, 2025, 8:18 p.m.
- Cooling Operation: Outdoor fan speed is adjusted according to outdoor ambient temperature, with controls for RPM free, RPM controlled, and stopped states based on temperature thresholds. Annual Cooling control enables operation when outdoor ambient temperature is low, adjusting fan motor speed based on outdoor pipe temperature. Cooling Powerful Operation 1 concentrates outdoor unit capability for a targeted indoor unit by temporarily stopping capability to other indoor units.
- Heating Operation: Outdoor fan speed is adjusted based on outdoor ambient temperature for heating overload control. Heating Room Temp Sampling Control allows indoor room temperature sampling to improve judgment accuracy. Powerful Operation 2 provides faster cooling/heating operation compared to normal operation. Outdoor Quiet Cooling Operation Control provides quiet cooling when only 1 indoor unit is in operation.
Troubleshooting and error codes
| Diagnosis display | Abnormality or protection control | LED 6 | LED 5 | LED 4 | LED 3 | LED 2 | LED 1 | Abnormality judgement | Protection operation | Problem | Check location |
| H11 | Indoor/outdoor sensor connection communication | ○ | ○ | Operation can start only after opening | Indoor/outdoor sensor connection indication not establish | • Indoor/outdoor connection wire • Indoor/outdoor connection cable • Specification and availability is reliable in catalogue |
|||||
| H12 | Indoor unit capacity mismatched | ○ | ○ | ○ | 90s after power supply | — | Total indoor cooling capability more than maximum limit, or number of indoor unit less than two. | • Specification and availability is reliable in catalogue | |||
| H15 | Compressor temperature sensor abnormality | ○ | ○ | ○ | Continuous for 5s | — | Compressor temperature sensor circuit abnormality | • High pressure sensor • Load wire and connector • Compressor sensor • Load wire and connector |
|||
| H16 | Outdoor current transformer (CT) abnormality | ○ | ○ | ○ | Continuous for 5s | — | Current transformer faulty or compressor faulty | • Outdoor PCB faulty • Compressor sensor faulty |
|||
| H27 | Outdoor air temperature abnormality | ○ | ○ | Continuous for 5s | — | Outdoor air sensor open circuit or short circuit | • Outdoor air sensor • Outdoor air sensor wire and connector |
||||
| H28 | Outdoor heat exchanger temperature sensor 2 abnormality | ○ | ○ | Continuous for 5s | — | Outdoor heat exchanger temperature sensor 2 open circuit or short circuit | • Outdoor heat exchanger • Outdoor heat exchanger temperature sensor 2 wire and connector |
||||
| H33 | Indoor / outdoor communication abnormality | ○ | ○ | Continuous for 5s | — | Indoor and outdoor sensor units different | • Indoor and outdoor sensor units check | ||||
| H36 | Outdoor gas pipe temperature sensor abnormality | ○ | ○ | Continuous for 5s | Heating protection operation only | Outdoor gas pipe temperature sensor open or short circuit | • Outdoor gas pipe temperature sensor • Load wire and connector |
||||
| H37 | Indoor liquid pipe temperature sensor abnormality | ○ | ○ | Cooling protection operation only | Indoor liquid pipe temperature sensor open or short circuit | • Indoor liquid pipe temperature sensor • Load wire and connector |
