Brand: Panasonic
Category: Automotive Electronics
Document Type: Parts/Service
Language: EN

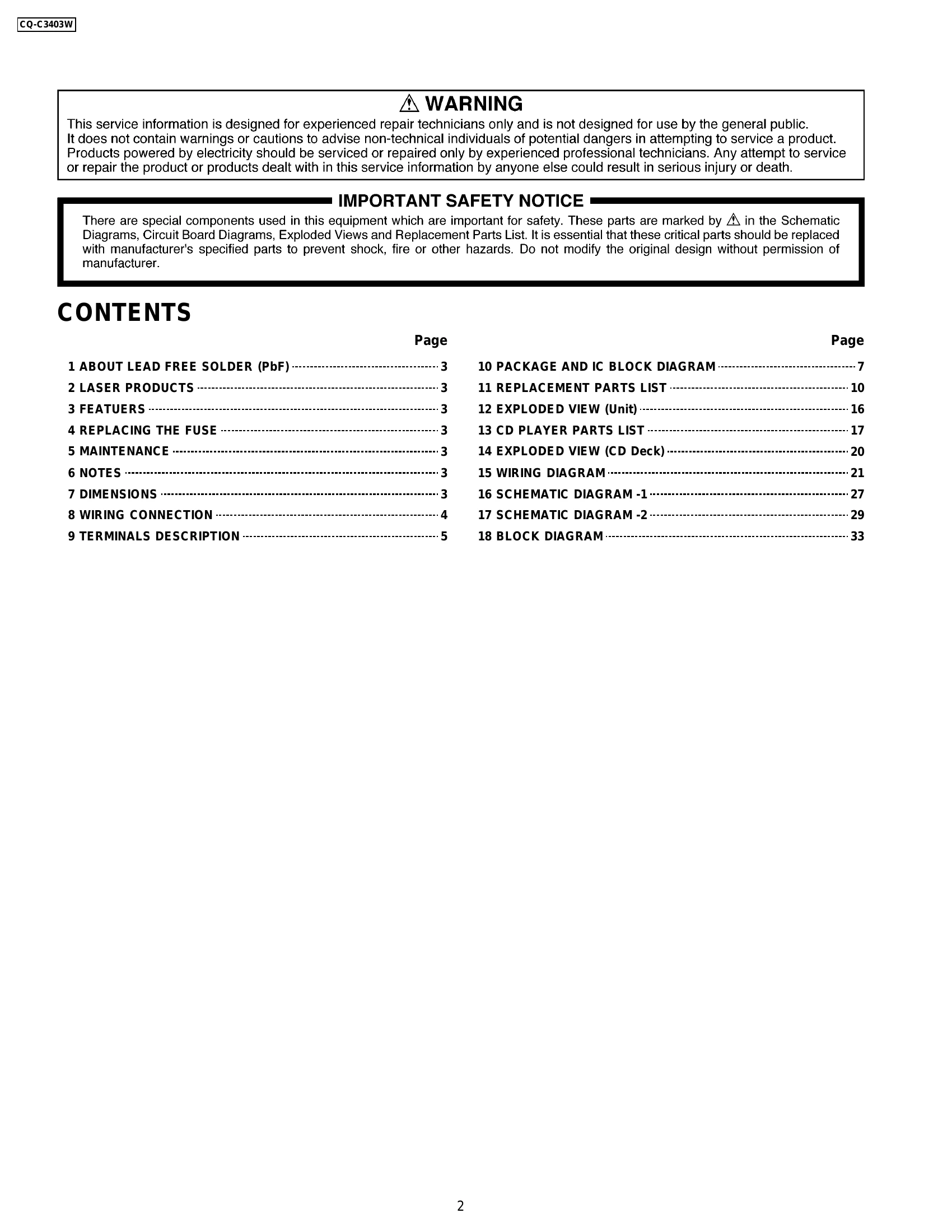

Parts/Service for CQ-C3403W
Uploaded: Nov. 21, 2025, 6:13 p.m.
Manual Publish Date: 2006-01-01
Main Unit Features:
- AM/FM Radio reception
- CD playback (WMA/MP3 compatible)
- AUX input for external audio sources
- Pre-amp output for external amplifiers
- Adjustable Bass and Treble controls
- Detachable face panel
CD Player Specifications:
- Sampling Frequency: 8 Times Oversampling
- DA Converter: 1bit DAC System
- Frequency Response: 20Hz to 20kHz (±1dB)
- Signal to Noise Ratio: 96dB
Radio Specifications:
- FM Frequency Range: 87.5MHz - 108MHz
- AM Frequency Range: 531kHz - 1,602kHz
- Usable Sensitivity (FM): 6dB/µV (S/N 30dB)
