Brand: Panasonic
Category: Automotive Electronics
Document Type: Parts/Service
Language: EN

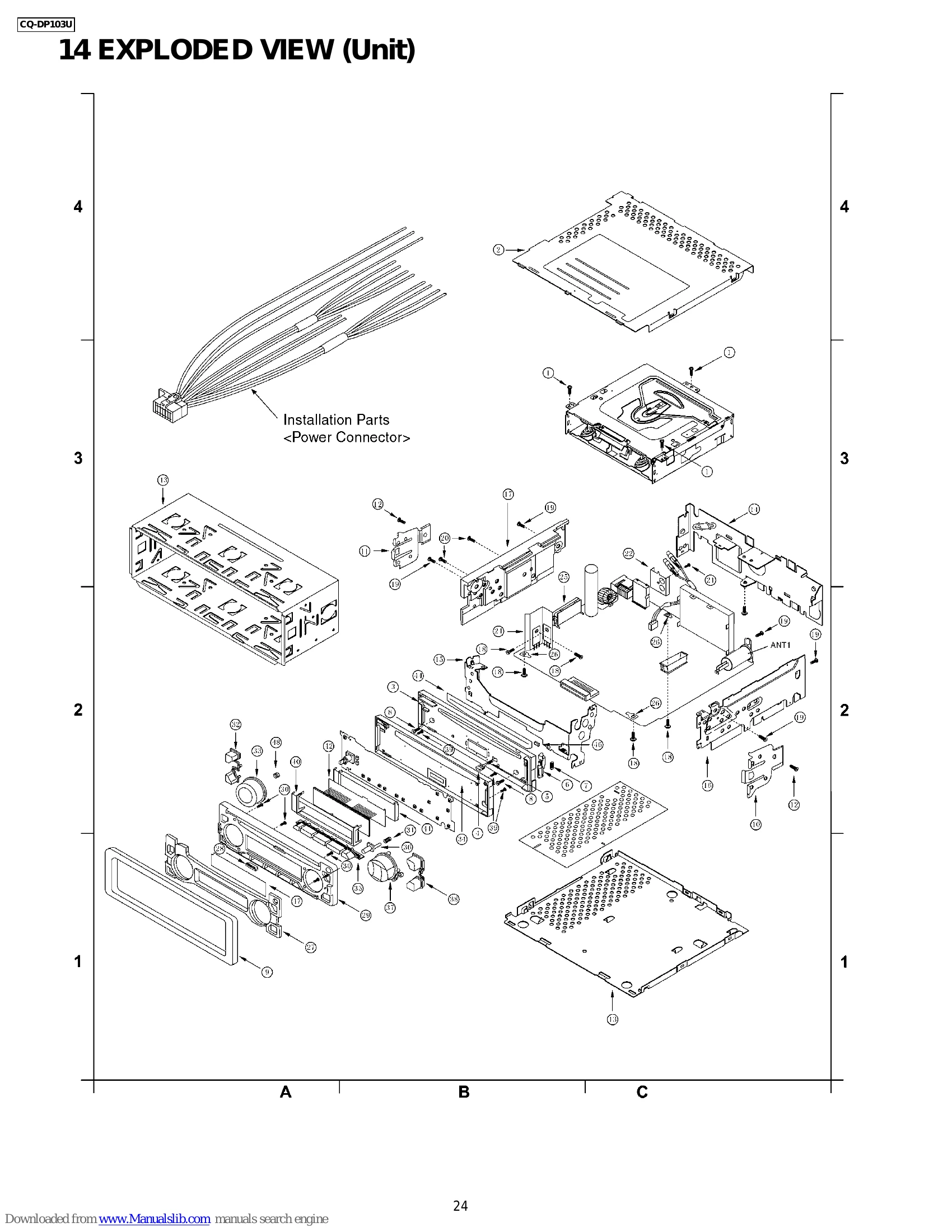

Parts/Service for CQ-DP103U
Uploaded: Nov. 21, 2025, 8:53 p.m.
Warranty Information
This manual is a service manual and does not contain specific warranty period information.
General Operation:
- Features PLL synthesized tuning with 18 FM and 6 AM presets.
- Digital servo for reliable CD playback.
- Removable face plate for security and convenience.
- Amplifier output of 45W per channel.
- Supports a wide frequency range for both FM and AM radio.
- Offers adjustable bass and treble controls.
- Includes pre-amp output for connecting external amplifiers.
Troubleshooting and error codes
| Symptom | Possible Cause | Remedy |
|---|---|---|
| No power | Fuse blown | Replace the fuse with one of the same rating (15A). |
| No sound / Low sound | Speaker connections loose | Check and secure all speaker connections. |
| Amplifier mute activated | Ensure amplifier control signals are correct. | |
| CD not playing | Disc dirty or damaged | Clean or replace the CD. |
| Laser pickup malfunction | Service or replace the laser pickup assembly. | |
| CD servo system error | Check CD servo block connections and components. | |
| Radio reception poor | Antenna connection faulty | Check and secure the antenna connection. |
| Tuner IC malfunction | Service or replace the tuner IC. | |
| Display not working | Display PCB connection loose or faulty | Check connections to the display PCB; service or replace if necessary. |
