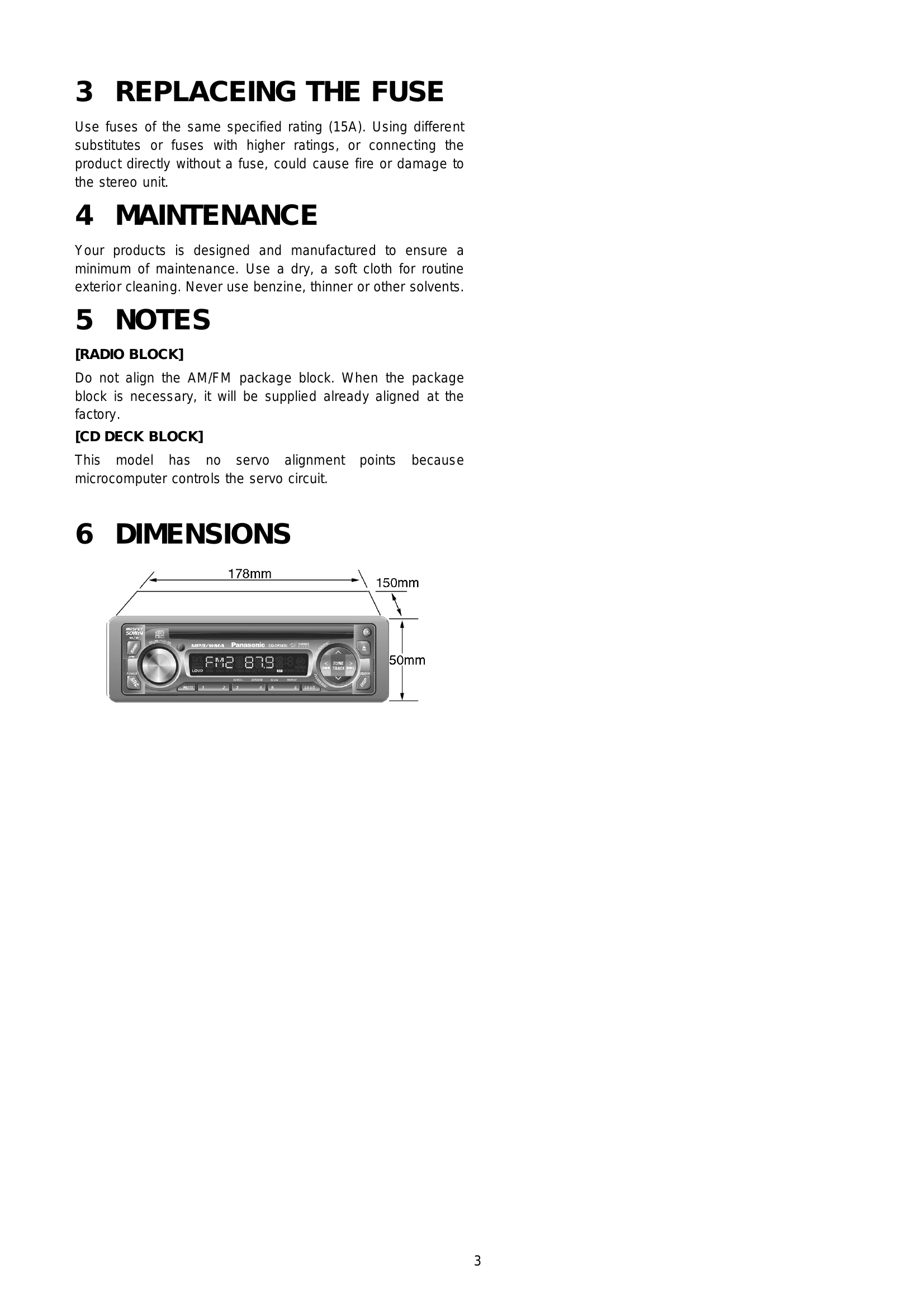

Manual for CQ-DP383U
Uploaded: Nov. 21, 2025, 6:59 p.m.
Warranty Information
Specifications and design are subject to possible modification without notice due to improvements.
The Panasonic CQ-DP383U is a removable front panel MP3 CD player and receiver with changer control. Key features include PLL synthesized tuning, 18 FM and 6 AM presets with preset scan, and digital servo for reliable CD playback. It also offers a removable faceplate for security and convenience. The device supports MP3/WMA playback and has a MOSFET 50Wx4 amplifier. It includes standard car stereo functions such as volume control, tuning, track selection, and display options. The unit also features a CD player with a 32 times oversampling rate and an Astigma 3-beam pick-up type.
Troubleshooting and error codes
| No. | Subject | Diagnosis Method | Countermeasures |
| 1 | No sound | Check connection of speaker leads. | Connect speaker leads correctly. |
| Check setting of MUTE. | Release MUTE. | ||
| Check connection of power connector (ACC, BAT, GND). | Connect power connector correctly. | ||
| 2 | No CD playback | Check insertion of CD. | Insert CD correctly. |
| Check disc loading mechanism. | Clean the disc loading mechanism. | ||
| Check condition of optical pick-up. | Clean the optical pick-up lens. | ||
| 3 | Distorted sound | Check speaker impedance. | Use speakers with impedance of 4-8Ω. |
| Check connection of speaker leads. | Connect speaker leads correctly. | ||
| 4 | Display is not lit | Check connection of power connector (ACC, BAT, GND). | Connect power connector correctly. |
| 5 | Cannot receive FM/AM | Check antenna connection. | Connect antenna correctly. |
| Check FM/AM tuner sensitivity. | Refer to specification for usable sensitivity. |
