Getting Ready
- Connect the AC adapter and power cord.

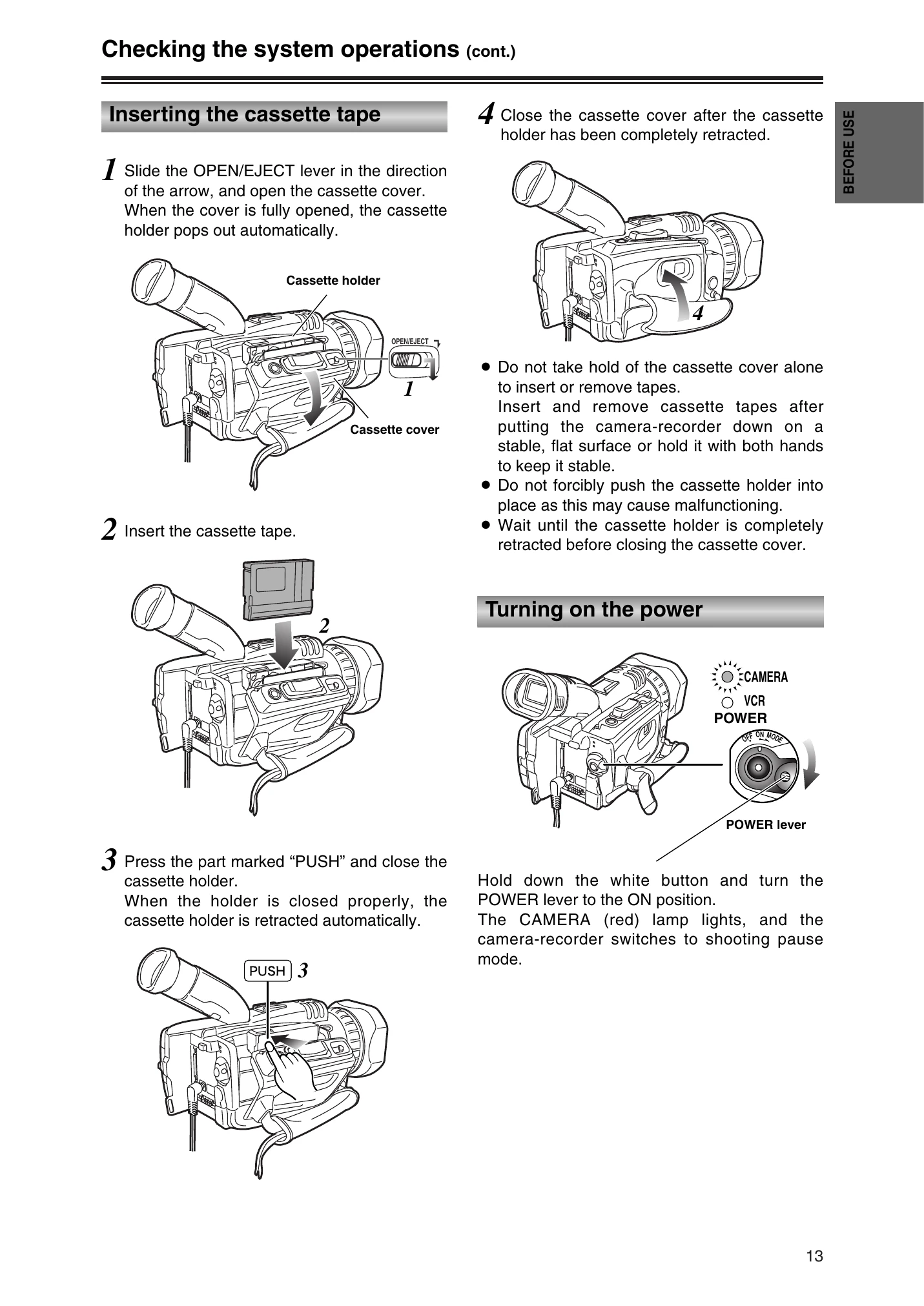

- Insert the Mini DV cassette tape.
- Turn on the power.
Shooting
- Set the selector to AUTO.
- Remove the lens cap.
- Look through the viewfinder.
- Press the START/STOP button to begin recording.
Checking Recordings
- Open the LCD monitor.
- Press the playback button to review the last few seconds of footage.
Removing the Tape
- Open the cassette cover.
- Remove the cassette tape.
- Close the cassette cover.
Turning Off the Power
- Turn the POWER lever to OFF.
- Disconnect the power cord.
Troubleshooting and error codes
| Issue | Cause | Solution |
| No power | Battery and AC adapter not connected properly. | Check connections. |
| Power shuts off for no apparent reason | Camera-recorder left in shooting pause mode for over 5 minutes. | Check TAPE PROTECT setting. |
| Power goes off as soon as it is turned on | Battery run out. | Recharge or replace battery. |
| Condensation formed. | Remove cassette and wait for it to dry. | |
| Battery runs down quickly | Battery not fully charged. | Charge until CHARGE lamp goes off. |
| Used in a cold place. | Operating time reduced in low temperatures. | |
| Battery reached end of service life. | Replace battery. | |
| Battery cannot be charged | DC cord connected to AC adapter. | Disconnect DC cord. |
| Cannot record | Cassette tape tab in SAVE position. | Set tab to record position. |
| Cassette tape at its end. | Replace tape. | |
| POWER lever not ON. | Turn POWER lever ON. | |
| Condensation formed. | Remove cassette and wait for it to dry. | |
| Tape may have snapped. | Check tape. | |
| Other types of video recording | Subject not brought into focus automatically. | Ensure auto focus mode is established, or use manual focus. Some subjects are difficult to focus on automatically. |
| Editing | Cannot perform audio dubbing. | Cassette tab must not be in SAVE position. LP mode tapes cannot be used for audio dubbing. |
| Displays | Time code display issue. | Reverse slow mode may not register regular count; not a malfunction. |
| Remaining tape display differs. | Display may be inaccurate for short recordings or show 2-3 minutes less than actual remaining time. | |
| Playback (images) | Cannot play back tape. | Ensure VCR lamp is lit. |
| Mosaic-like noise appears. | Inherent to digital video technology. | |
| No playback images on TV. | Ensure TV input selector is set to 'video input'. | |
| Playback images not displayed clearly. | Check if video heads are dirty. | |
| Playback (sound) | No sound from speaker. | Check volume level. |
| Hear two sets of sound. | Check AUDIO item setting (MIX) or if audio dubbing was performed. | |
| Original sound erased during audio dubbing. | Ensure 32K (12bit) was selected for original recording if using 48K (16bit) for dubbing. | |
| Other | Cannot remove cassette tape. | Ensure power is supplied. Can remove even if POWER lever is OFF. |
| Cannot perform other operations after removing cassette. | Check for condensation or if EJECT switch was operated improperly. | |
| Remote control unit does not work. | Check button battery or remote control settings. | |
| Rattling sound. | Normal for some internal parts in VCR mode or when power is OFF. |
