Warranty Information

This product has a 1-year parts and 90-day labor warranty for the video camera.

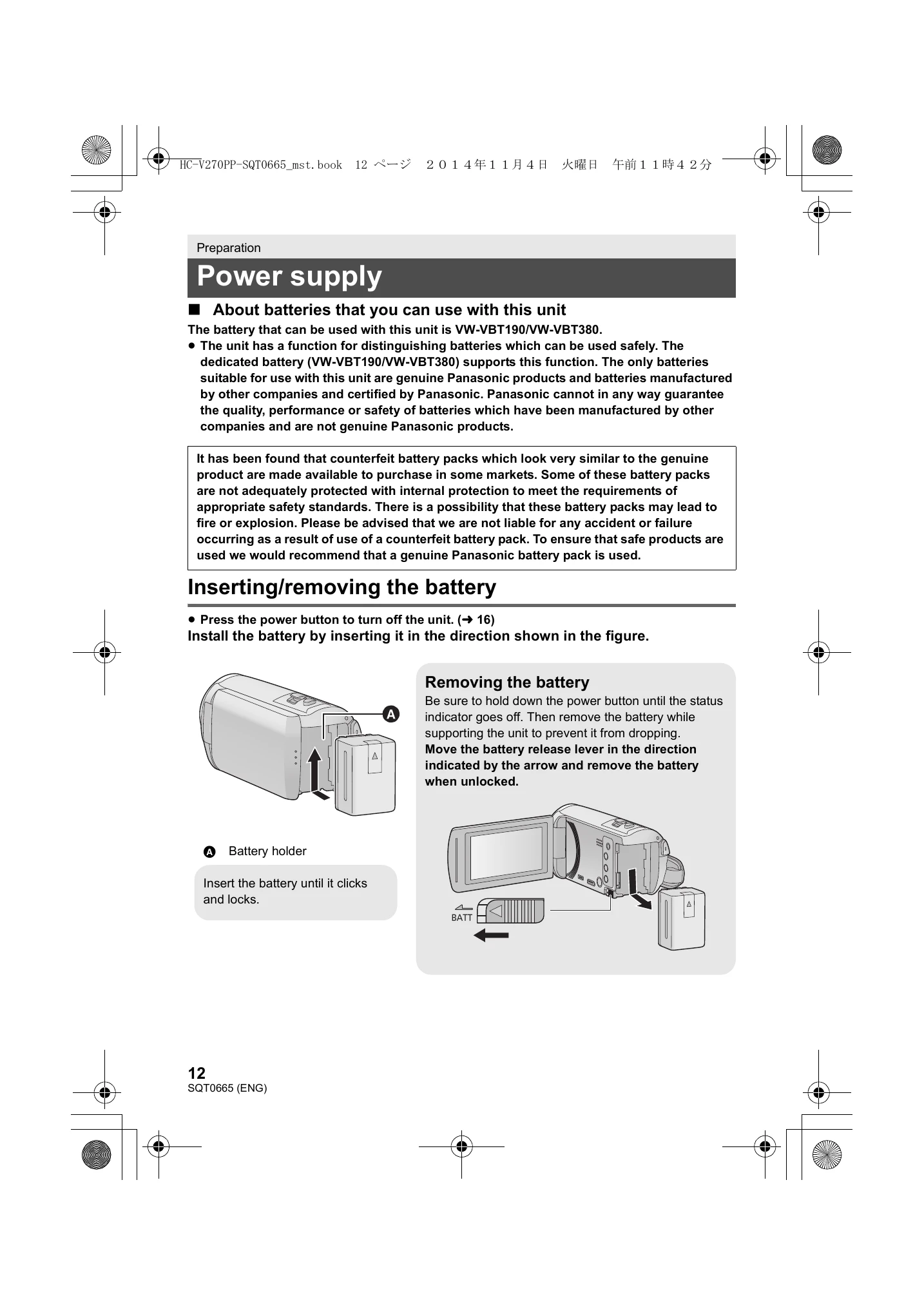

  • Power Supply: Insert/remove and charge the battery.
  • Recording to a card: Insert/remove and format the SD card.
  • Turning the unit on/off: Use the power button or LCD monitor.
  • Selecting a mode: Switch between Recording and Playback modes, and between Motion Picture and Still Picture recording modes.
  • Touch screen operation: Touch, slide, and use operation icons.
  • Setting date and time: Set the clock and world time.
  • Recording motion pictures: Start and pause recording.
  • Recording still pictures: Press the button halfway for focus and fully to capture.
  • Using the zoom: Use the zoom lever.
  • Motion picture/Still picture playback: Select the mode and desired format for playback.

Troubleshooting and error codes

ProblemCheck points
A clicking sound is heard when the unit is shaken.This is the sound of the lens moving and is not a defect. This sound will no longer be heard when the unit is turned on and set this unit to the Motion Picture Recording Mode or Still Picture Recording Mode.
Object seems to be warped.Object seems to be warped slightly when the object moves across the image very fast, but this is because the unit is using MOS for the image sensor. This is not a malfunction.
The lens or LCD monitor fog up.This is due to condensation. It is not a malfunction. Please refer to page 8.

ProblemCheck points
This unit cannot be turned on.Charge the battery again to ensure it is sufficiently charged. (→ 13)
This unit does not stay on long enough.• In cold places, the battery using time becomes shorter. • The battery has a limited life. If the operating time is still too short even after the battery is fully charged, the battery has worn out and needs to be replaced.
Battery runs down quickly.• Remove the battery or AC adaptor, wait about 1 minute and then reconnect the battery or AC adaptor. Then about 1 minute later, turn on the unit again. (Conducting the above operation while the media is being accessed may damage the data on the media.) • If normal operation is still not restored, detach the power connected, and consult the dealer who you purchased this unit from.
This unit cannot be operated though it is turned on.The unit has automatically detected an error. Restart the unit by turning the unit off and on. • The unit will be turned off in about 1 minute if the unit is not turned off and on. • Repair is needed if it is repeatedly displayed even if it is restarted. Detach the power connected, and consult the dealer who you purchased this unit from. Do not attempt to repair the unit by yourself.
This unit does not operate normally.
"ERROR OCCURRED. PLEASE TURN UNIT OFF, THEN TURN ON AGAIN." is displayed.

ProblemCheck points
Color or brightness of the image changes, or you may see horizontal bars in the image.Color or brightness of the image may change, or you may see horizontal bars in the image when the object is recorded under fluorescent light, mercury light or sodium light, etc., but this is not a malfunction.
The LCD monitor flickers indoors.• In Motion Picture Recording Mode, record in Intelligent Auto Mode/Intelligent Auto Plus Mode or set the shutter speed to 1/60 in areas where the power supply frequency is 60 Hz, or 1/100 in areas of 50 Hz. • In Still Picture Recording Mode, this will not affect the recorded image.

ProblemCheck points
Scenes/still pictures cannot be played back.Any scenes/still pictures where the thumbnails are displayed as ! cannot be played back.
