Warranty Information

Panasonic provides a 1-year warranty on parts and labor for this high definition video camera.

\n

Preparation

\n

Power Supply

\n
    \n

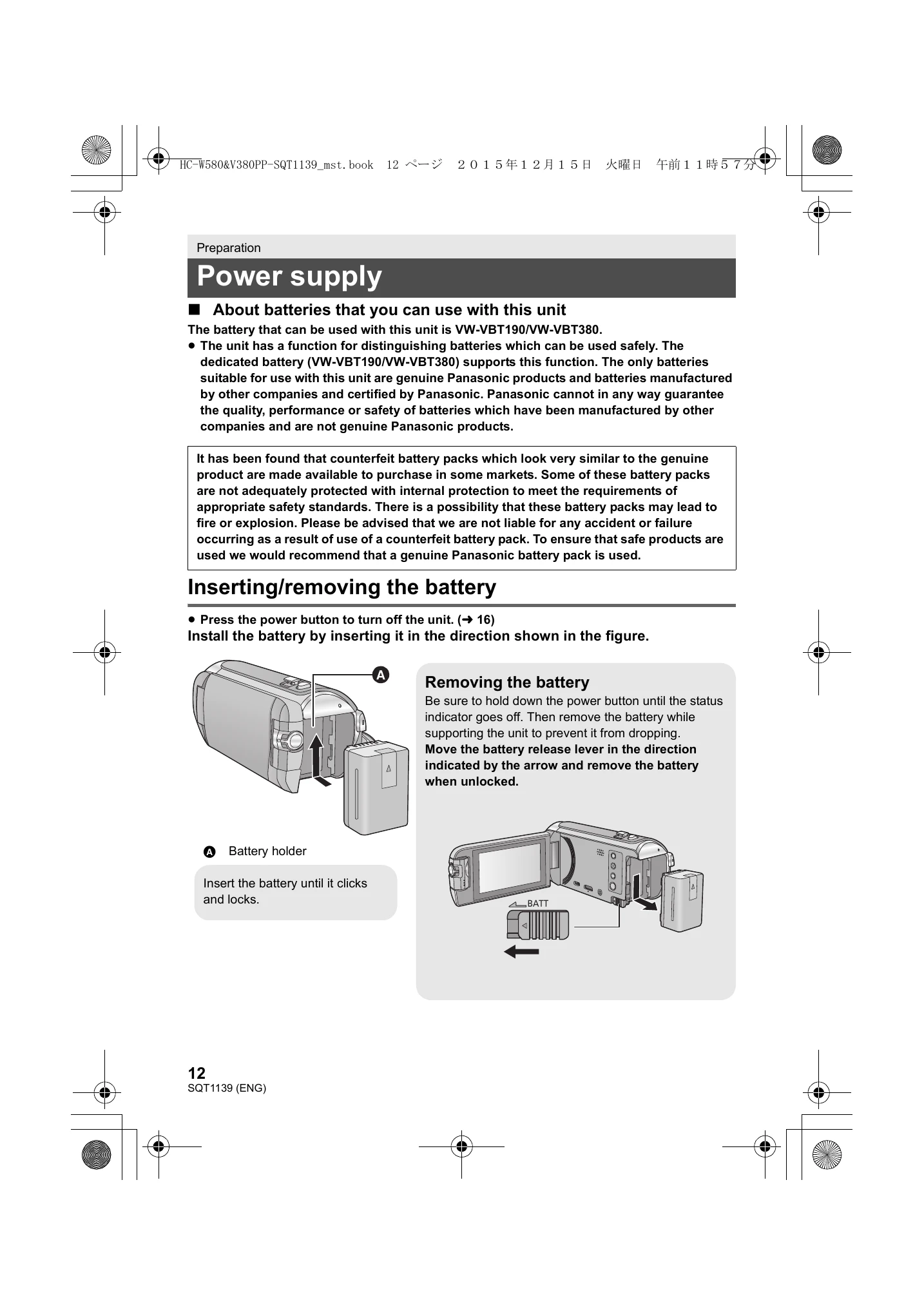

  • Inserting/removing the battery (p. 12)
    • \n
  • Charging the battery (p. 13)
    • \n
  • Charging and recording time (p. 14)
    • \n
\n

Recording to a card

\n
    \n
  • Cards that you can use with this unit (p. 15)
    • \n
  • Inserting/removing an SD card (p. 16)
    • \n
\n

Turning the unit on/off

\n
    \n
  • Turning the unit on and off (p. 16)
    • \n
\n

Selecting a mode

\n
    \n
  • Switching between Recording and Playback Modes (p. 17)
    • \n
  • Switching between Motion Picture and Still Picture Recording Modes (p. 17)
    • \n
\n

How to use the touch screen

\n
    \n
  • Touch operations (p. 18)
    • \n
  • Slide operations (p. 18)
    • \n
\n

Setting date and time

\n
    \n
  • Setting the clock (p. 19)
    • \n
\n

Setting your home region

\n
    \n
  • Setting the home region for the first time (p. 20)
    • \n
\n

Basic

\n

Changing the Recording Mode

\n
    \n
  • Selecting recording modes (p. 20)
    • \n
\n

Recording motion pictures

\n
    \n
  • Starting and stopping recording (p. 21)
    • \n
\n

Recording still pictures

\n
    \n
  • Taking still pictures (p. 22)
    • \n
\n

Recording with the Sub Camera

\n
    \n
  • Using the Sub Camera (Twin Camera) for the HC-W580 (p. 22)
    • \n
\n

Troubleshooting and error codes

Problem Check points
A clicking sound is heard when the unit is shaken. This is the sound of the lens moving and is not a defect. This sound will no longer be heard when the unit is turned on and set this unit to the Motion Picture Recording Mode or Still Picture Recording Mode.
Object seems to be warped. Object seems to be warped slightly when the object moves across the image very fast, but this is because the unit is using MOS for the image sensor. This is not a malfunction.
The lens or LCD monitor fog up. This is due to condensation. It is not a malfunction. Please refer to page 8.
Power
This unit cannot be turned on. Charge the battery again to ensure it is sufficiently charged. (→13)
This unit does not stay on long enough. In cold places, the battery using time becomes shorter. The battery has a limited life. If the operating time is still too short even after the battery is fully charged, the battery has worn out and needs to be replaced.
Battery runs down quickly. Remove the battery or AC adaptor, wait about 1 minute and then reconnect the battery or AC adaptor. Then about 1 minute later, turn on the unit again. (Conducting the above operation while the media is being accessed may damage the data on the media.)
This unit cannot be operated though it is turned on. If normal operation is still not restored, detach the power connected, and consult the dealer who you purchased this unit from.
This unit does not operate normally. The unit has automatically detected an error. Restart the unit by turning the unit off and on. The unit will be turned off in about 1 minute if the unit is not turned off and on.
"ERROR OCCURRED. PLEASE TURN UNIT OFF, THEN TURN ON AGAIN." is displayed. Repair is needed if it is repeatedly displayed even if it is restarted. Detach the power connected, and consult the dealer who you purchased this unit from. Do not attempt to repair the unit by yourself.
