Brand: Panasonic
Category: Camcorder
Document Type: Manual
Language: EN
Manual for NV-GS11GN
Uploaded: Nov. 21, 2025, 6:49 p.m.
Warranty Information
No specific warranty period is mentioned in the provided pages.

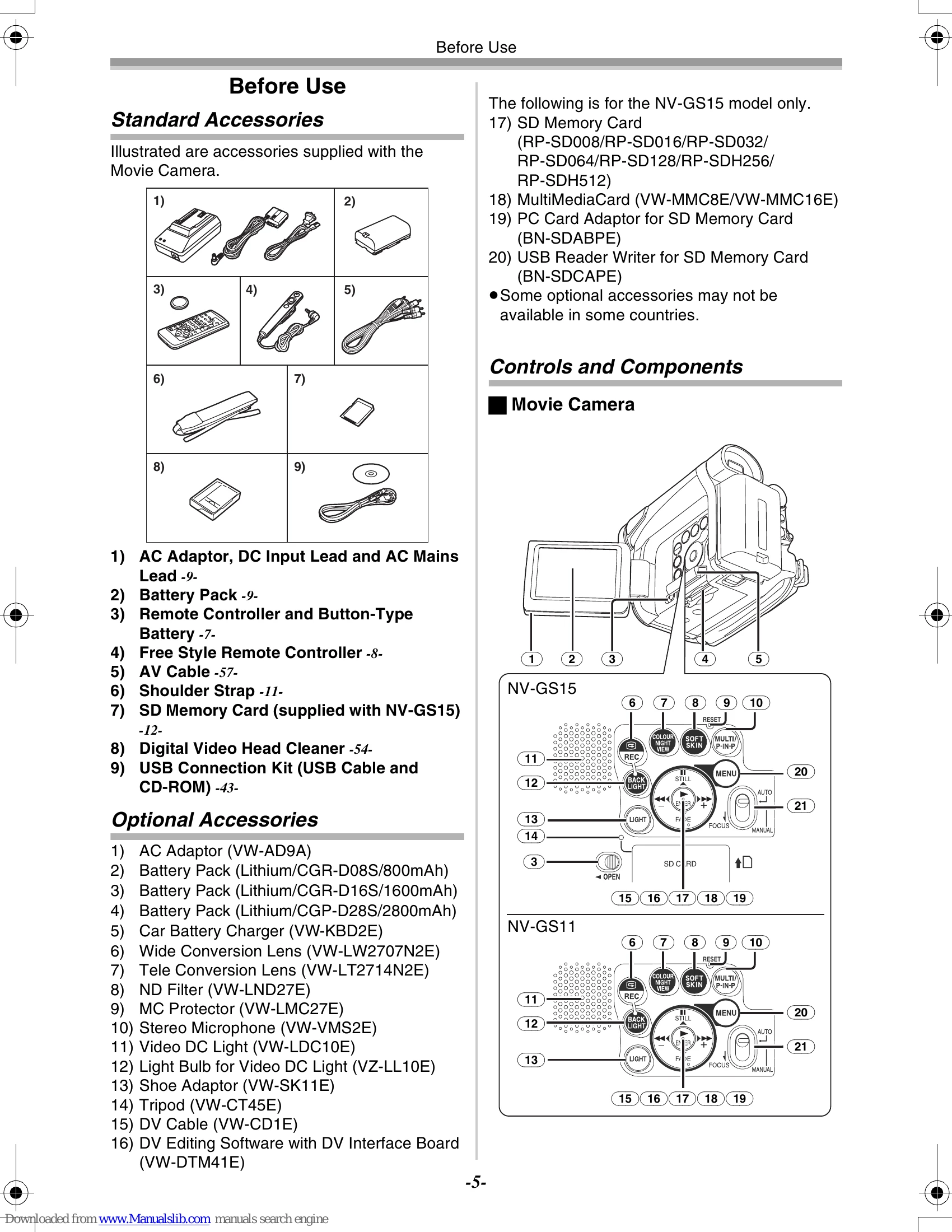

Before Use
- Standard Accessories: Check the supplied accessories.
- Controls and Components: Familiarize yourself with the camera's buttons and parts.
- Power Supply: Learn how to charge the battery using the AC adapter or car battery charger.
- Inserting a Cassette: Slide the lever, insert the cassette, and close the holder and compartment.
- Using a Card (NV-GS15 only): Insert the memory card to record pictures.
- Turning on the Movie Camera: Set the power switch to ON.
- Selecting Modes: Rotate the Mode Dial to choose between Tape Recording, Tape Playback, Card Recording, Picture Playback, or PC Mode.
- Using the Viewfinder/LCD Monitor: Adjust the viewfinder and open the LCD monitor for viewing.
- Using the Menu Screen: Navigate menus to select functions and settings.
- Setting Date and Time: Set the camera's internal clock.
- Internal Lithium Battery Recharge: Recharge the internal battery for the clock.
- LP Mode: Select LP Mode for extended recording time, with potential limitations.
- Audio Recording Mode: Choose sound quality settings.
Recording Mode
- About Recording: Set the Mode Dial appropriately for tape or card recording.
- Recording on a Tape: Turn on the camera, set the mode dial, and press the start/stop button.
- Recording Yourself: Open and rotate the LCD monitor to monitor yourself.
- Self-timer Recording: Set the self-timer for automatic recording start.
- Quick Start: Press the QUICK START button for rapid recording readiness.
- Zoom In/Out Functions: Use the zoom lever for wide-angle or close-up shots.
- Recording a Still Picture on a Tape (Photoshot) (NV-GS11 only): Press the PHOTO SHOT button to capture still images.
- Recording a Still Picture on a Card (Photoshot) (NV-GS15 only): Record still pictures onto the memory card.
- Continuous Photoshot: Capture multiple still pictures at regular intervals.
- Recording with the Built-in LED Video Light: Use the light to brighten scenes.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Power | ||
| 1: The Movie Camera power cannot be turned on. | Is the power source connected correctly? (-9-) | |
| 2: The Movie Camera power is turned off automatically. | When the Recording Pause Mode continues for more than 6 minutes, the power is turned off automatically for tape protection and power conservation. (If the AC Adaptor is used, the power is turned off only when the tape is inserted in Tape Recording Mode.) When the tape is inserted in Tape Recording Mode and if the Recording Pause Mode continues for more than 6 minutes, the power is turned off automatically. | To resume recording from this condition, turn off, then turn on the power again. (-19-) |
| 3: The Movie Camera power does not stay on long enough. | Is the Battery low? Charge the Battery or attach a fully charged Battery. (-9-) | |
| Has condensation occurred? Wait until the Condensation Indication disappears. (-53-) | ||
| Battery | ||
| 1: Battery runs down quickly. | Is the Battery fully charged? Charge it with the AC Adaptor. (-9-) | |
| Are you using the Battery in an extremely cold place? In cold places, the operating time of the Battery becomes shorter. (-54-) | ||
| Has the Battery worn out? If the operating time is still too short even after the Battery is fully charged, the Battery has worn out. | ||
| 2: The Battery cannot be charged. | If the DC Input Lead is connected to the AC Adaptor, charging cannot be performed. | Disconnect the DC Input Lead. |
| Normal Recording | ||
| 1: Recording does not start although power is supplied to the Movie Camera and the Cassette is correctly inserted. | Is the accidental erasure prevention slider on the Cassette open? If it is open (set to [SAVE]), recording cannot be performed. (-12-) | |
| Is the tape wound to the end? Insert a new Cassette. (-12-) | ||
| Is the Movie Camera power turned on? (-19-) | ||
| Has condensation occurred? Wait until the Condensation Indication disappears. (-53-) | ||
