Warranty Information
The warranty covers parts for one year, CCD image sensor for six months, and labor for ninety days.

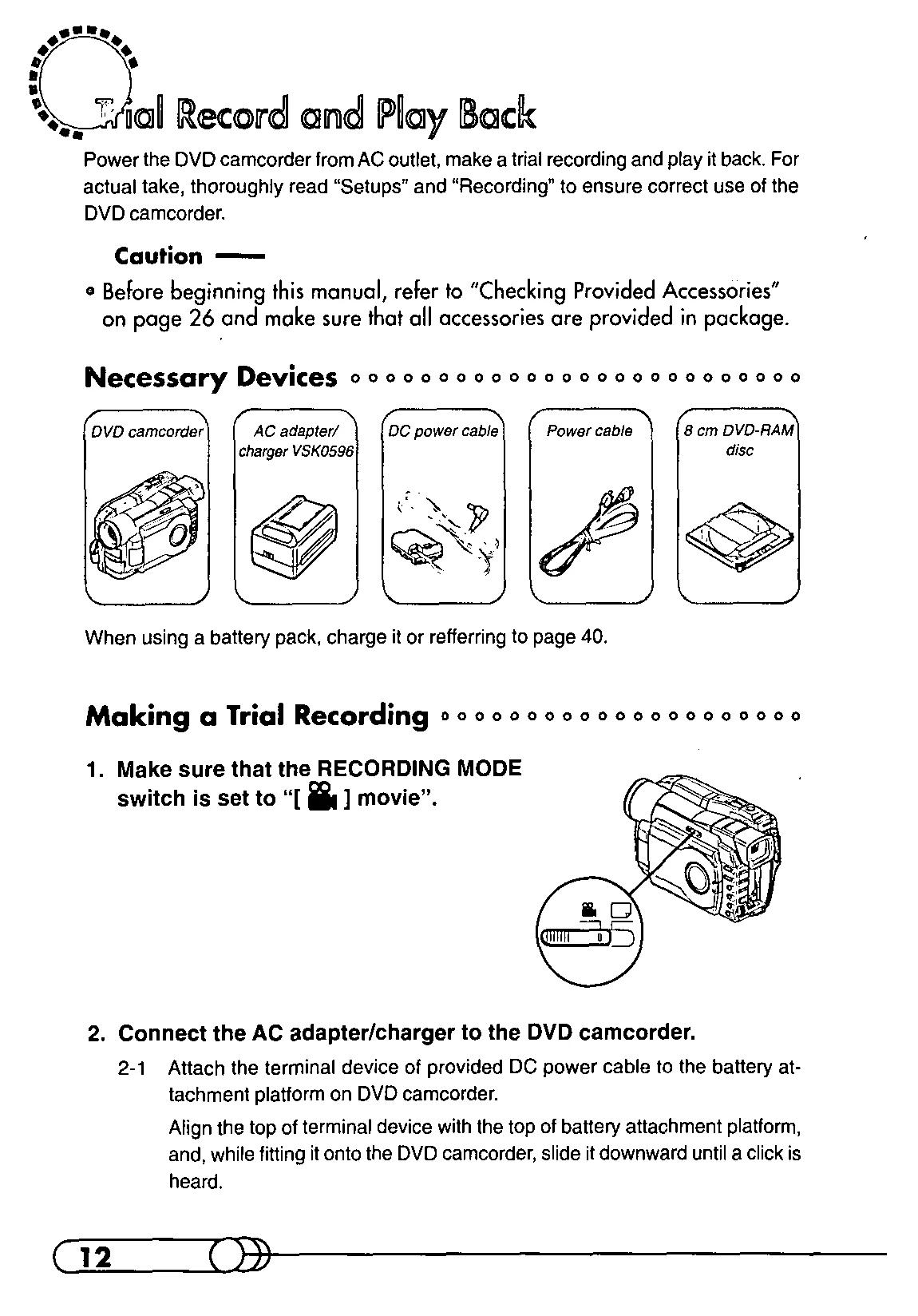

Trial Recording and Playback
- Ensure the RECORDING MODE switch is set to "movie".
- Connect the AC adapter/charger to the DVD camcorder using the DC power cable and power cable.
- Insert the DVD-RAM disc cartridge into the disc insertion block.
- Turn the DVD camcorder on.
- Set the current date and time.
- Start recording by pressing the REC button. Press REC again to stop.
- Press the button to enter playback mode.
- Press the button to stop playback.
- Turn the DVD camcorder off.
Troubleshooting and error codes
| Symptom | Check to see | Correction | Reference page |
|---|---|---|---|
| Disc cannot be removed. | Did you detach the battery or AC adapter/charger before turning the POWER switch off? | Connect the battery pack or AC adapter/charger, turn the POWER switch on and then off, and remove the disc after the disc unlocking sound is heard. | 50 |
| DVD camcorder cannot be operated from remote control. | Is the remote control pointed at the infrared receiver on DVD camcorder? | Point it at the infrared receiver to operate the DVD camcorder. | 55 |
| Is the infrared receiver on DVD camcorder exposed to direct sunlight or strong fluorescent light, etc.? | The remote control cannot operate the DVD camcorder when strong light strikes the infrared receiver. Adjust the place or angle of the DVD camcorder. | ||
| Are there batteries in the remote control? | Also check the polarities of batteries. The batteries could be dead: Try replacing them. | 54 | |
| Is the DVD camcorder powered? | Turn it on. | 59 | |
| Disc cover cannot be closed. | Is disc correctly inserted? | Remove the disc and then reinsert it. | 47 |
| Was disc inserted until it locked? | |||
| Was disc inserted from wrong direction? |
