Warranty Information
Copyright 1997 by Matsushita Electric Corporation of America. Unauthorized copying and distribution is a violation of law.

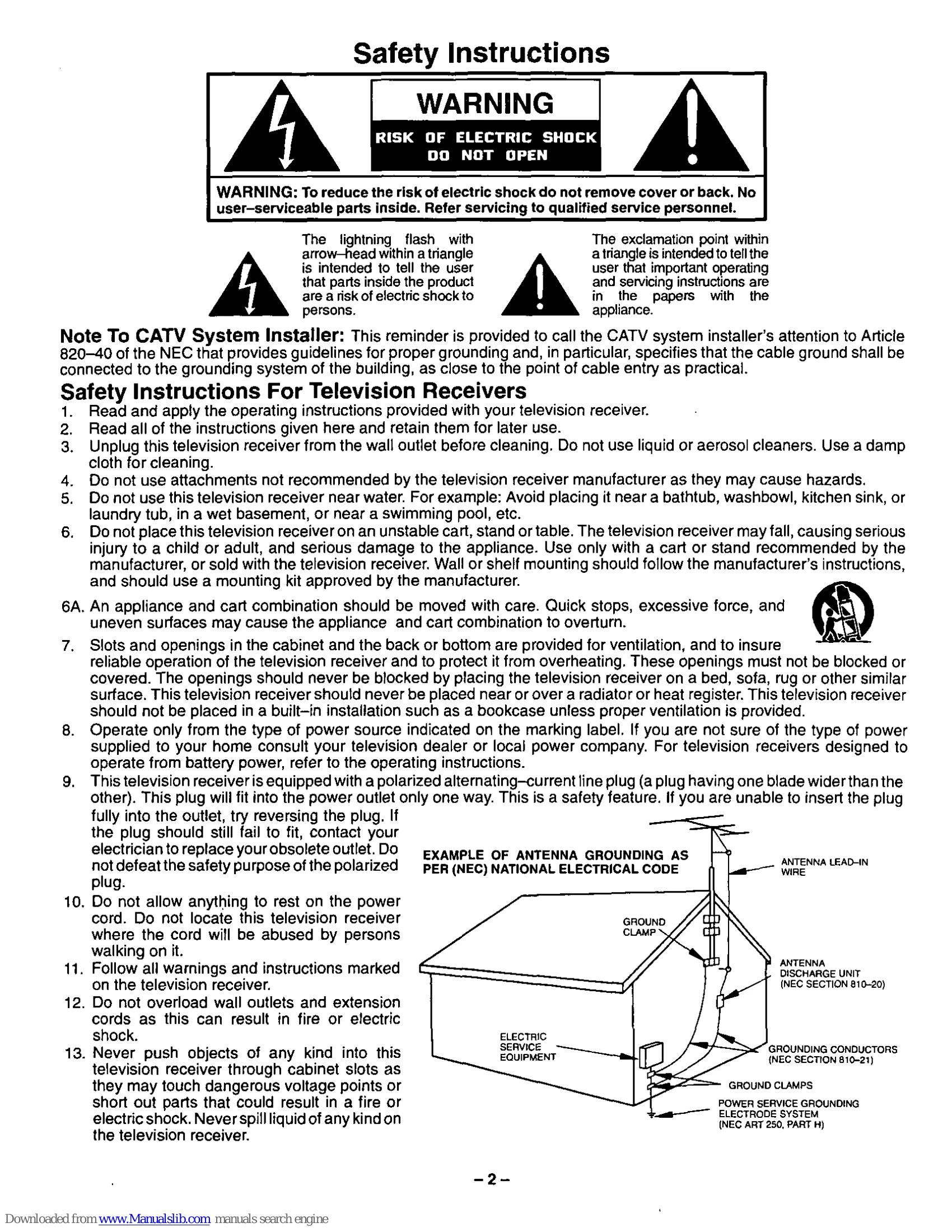

- Installation: Proper placement for viewing, ventilation, and optimal color purity. Connect external equipment using shielded cables. Follow AC power cord and remote control battery installation instructions.
- Connections: Connect antennas (VHF/UHF, Cable) and other video equipment (VCR, DVD, etc.) using appropriate cables and settings. S-Video connection is optional and overrides standard video.
- Controls and Features: Familiarize yourself with front panel controls, remote control functions (Power, Volume, Channel, TV/Video, PIP, etc.), and special functions like Multi Button, R-Tune, PIP modes, and Recall.
- Menus: Navigate Main Menu, Picture Adjustments (Picture Norm, Color, Tint, Brightness, Sharpness, Color Temp, Auto Color, Video NR), Audio Adjustments (Audio Norm, Bass/Treble/Balance, Stereo/SAP/Mono, Speaker, Spatializer, AI Sound), Input Select (Main Picture, PIP), Timer Features (Sleep Timer, Program Timer), Lockout Features, and Favorite Channel Features.
- Setup: Configure Clock (Auto/Manual), Set Day, Mode (TV/Cable), Auto Programming, Manual Programming, Auto Power On, and Closed Caption (CC On Mute, CC Mode).
- Remote Control Programming: Program the remote to control other components using known or unknown codes.
- Troubleshooting: Refer to the chart for solutions to common picture and sound issues.
Troubleshooting and error codes
| Symptoms | Picture | Sound | Check | |
| SNOWY PICTURE | NOISY SOUND | - ANTENNA LOCATION AND/OR CONNECTION - ANTENNA LEAD-IN WIRE |
||
| MULTIPLE IMAGE | NORMAL SOUND | - ANTENNA DIRECTION AND/OR LOCATION | ||
| INTERFERENCE | NOISY SOUND | - ELECTRICAL APPLIANCES, LIGHTS, CARS AND TRUCKS DIATHERMY AND OTHER MEDICAL EQUIPMENT |
||
| NORMAL PICTURE | NO SOUND | - VOLUME CONTROL SETTING - MUTE CONTROL (IF APPLICABLE) - TV SPEAKER SWITCH (IF APPLICABLE) IN OFF OR EXT POSITION - TRY ANOTHER CHANNEL |
||
| NO VIDEO | NOISY SOUND | - TV/ANT-CABLE TUNING SYSTEM SET TO PROPER SETTING - ANTENNA INPUT MODE INCORRECT |
||
| ? | - CHECK THAT AC POWER LINE IS PLUGGED INTO AC OUTLET AND POWER BUTTON IS ON - BRIGHTNESS & AUDIO CONTROLS SET PROPERLY - TRY ANOTHER CHANNEL |
|||
| NO PICTURE | NO SOUND | - COLOR CONTROL SETTINGS - TRY ANOTHER CHANNEL |
||
| NO COLOR | NORMAL SOUND | - RECEIVER IN VIDEO MODE WITH NO SIGNAL | ||
| BLUE PICTURE | NO SOUND | - CHANNEL LOCKOUT FEATURE ACTIVATED | ||
| NO VIDEO | NOISY SOUND | |||
| BLACK BOX IN PICTURE | SOUND | - CC (CLOSED CAPTION) IN TEXT MODE - PUT IN CAPTION OFF MODE TO ELIMINATE BLACK BOX |
||
