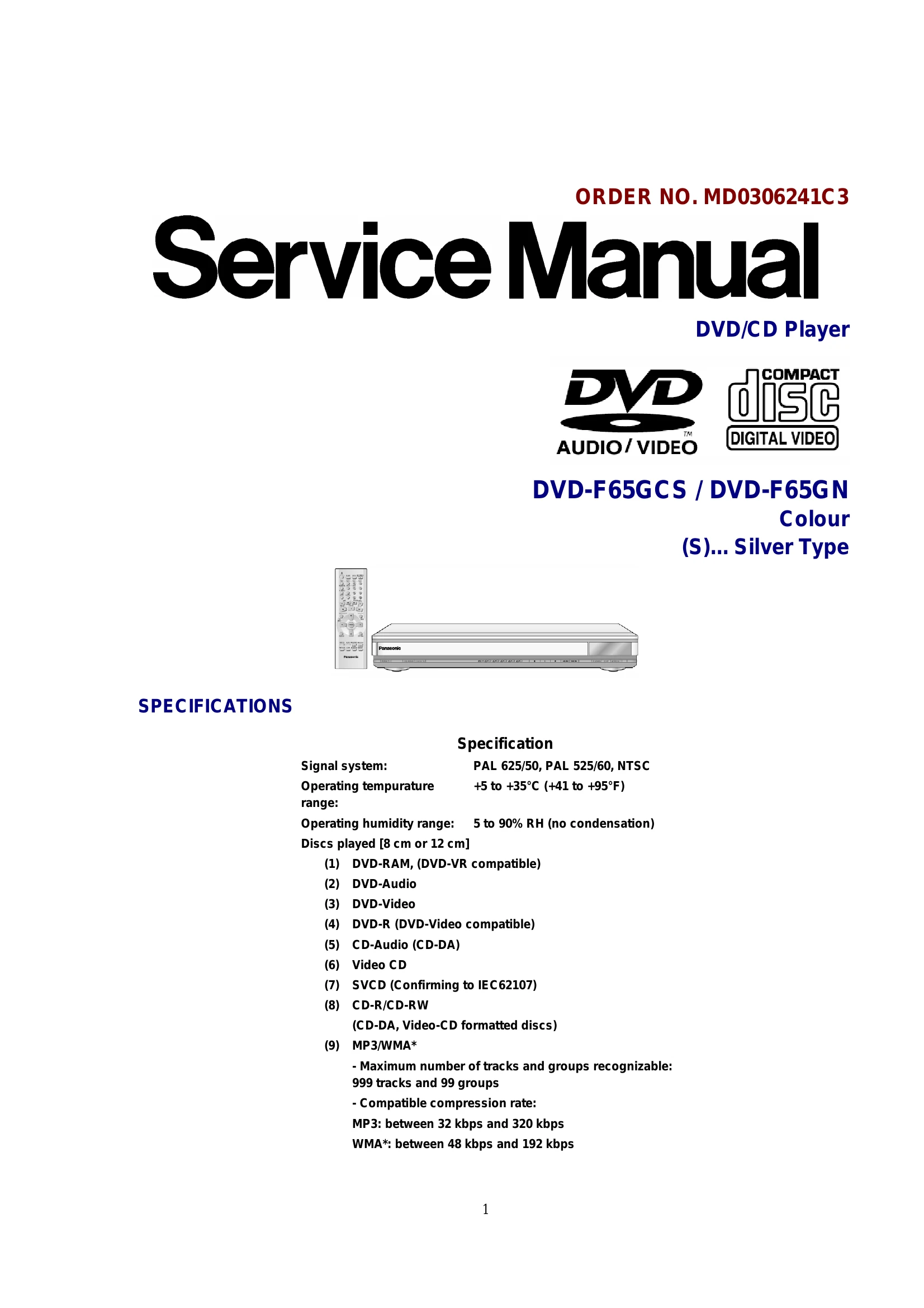

Parts/Service for DVD-F65GCS / DVD-F65GN
Uploaded: Nov. 21, 2025, 8:47 p.m.
Warranty Information
No warranty information is provided in the extracted pages.
The manual provides detailed specifications for the DVD/CD player, including signal systems, operating conditions, and supported disc types (DVD-RAM, DVD-Audio, DVD-Video, CD-Audio, Video CD, SVCD, CD-R/RW, MP3/WMA, JPEG, HighMAT). It outlines important safety precautions for servicing, such as disconnecting power, discharging capacitors, and performing leakage current checks. The document also details procedures for handling electrostatic discharge (ESD) sensitive devices, precautions for the laser diode, and handling lead-free solder. Specific sections cover troubleshooting through self-diagnosis functions, error code descriptions (F61, H15, H16, etc.), and service modes for checking and resetting laser usage times, spindle motor times, and other player functions. Instructions for replacing optical pickups and spindle motors, as well as recovery procedures after repair, are also included.
Troubleshooting and error codes
| Error Code | State, Condition | Cause, Troubleshooting |
|---|---|---|
| U. H. Error | ||
| U11 | Focus servo failure | |
| H01 | Tray loading failure | |
| H02 | Spindle servo failure | (Spindle servo, DSC, SP motor, CLV servo) |
| H03 | Traverse motor failure | |
| H04 | Tracking servo error | |
| H05 | Seek timeout failure | |
| DSC system | ||
| F500 | DSC failure | DSC stops due to servo failure. / (Startup failure, etc.) |
| F501 | DSC not Ready failure | Communication failure between DSC and computer / (No communication because it does not move) |
| F502 | DSC Time out failure | See F500. |
| F503 | DSC communication failure | Communication failure (Result failure or after communication command is trans-mitted) |
| F505 | DSC Attention Error | See F500. |
| F506 | Invalid media | Disc is placed upside down; TOC is unr- or invalid disc is inserted. |
| Disc Code | ||
| F103 | Illegal highlight position | Disc standard is possibly illegal when h- is displayed. |
| IIC Error | ||
| F4FF | Forced initialization failure (Time out) | |
| F880 | Unsuitable task number | When a message arrives from not existi- |
| F890 | A message is sent during AV task transmission | During transmission of a message to AV- |
| F891 | Unable to transmit a message to AV task | When transmission of a message to AV starts |
| F893 | FROM altered | |
| F894 | EEPROM failure | |
| F8A0 | Unsuitable message command | When transmission of a message to AV starts |
| 9.5. Error Codes Stored During No Play | ||
| F0BF | 6) Unable to replay due to physical layer identification failure | PCND_NOPLAY_PHYSICA 0x50 DriveManager 0xD0 |
| F0C0 | 8) DVD: Unable to replay due to no DVD Video/Audio/VR | PCND_NOPLAY_VIDEO 0x70 DiscManager 0xD0 |
| F0C1 | 9) DVD: Prohibited due to illegal regional code | PCND_NOPLAY_RCD 0x80 DiscManager 0xD0 |
| F0C2 | A) DVD: No replay due to PAL system | PCND_NOPLAY_PAL 0x90 DiscManager 0xD0 |
| F0C3 | B) DVD: All title replay prohibited in parental setting | PCND_NOPLAY_PTL 0xA0 DiscManager 0xD0 |
| F0C4 | C) VCD: Prohibited due to PHOTO CD format | PCND_NOPLAY_PHOTOC 0xB0 DiscManager 0xD0 |
| F0C5 | D) VCD/CD: Prohibited due to CD-ROM without CD-DA | PCND_NOPLAY_CDROM 0xC0 DiscManager 0xD0 |
