Brand: Panasonic
Category: Home Theater System
Document Type: Manual
Language: EN
Manual for DVD-S48
Uploaded: Nov. 21, 2025, 7:45 p.m.
Warranty Information
Limited warranty covers defects in materials or workmanship for 1 year parts and 90 days labor for DVD Players.
- Playback: Insert a disc or connect a USB device. Press POWER to turn on the unit. Press PLAY/PAUSE to start playback. Use navigation buttons to control playback.
- USB REC: Connect a USB device and insert an audio CD. Press USB REC to copy audio files to the USB device in MP3 format.
- Settings: Press SETUP to access the system setup menu. Navigate using arrow buttons and OK to confirm. Options include SYSTEM, LANGUAGE, AUDIO, VIDEO, and OTHER.

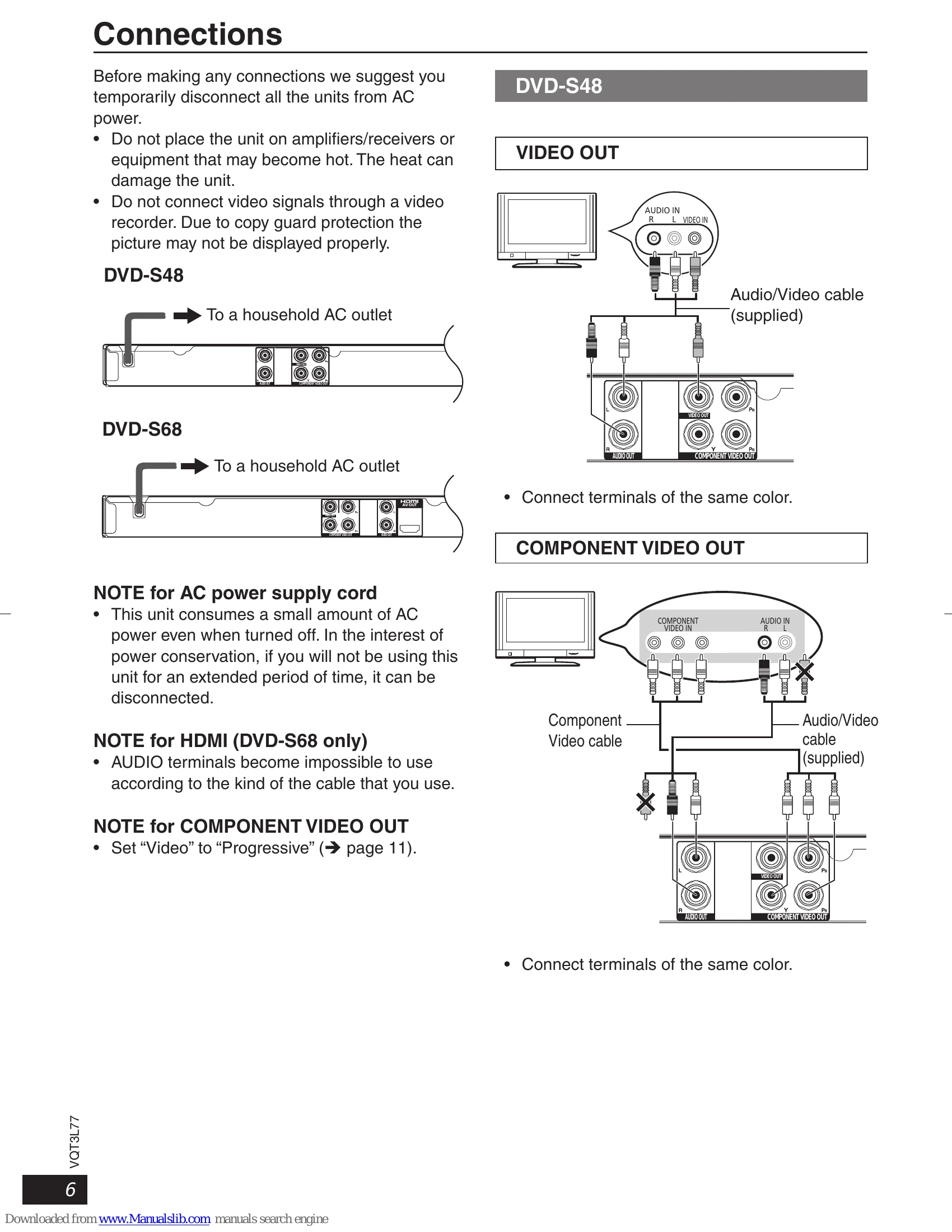

- Connections: Connect the unit to your TV using the provided Audio/Video cable or Component Video cable. Ensure terminals match in color.
Troubleshooting and error codes
| Problem | Possible Solution |
|---|---|
| Images from this DVD player do not appear on the television. | Reset the DVD player to factory defaults by pressing POWER, OPEN/CLOSE, and then holding and on the player for 5 seconds with the tray open. |
| You forget your password. | Reset the DVD player to the factory defaults. |
| No picture./No sound. | Check video connection between DVD player and TV. Turn on TV and set to the correct channel for the DVD player. |
| Remote control does not work. | Aim the remote control directly at the sensor on the front of the DVD player. |
| The screen is distorted. Noise occurs. | Check if the TV System setting is correct. |
| Discs cannot be played back. | Check for scratches or smudges on the disc. If dirty, clean the disc. |
| Not able to select some items in the setup/system menu. | Press STOP twice before selecting the setup/system menu. Depending on the disc availability, some menu items cannot be selected. |
| Messages on the unit's display: | |
| LOAD | Loading the media. Wait a moment. |
| STOP | Stopping the playback. |
| (No disc indicated) | There is no disc, or a disc that cannot be played has been inserted. |
| OPEN | The tray is open. |
| TITLE | The disc title is displayed. Press to select the title, then press OK. |
| NOUSB | There is no USB device in USB mode. |
