Brand: Panasonic
Category: Medical Equipment
Document Type: Brochure/Marketing
Language: EN

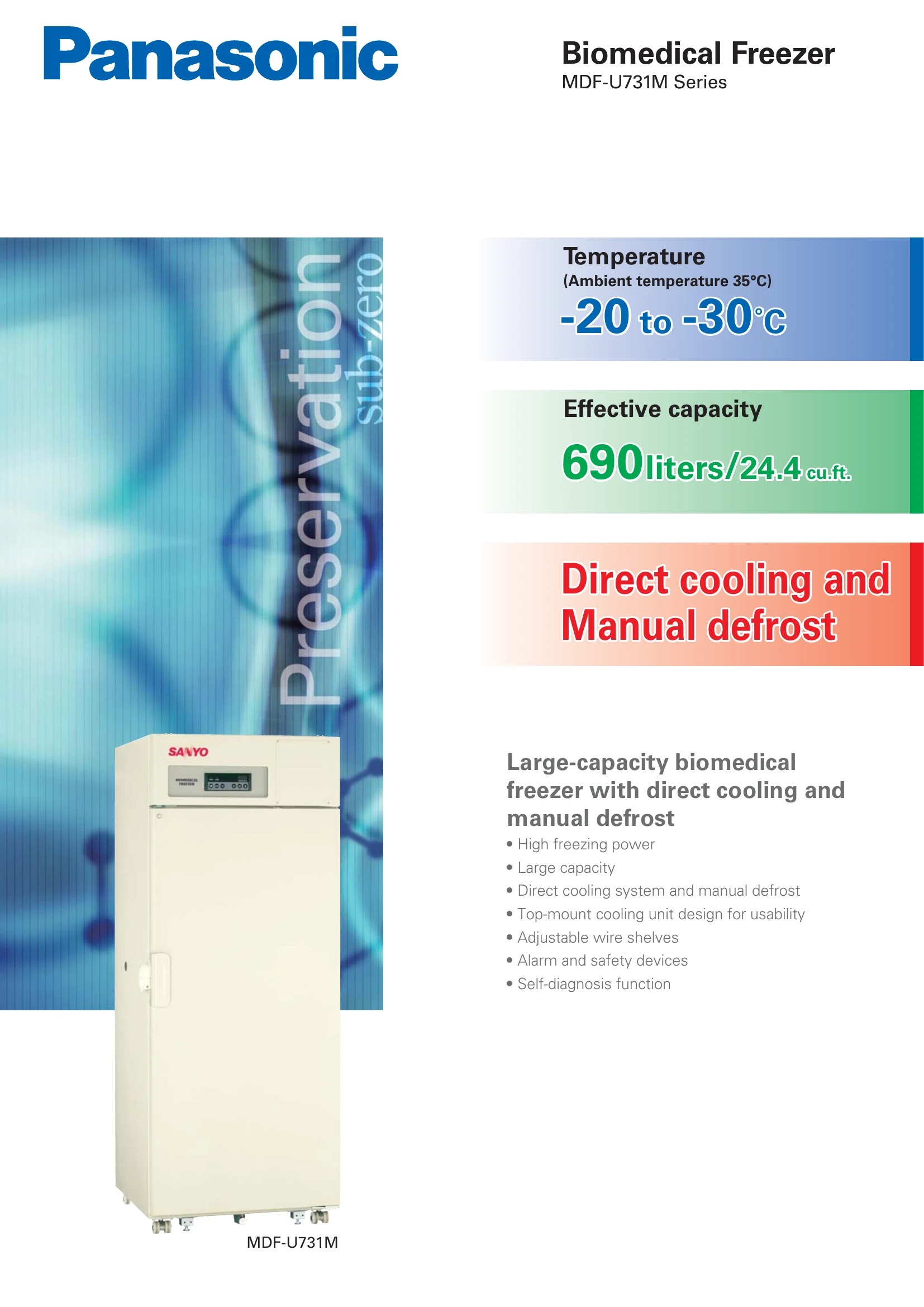

Brochure/Marketing for MDF-U731M
Uploaded: Nov. 21, 2025, 8:14 p.m.
Manual Publish Date: 2013-06-01
Warranty Information
Panasonic guarantees the product under certain warranty conditions.
Features
Stable temperature control: Microprocessor control ensures uniform temperatures regardless of ambient conditions.
Energy-saving operation: Specially designed compressor for quiet and efficient operation.
Improved security: Standard door lock and independent padlock option.
Sturdy cabinet construction: Integral foamed cabinet structure for strength and insulation.
Manual defrost: Provides stable temperature control without transient temperature increases, ideal for sensitive samples.
Movable wire shelves: Allow free position adjustment.
Troubleshooting and error codes
| Model No. | MDF-U731M-SE | MDF-U731M-SA |
| Temperature range | 230/240V, 50Hz | 115V, 60Hz |
| Maximum cooling performance | -20°C to -30°C (1°C increments) | -30°C (Ambient temperature: 35°C) |
| External dimensions (W x D x H)*1 | 770 x 830 x 1955 (mm) / 30.3 x 32.7 x 77.0 (inch) | |
| Internal dimensions (W x D x H) | 650 x 700 x 1520 (mm) / 25.6 x 27.6 x 59.8 (inch) | |
| Effective capacity | 690 liters (24.4 cu.ft.) | |
| Net weight (approx.) | 152 kg (335 lbs.) | |
| Exterior | Painted steel | |
| Interior | Painted steel | |
| Insulation | Rigid polyurethane foamed in-place | |
| Temperature control | Electronics controller | |
| Compressor | Hermetic type (400 W) | |
| Defrosting system | Manual defrost | |
| Refrigerant | HFC | |
| Shelves (max. load) | 4 adjustable wire shelves (50 kg/110 lbs.) | |
| Access port | Ø 30mm, 2 locations (left and top) | |
| Casters | 4 casters with 2 adjustable feet | |
| Alarm and safety | High/Low temperature alarm, Power failure alarm, Door alarm, Compressor temperature alarm, Self-diagnosis function, Remote alarm contact (DC30V, 2A), Memory backup | |
| Accessories | 1 scraper, 1 set of key, 2 large & 2 small nylon clips (for temperature recorder) | |
