Basic Operation Summary

This manual covers the operation of the Panasonic GSM Personal Cellular Mobile Telephone system. Key operational aspects include:

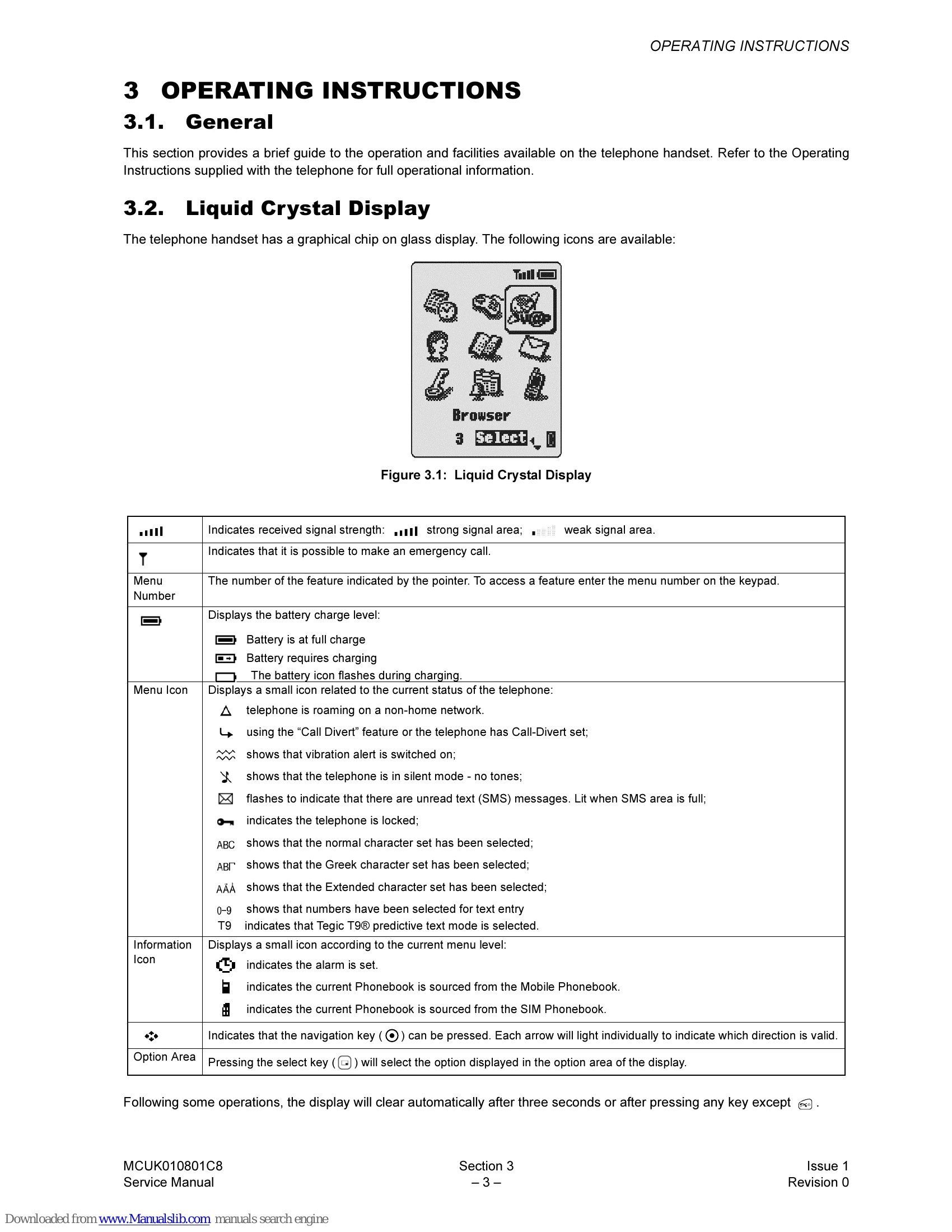

  • Liquid Crystal Display: Understanding signal strength, battery charge, and various status icons.
  • Controls: Familiarization with navigation keys, select keys, digit keys, and special function keys for call handling and menu navigation.
  • Alpha Entry: Entering alphanumeric characters using different character sets (Normal, Greek, Extended, Numeric) and the T9 predictive text mode.
  • Features Menu: Navigating through menus for personalization, games, phonebook management, messaging, call settings, applications, and scheduling.
  • Troubleshooting: Common issues like telephone not switching on, battery life problems, call failures, and error messages are addressed with potential causes and remedies.

Troubleshooting and error codes

Problem Cause Remedy
Telephone will not switch on The network in use and the condition of the battery pack can affect battery life. Check that the battery pack is fully charged and correctly connected to the telephone.
Extremely short battery life for a new battery pack The battery pack was worn out. Replace with a new one.
Short battery life for an old battery pack The life of the battery pack is affected by improper charging, this is inherent in all Ni-MH batteries. To maintain maximum performance, always use until the Low Battery Warning appears and then fully recharge the battery pack. To revive a Battery Pack, use the telephone until the Low Battery Warning appears and then fully recharge three times. However, if the battery life still is short, the battery pack has eventually worn out. Replace with a new one.
Short battery life for Ni-MH battery pack The life of the battery pack is affected by improper charging, this is inherent in all Ni-MH batteries. To maintain maximum performance, always use until the Low Battery Warning appears and then fully recharge the battery pack. To revive a Battery Pack, use the telephone until the Low Battery Warning appears and then fully recharge three times. However, if the battery life still is short, the battery pack has eventually worn out. Replace with a new one.
The battery level indicator Ÿ does not light when charging If a battery is deeply discharged it will take a short time before there is sufficient power in the telephone to light the battery level indicator Ÿ. Leave to charge for several minutes in temperatures between +5°C and +35°C.
Calls cannot be made The telephone is locked. Unlock the telephone (Menu: Security: Phone Lock).
Calls cannot be made from Fixed Dial Store Outgoing calls are barred. Disable the outgoing call barring (Menu: Security: Call Bar).
Calls cannot be made The telephone is not registered to a network. Move to a coverage area and operate the telephone after it has registered with a network.
Calls cannot be received The telephone is not switched on. Switch the telephone on.
Calls cannot be received Incoming calls are barred. Disable the incoming call barring (Menu: Security: Call Bar).
Emergency calls cannot be made The telephone is not registered to a network. Move to a coverage area and operate the telephone after it has registered with a network.
Emergency calls cannot be made User's phone is not in a GSM coverage area. Check that the antenna symbol ‘is displayed. Move to a coverage area and operate the telephone when the antenna symbol is displayed.
Telephone numbers cannot be recalled The telephone is locked. Unlock the telephone (Menu: Security: Phone Lock).
Telephone numbers cannot be recalled Fixed Dial is switched on. Switch off Fixed Dial (Menu: Security: Fixed Dial).
Telephone numbers cannot be recalled Check that SIM supports Fixed Dial Check if the Fixed Dial is switched on (Menu: Security: Fixed Dial). Check the telephone number is stored in the Fixed Dial.
