Manual for SL-S120/SL-S125
Uploaded: Nov. 21, 2025, 7:33 p.m.
Warranty Information
Offers a 1-year limited warranty on audio components and accessories/headphones for 90 days.

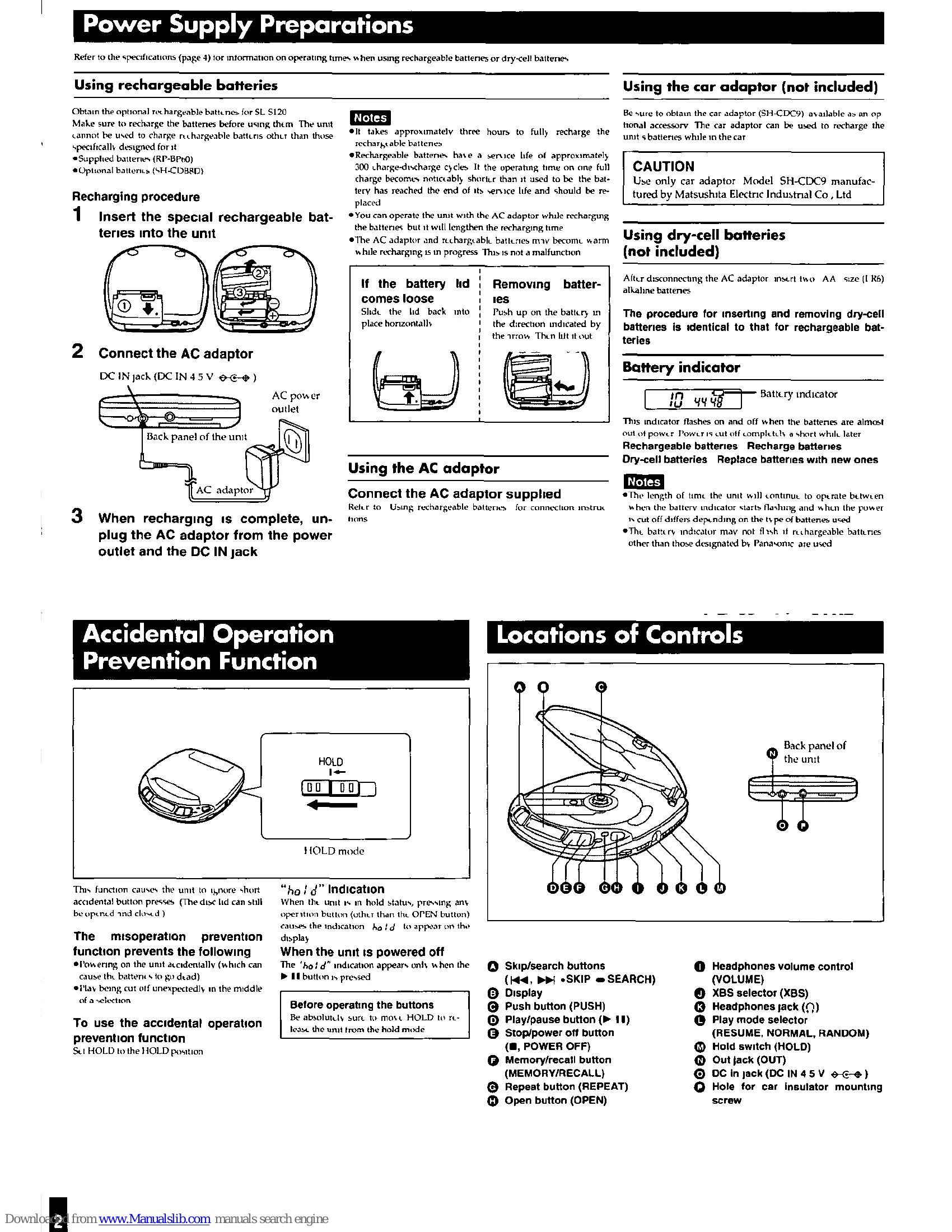

- Power Supply: Unit can be powered by AC adaptor, car adaptor (optional), or dry-cell batteries (AA x 2). Rechargeable batteries (RP-BP60 or SH-CDBBD) can also be used and recharged.
- Disc Handling: To remove a disc, open the lid and press the PUSH button. To store, place label side up. Avoid dirty or damaged discs.
- Basic Playback: Insert disc, close lid. Press PLAY (►II). Press STOP (■) to stop. Press HOLD to prevent accidental button presses.
- Playback Modes:
- Sequential Play: Plays tracks in order.
- Program Play: Allows programming up to 24 tracks in a specific sequence.
- Random Play: Plays tracks in random order.
- Resume Play: Resumes playback from where it was stopped.
- Repeat Function: Repeat one track (1) or all tracks (ALL).
- Controls: Use SKIP/SEARCH buttons to move between tracks. VOLUME controls headphone volume. XBS boosts low-range response.
Troubleshooting and error codes
| Problem | Check this |
|---|---|
| Cannot close cover | Is the disc properly secured in place? |
| Cannot play discs | Is the unit in hold status? Is the disc properly secured in place? Is there moisture condensation on the lens? (Wait for about an hour and then try again) |
| Cannot remove disc | Did you press the PUSH button to release the disc? |
| Tracks on disc do not play in order, starting with the first track | Is the RESUME, NORMAL, RANDOM (play mode selector) slider in the NORMAL position? |
| Cannot hear music - too noisy | Are the headphones/earphones plug inserted all the way? • Are the plugs dirty? |
| TV picture is distorted Radio reception is noisy | Are you using the unit body too near a TV or tuner? (If the TV or tuner is connected to a simple indoor antenna connect it to an outdoor antenna) |
