Brand: Panasonic
Category: Portable Electronics
Document Type: Parts/Service
Language: EN
Parts/Service for SL-VP48
Uploaded: Nov. 21, 2025, 7:33 p.m.
Warranty Information
This service information is designed for experienced repair technicians only and not for the general public.
Operation Summary

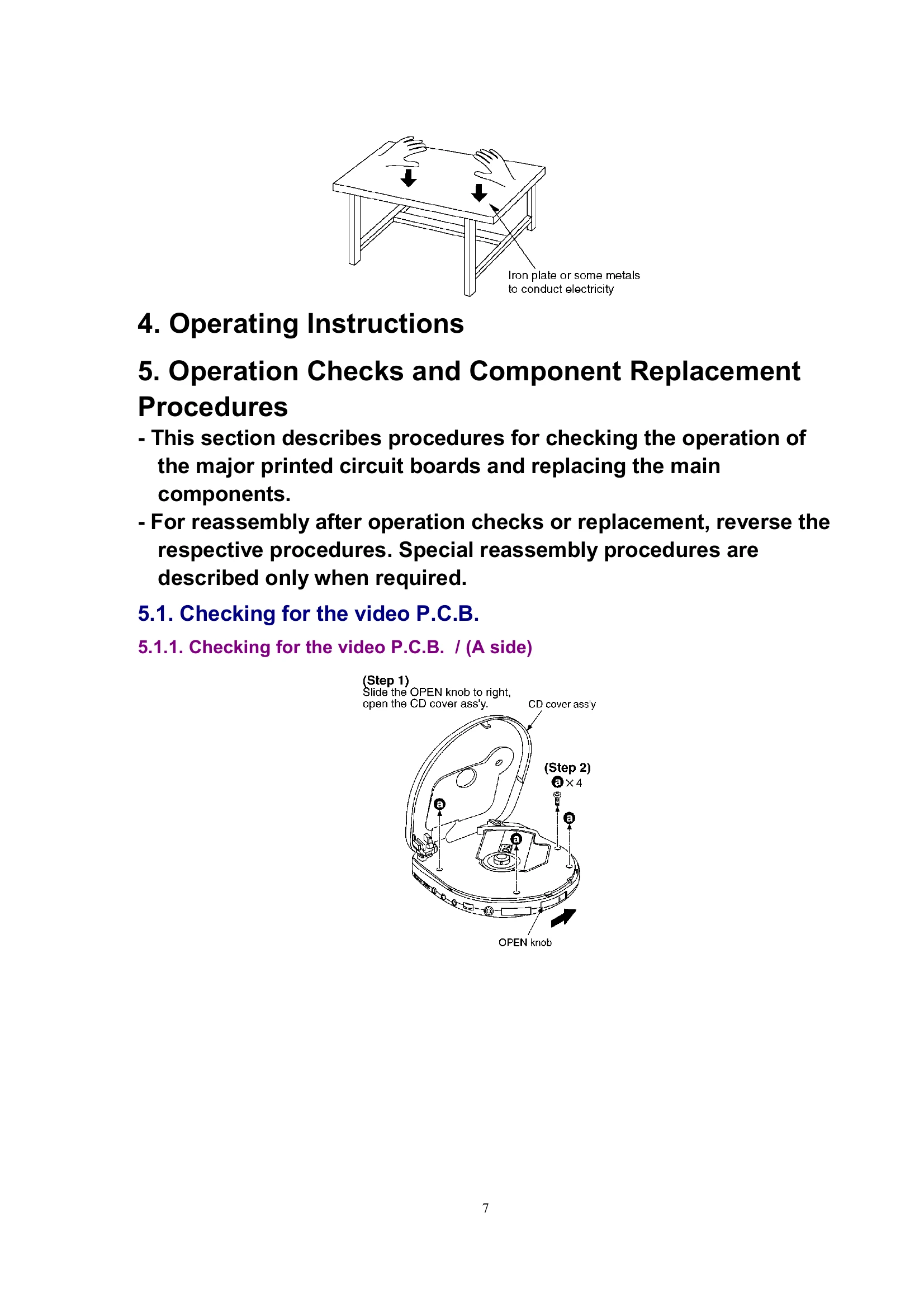

This manual provides detailed service information for the Panasonic Portable Video CD Player models SL-VP48, SL-VP43, and SL-VP33. It covers specifications, accessories, precautions for the laser diode and traverse deck, operation checks, component replacement procedures for various parts like P.C.B.s, CD cover, traverse motor, and optical pickup. It also includes information on self-diagnostic functions, troubleshooting the traverse deck, and automatic adjustment results display.
Troubleshooting and error codes
| (Procedure No.) | (Checking Points) | (Cause) | (Testing Procedure) |
|---|---|---|---|
| 1. | Is focus search executed? (Check if lens moves up and down) | Broken or shorted focus coil. | Check if conductance on both ends of coil with the tester at about 15 ohms. (The lens will slightly move up and down during the checking.) |
| 2. | Does the laser turn on? (If it does, the turntable will rotate) | LD deterioration, or the position of the turntable is very low and make contact with the motor. | • RF signal at the RF test point is over 0.4 Vp-p. • Check if the position of the turntable is not very low and does not made contact with the motor. |
| 3. | Tracking ON. | Broken or shorted tracking coil. | Check if conductance on both ends of coil with the tester at about 15 ohms. (The lens will slightly move to the right or left during the checking.) |
| 4. | Confirm RF signal output. | Faulty PD. (PHOTO DETECTOR) | Check if the output is minimum 0.4 Vp-p at the test point. |
| Traverse deck (optical pickup) is normal. | *Replace the traverse deck. | ||
| • Check electrical circuit. • Check for flaws on disc or if it is wrapped or not centerd. |
