Operation Summary: Panel Exchange

This manual details the steps for exchanging the panel of a Panasonic TH-103PF9EK television. The process involves several key stages:

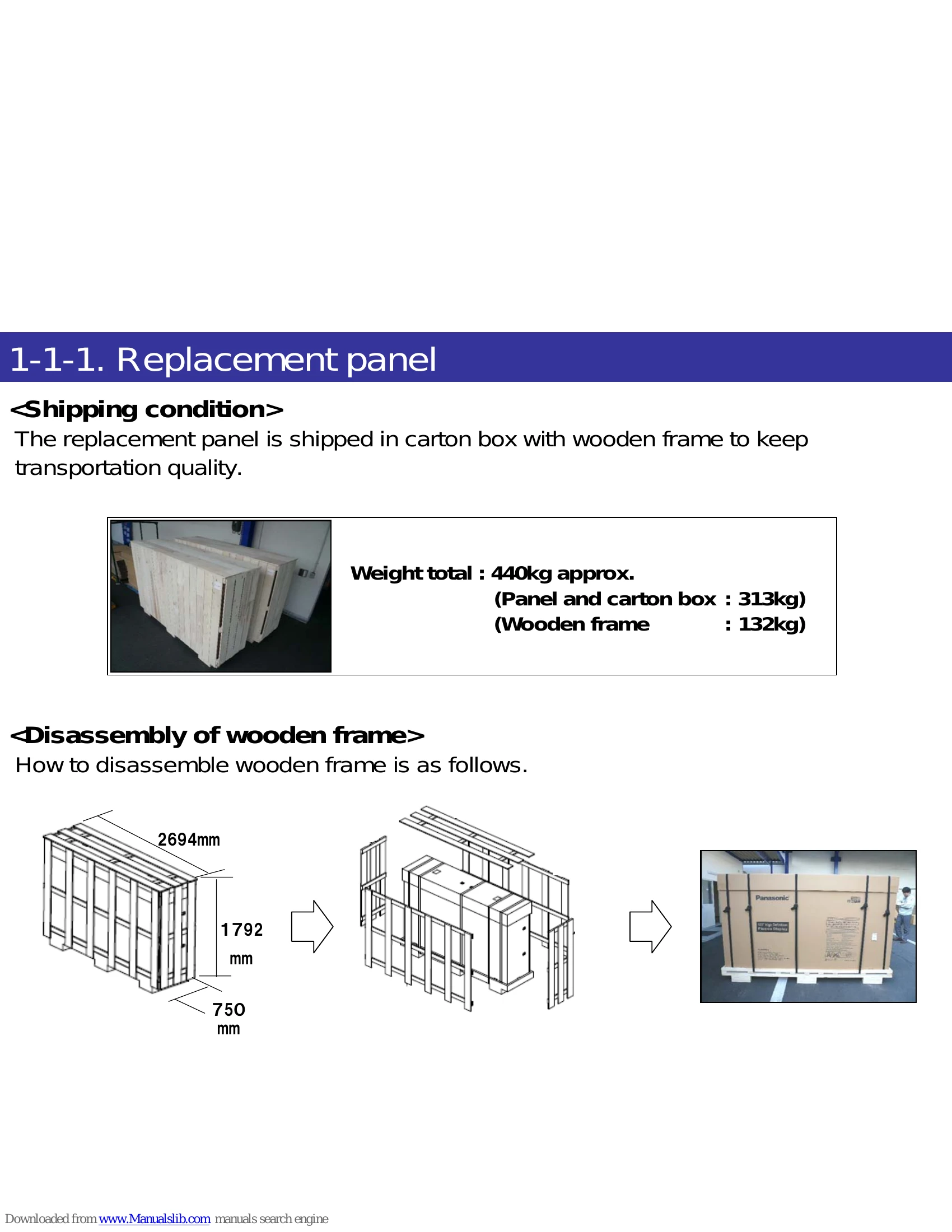

• Step 1: Preparation - Gather the replacement panel, lifting equipment (crane/lift), and stands.
• Step 2: Moving the Panel - Carefully move the panel to its designated stand, whether for customer use or wall mounting. Specific procedures are outlined for both scenarios, emphasizing the use of appropriate stands and lifting gear.
• Step 3: Escutcheon Replacement - Transfer the original escutcheon from the defective panel to the replacement panel. Caution is advised to avoid damaging flexible cables.
• Step 4: PCB Replacement - Swap necessary PCBs from the defective panel to the replacement panel. A warning is included about discharging voltage before handling PCBs.
• Step 5: Adjustment - Calibrate the voltage and waveform using an oscilloscope and multimeter to ensure optimal performance.

Detailed procedures and visual aids are provided for each step, focusing on safe handling and correct assembly.
