Manual for AJ-HVF20P

Features

• The high-resolution CRT delivers superb picture sharpness, making focusing easier.
• The low-flare CRT makes the screen clear and easy on the eyes.
• The large eyepiece aperture makes it possible to see the screen even when holding the viewfinder at some distance from your eye.
• The eyepiece is easily detachable.
• Easy, one-touch left-right and forward-backward position adjustment.

Specifications

Power supply: DC 12 V (supplied by camera)

Power consumption: 3.3 W (AJ-HVF20P), 3.8 W (AJ-HVF27P)

Picture tube: 2-inch high-resolution monochrome picture tube

Image system: 1080 lines, 59.94 Hz (AJ-HVF20P), 720 lines, 59.94 Hz (AJ-HVF27P)

External adjustment controls: Controls (BRIGHT, CONTRAST, PEAKING), Switches (TALLY HIGH/OFF/LOW, ZEBRA ON/OFF)

Allowable temperature range: 32°F to 104°F (0°C to 40°C)

Allowable humidity range: 85% or less (no condensation)

External dimensions (W×H×D): 9 1/2″×3 3/16″×8 1/8″ (240×80×206 mm)

Weight: 2.112 lb (960 g)

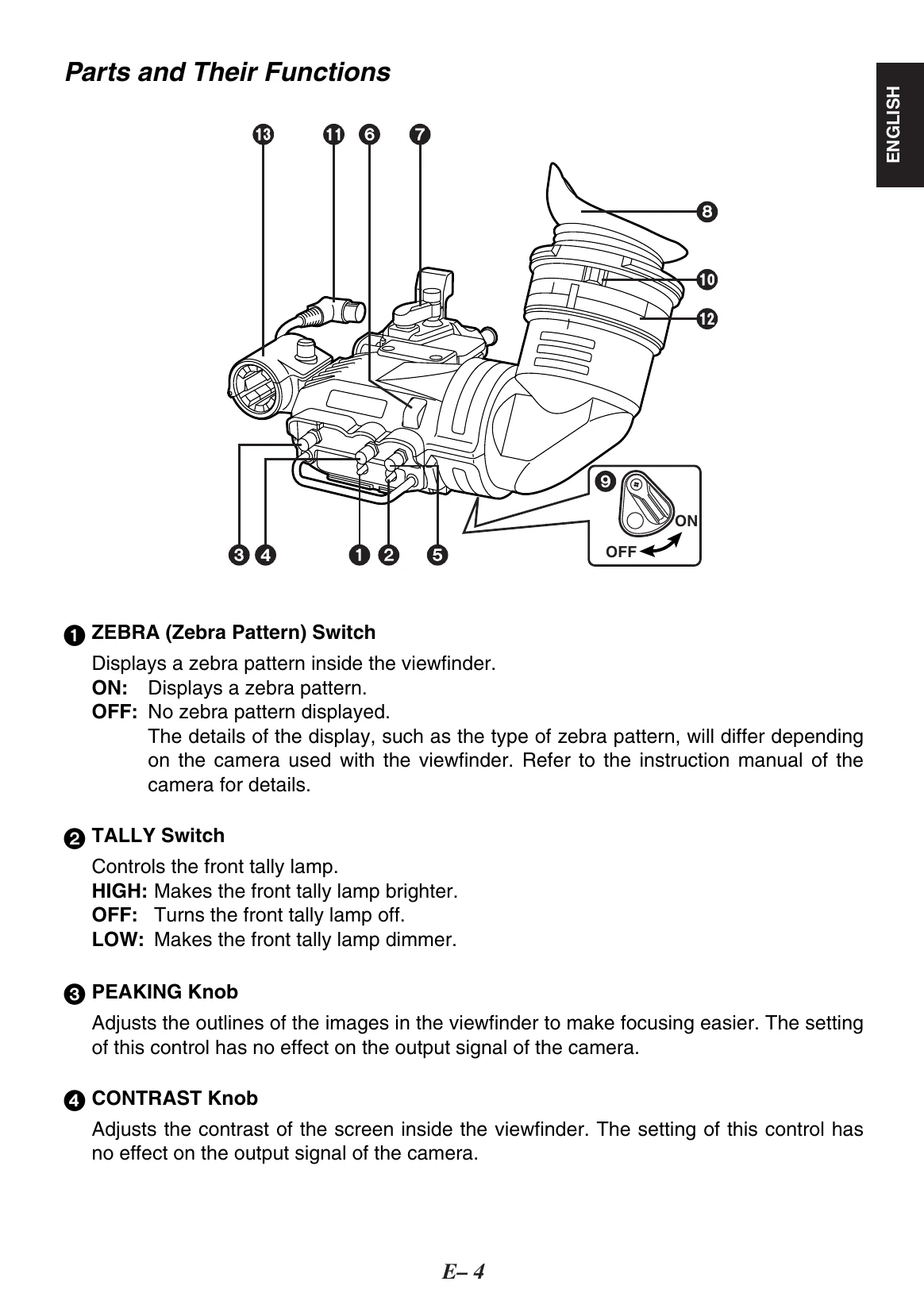

Parts and Their Functions

Includes descriptions and illustrations of various parts like ZEBRA Switch, TALLY Switch, PEAKING Knob, CONTRAST Knob, BRIGHT Knob, Front Tally Lamp, Viewfinder Position Clamp Lever, Eyepiece, Back Tally Lamp, Diopter Adjustment Ring, Connection Plug, Lock Ring, and Microphone Holder.

Adjusting the Viewfinder

Instructions are provided for adjusting the mounting height, mounting and detaching the viewfinder, position adjustment, diopter adjustment, screen adjustment, and detaching/remounting the eyepiece.

Mounting the Microphone

Steps to install the AJ-MC700P microphone kit are detailed, including opening the holder, mounting the microphone, and plugging in the cable.
