Preparation

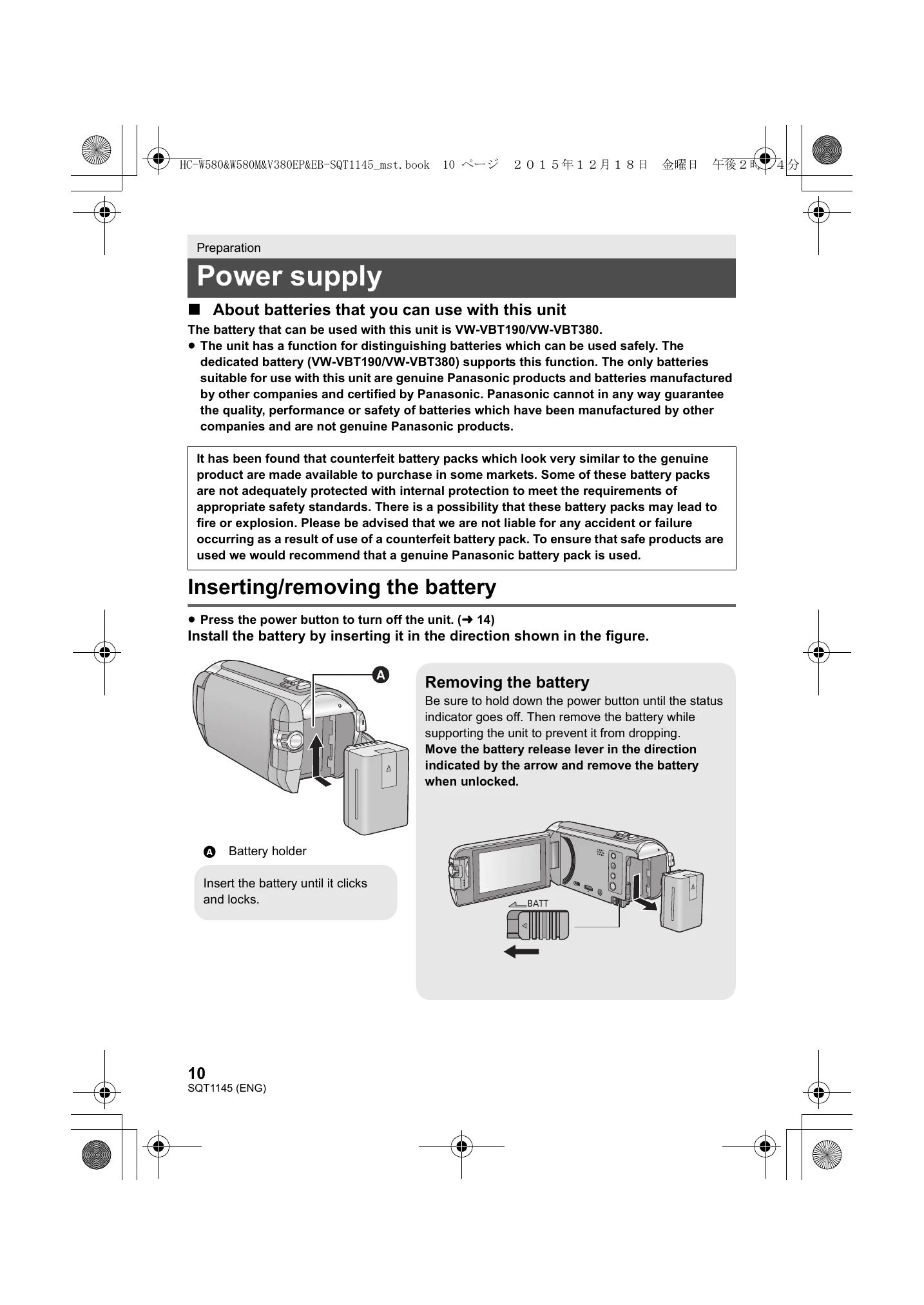

  • Power supply: Install and remove the battery, charge the battery, and understand charging/recording times.
  • Recording to a card: Learn about compatible SD cards, speed class ratings, inserting/removing SD cards, and formatting.
  • Turning the unit on/off: Use the power button or LCD monitor to operate the camera.
  • Selecting a mode: Switch between Recording Mode (Motion Picture/Still Picture) and Playback Mode.
  • Touch screen operation: Learn how to touch, slide, and use operation icons.
  • Setting date and time: Configure the clock and home region.

Basic Operations

  • Selecting media: Choose between SD card and built-in memory for recording.
  • Changing Recording Mode: Select from Intelligent Auto, Creative Control, Scene Mode, Manual, and HDR Movie.
  • Recording motion pictures: Start/stop recording using the dedicated button or icon.
  • Recording still pictures: Use the shutter button to capture images.
  • Recording with Sub Camera: Use the Twin Camera function for simultaneous recording.
  • Using the zoom: Control zoom using the lever or buttons.

Wi-Fi Functions

  • Remote Ctrl: Set up direct Wi-Fi connection or via an access point to control the camera with a smartphone.
  • Wireless Twin/Multi-Camera: Record from smartphones simultaneously with the main camera.

Troubleshooting and error codes

Problem Check points
A clicking sound is heard when the unit is shaken. This is the sound of the lens moving and is not a defect. This sound will no longer be heard when the unit is turned on and set this unit to the Motion Picture Recording Mode or Still Picture Recording Mode.
Object seems to be warped. • Object seems to be warped slightly when the object moves across the image very fast, but this is because the unit is using MOS for the image sensor. This is not a malfunction.
The lens or LCD monitor fog up. This is due to condensation. It is not a malfunction. Please refer to page 5.
Problem Check points
This unit cannot be turned on. Charge the battery again to ensure it is sufficiently charged. (→11)
This unit does not stay on long enough. Battery runs down quickly. • In cold places, the battery using time becomes shorter. • The battery has a limited life. If the operating time is still too short even after the battery is fully charged, the battery has worn out and needs to be replaced.
This unit cannot be operated though it is turned on. Remove the battery or AC adaptor, wait about 1 minute and then reconnect the battery or AC adaptor. Then about 1 minute later, turn on the unit again. (Conducting the above operation while the media is being accessed may damage the data on the media.)
This unit does not operate normally. If normal operation is still not restored, detach the power connected, and consult the dealer who you purchased this unit from.
"ERROR OCCURRED. PLEASE TURN UNIT OFF, THEN TURN ON AGAIN." is displayed. • The unit has automatically detected an error. Restart the unit by turning the unit off and on. • The unit will be turned off in about 1 minute if the unit is not turned off and on. • Repair is needed if it is repeatedly displayed even if it is restarted. Detach the power connected, and consult the dealer who you purchased this unit from. Do not attempt to repair the unit by yourself.
Problem Check points
Colour or brightness of the image changes, or you may see horizontal bars in the image. Colour or brightness of the image may change, or you may see horizontal bars in the image when the object is recorded under fluorescent light, mercury light or sodium light, etc., but this is not a malfunction. • In Motion Picture Recording Mode, record in Intelligent Auto Mode/Intelligent Auto Plus Mode or set the shutter speed to 1/100 in areas where the power supply frequency is 50 Hz, or 1/125 in areas of 60 Hz. • In Still Picture Recording Mode, this will not affect the recorded image.
The LCD monitor flickers indoors. This will not affect the recorded image.
Problem Check points
Scenes/still pictures cannot be played back. Any scenes/still pictures where the thumbnails are displayed as ! cannot be played back.
