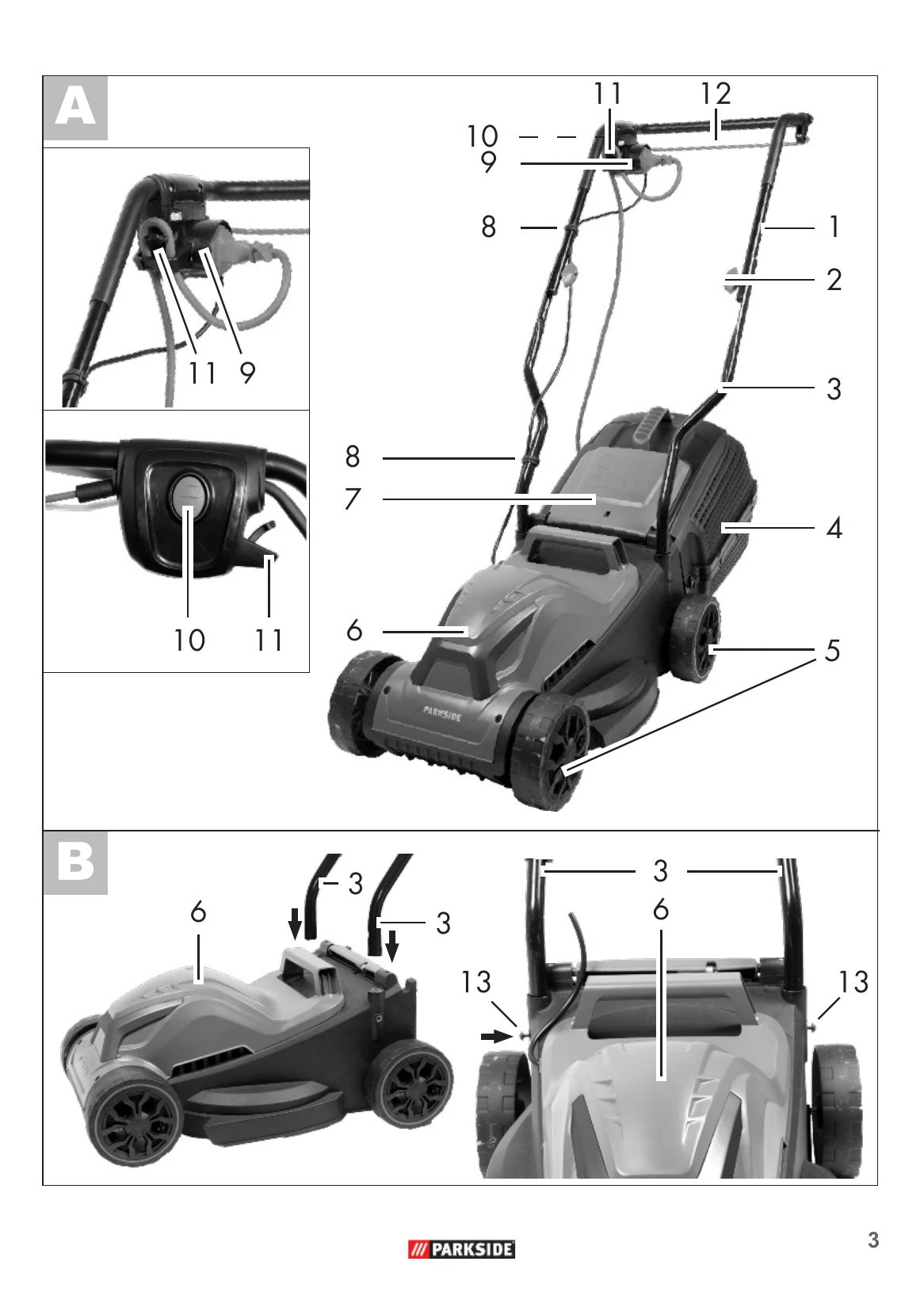

Manual for PRM 1200 A1

Manual for PRM 1200 A1

Brand: PARKSIDE

Category: Garden Tools

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:57 p.m.

Manual Publish Date: 2018-11-08

Warranty Information

The product comes with a 3-year warranty from the date of purchase.

Switching On:

  1. Plug the power cable into the socket on the handle.
  2. Create a loop with the end of the power cable and hang it in the cable strain relief.
  3. Connect the device to the mains power.
  4. Ensure the device is not touching any objects before switching on.
  5. Press the release button on the handle and simultaneously pull the start lever.
  6. Release the release button.

Switching Off:

  1. Release the start lever.

Note: The blade may continue to spin for a few seconds after switching off.

Working with the Lawnmower:

  • Mow in straight paths, overlapping slightly for a complete cut.
  • Adjust the cutting height to avoid overloading the motor.
  • Mow across slopes, not up or down.
  • Work at a walking pace.
  • Clean the device after each use.
  • Switch off and disconnect the power before transporting.

Troubleshooting and error codes

Problem Possible Cause Troubleshooting
Device does not start No mains voltage Check socket, cable, plug; if necessary, have it repaired by an electrician.
Start lever defective Repair by customer service.
Brushes worn out Repair by customer service.
Motor defective Repair by customer service.
Motor stops Grass too long Set a higher cutting height. Lightly lift the front wheels by pressing the handle.
Foreign object blockage Remove foreign object.
Cutting height too low Set a higher cutting height.
Working result unsatisfactory or motor runs heavily Blade blunt Have blade sharpened or replaced.
Blade area clogged Clean the device.
Blade incorrectly mounted Mount blade correctly.
Blade blocked by grass Remove grass.
Blade does not rotate Blade screw loose Tighten blade screw.
Abnormal noises, rattling or vibrations Blade screw loose Tighten blade screw.
Blade damaged Replace blade.
